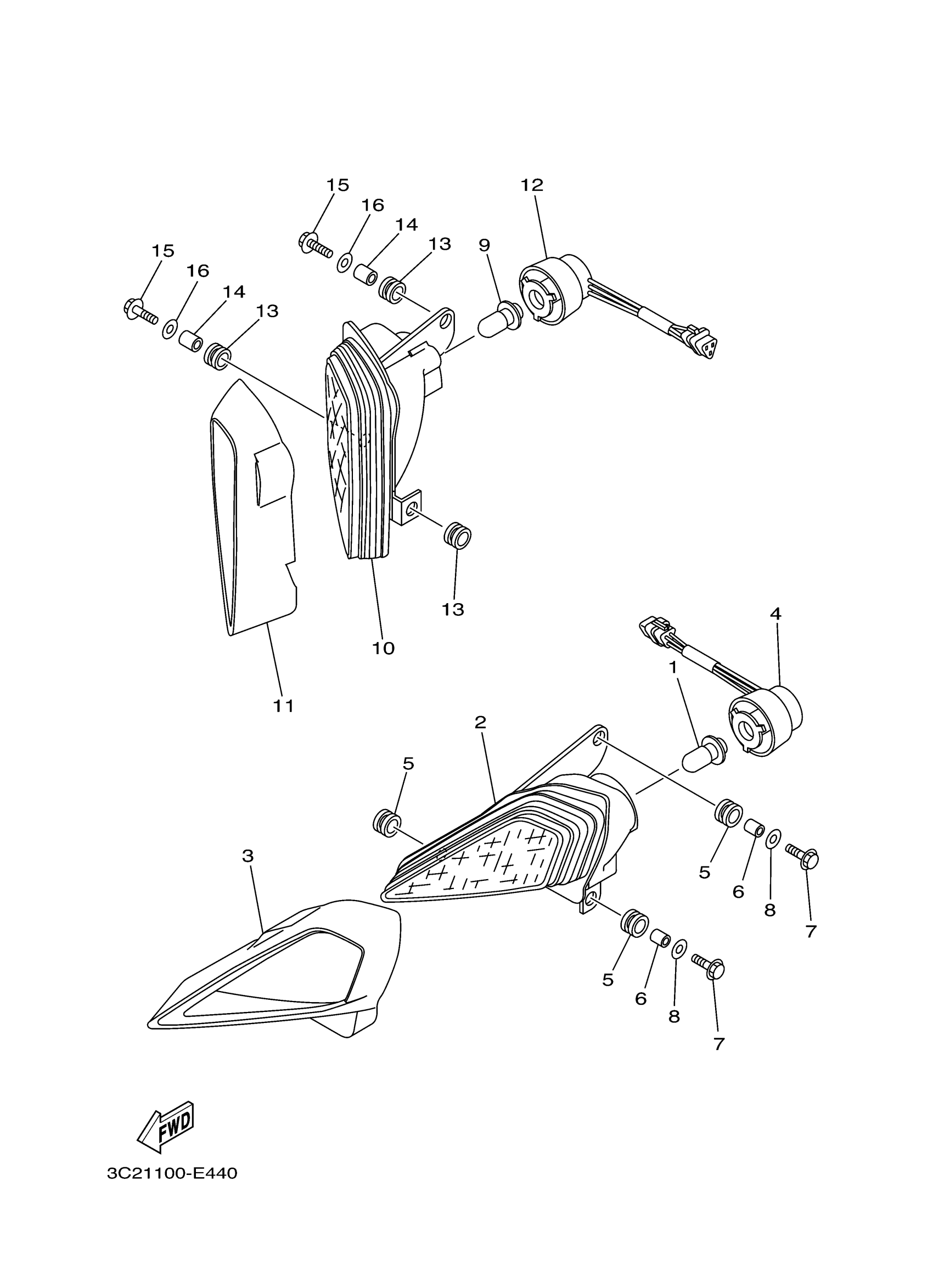

Yamaha YFM45FXYL (WOLVERINE 450 4WD) 3C2G 2009 HEADLIGHT Diagram

#

Description
Price

1

BULB, HEADLIGHT

4KB-84314-01-00

$34.68

2

HEADLIGHT UNIT ASSY

5TG-84110-03-00

$88.15

3

RIM, HEADLIGHT COVER 1

5TG-84165-01-00

$13.33

4

SOCKET CORD ASSY

5TG-84140-01-00

$33.89

5

GROMMET 839774310000

90480-14023-00

$4.34

6

COLLAR (1T2)

90387-07598-00

$4.51

7

BOLT

90101-06053-00

$4.67

8

WASHER, PLATE

90201-06078-00

$5.11

9

BULB, HEADLIGHT

4KB-84314-01-00

$34.68

10

HEADLIGHT UNIT ASSY

5TG-84310-03-00

$88.15

11

RIM, HEADLIGHT COVER 2

5TG-84166-01-00

$11.75

12

SOCKET CORD ASSY 1

5TG-84340-01-00

$40.49

13

GROMMET 839774310000

90480-14023-00

$4.34

14

COLLAR (1T2)

90387-07598-00

$4.51

15

BOLT

90101-06053-00

$4.67

16

WASHER, PLATE

90201-06078-00

$5.11
