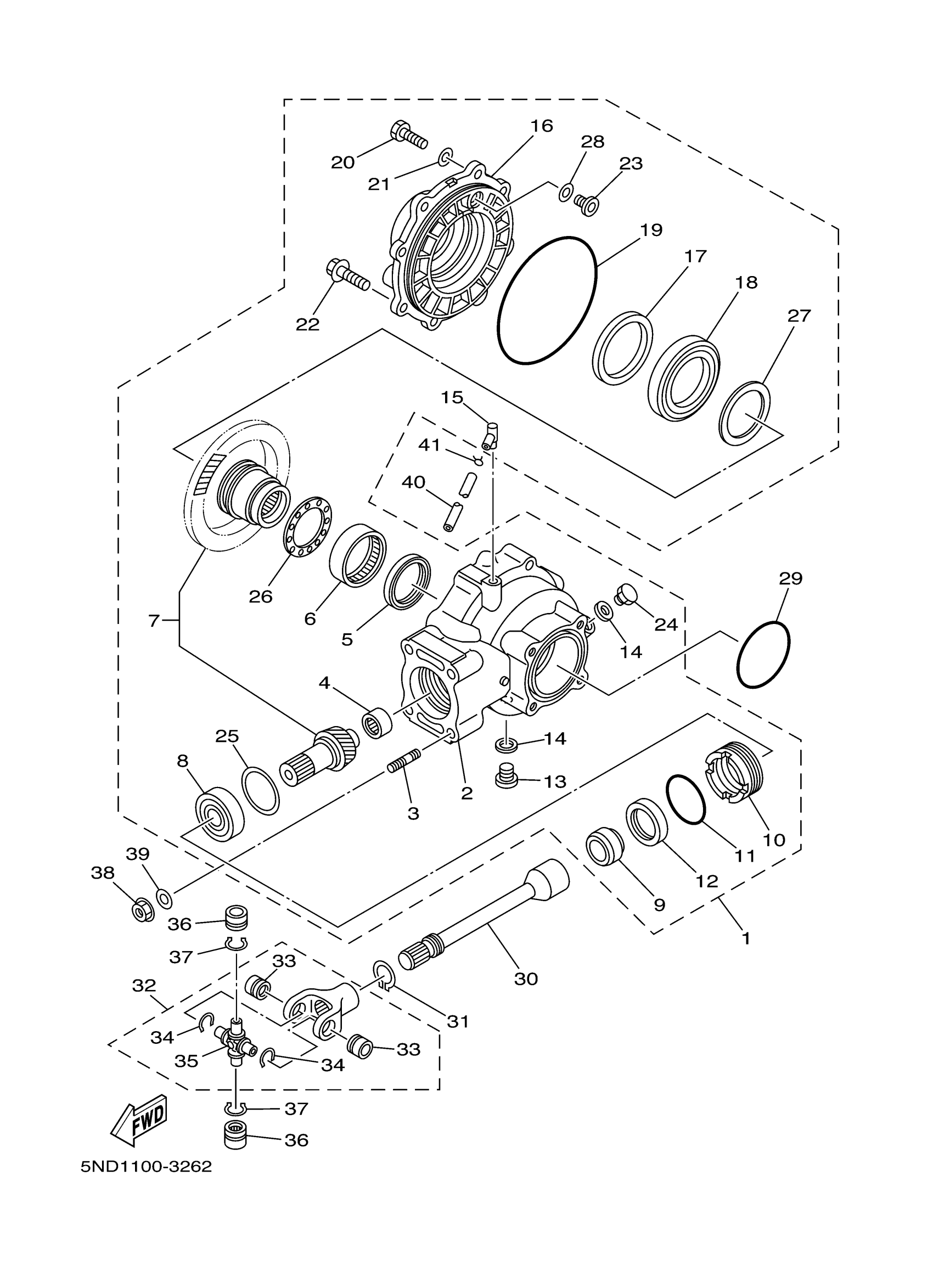

Yamaha YFM45FXYL (WOLVERINE 450 4WD) 3C2G 2009 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CAS
5ND-G6101-03-00
Unavailable
2
HOUSING, DRIVE SHA
5ND-G6151-10-00
Unavailable
3
BOLT, STUD (5E5)
90116-10361-00
Unavailable
9
COLLAR (24W)
90387-255H9-00
Unavailable
16
HOUSING, BEARING
1NS-G6152-00-00
Unavailable
17
OIL SEAL (22U)
93102-65277-00
Unavailable
18
BEARING
93316-013Y0-00
Unavailable
19
O-RING(59V)
93211-54698-00
Unavailable
20
BOLT, HEXAGON
97017-08025-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
. BOLT, FLANGE
95812-10025-00
Unavailable
23
STOPPER, RING GEAR
5FU-G6156-00-00
Unavailable
24
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
25
SHIM, THRUST (.15MM)
4XE-E7537-15-00
Unavailable
25
. SHIM, THRUST(T=030MM)
4XE-E7537-30-00
Unavailable
25
. SHIM, THRUST(T=040MM)
4XE-E7537-40-00
Unavailable
25
SHIM, THRUST (.45MM)
4XE-E7537-45-00
Unavailable
25
SHIM, THRUST (.50MM)
4XE-E7537-50-00
Unavailable
25
SHIM, THRUST (.60MM)
4XE-E7537-60-00
Unavailable
26
. SHIM, THRUST(T=10MM)
4XE-G6118-10-00
Unavailable
26
WASHER, THRUST (1.1MM)
4XE-G6118-11-00
Unavailable
26
. SHIM, THRUST(T=12MM)
4XE-G6118-12-00
Unavailable
26
WASHER, THRUST (1.3MM)
4XE-G6118-13-00
Unavailable
26
WASHER, THRUST (1.4MM)
4XE-G6118-14-00
Unavailable
26
. SHIM, THRUST(T=15MM)
4XE-G6118-15-00
Unavailable
26
WASHER, THRUST (1.6MM)
4XE-G6118-16-00
Unavailable
26
. SHIM, THRUST(T=17MM)
4XE-G6118-17-00
Unavailable
26
WASHER, THRUST (1.8MM)
4XE-G6118-18-00
Unavailable
26
WASHER, THRUST (1.9MM)
4XE-G6118-19-00
Unavailable
26
. SHIM, THRUST(T=20MM)
4XE-G6118-20-00
Unavailable
26
. SHIM, THRUST(T=21MM)
4XE-G6118-21-00
Unavailable
27
SHIM, RING GEAR (.25MM)
4XE-G6117-25-00
Unavailable
27
SHIM, RING GEAR (.30MM)
4XE-G6117-30-00
Unavailable
27
SHIM, RING GEAR (.35MM)
4XE-G6117-35-00
Unavailable
27
. SHIM, RING GEAR(T=040MM)
4XE-G6117-40-00
Unavailable
27
SHIM, RING GEAR (.45MM)
4XE-G6117-45-00
Unavailable
27
SHIM, RING GEAR (.50MM)
4XE-G6117-50-00
Unavailable
28
. SHIM, RING GEAR(T=010MM)
5FU-G6157-10-00
Unavailable
28
. SHIM, RING GEAR(T=015MM)
5FU-G6157-15-00
Unavailable
28
. SHIM, RING GEAR(T=020MM)
5FU-G6157-20-00
Unavailable
28
. SHIM, RING GEAR(T=030MM)
5FU-G6157-30-00
Unavailable
28
. SHIM, RING GEAR(T=040MM)
5FU-G6157-40-00
Unavailable
28
. SHIM, RING GEAR(T=050MM)
5FU-G6157-50-00
Unavailable
29
O-RING
93210-76800-00
Unavailable
30
SHAFT, DRIVE
5ND-G6172-10-00
Unavailable
31
CIRCLIP (537)
93410-22039-00
Unavailable
32
CROSS JOINT COMP. 3
4GB-46108-10-00
Unavailable
33
BEARING(2HR)
93399-99926-00
Unavailable
34
CIRCLIP (4X7)
93440-20088-00
Unavailable
35
SPIDER
2HR-46187-00-00
Unavailable
36
BEARING(2HR)
93399-99926-00
Unavailable
37
CIRCLIP (4X7)
93440-20088-00
Unavailable
38
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
39
WASHER, PLATE
90201-10036-00
Unavailable
40
HOSE
90445-07810-00
Unavailable
41
CLIP (1J7)
90467-07029-00
Unavailable
