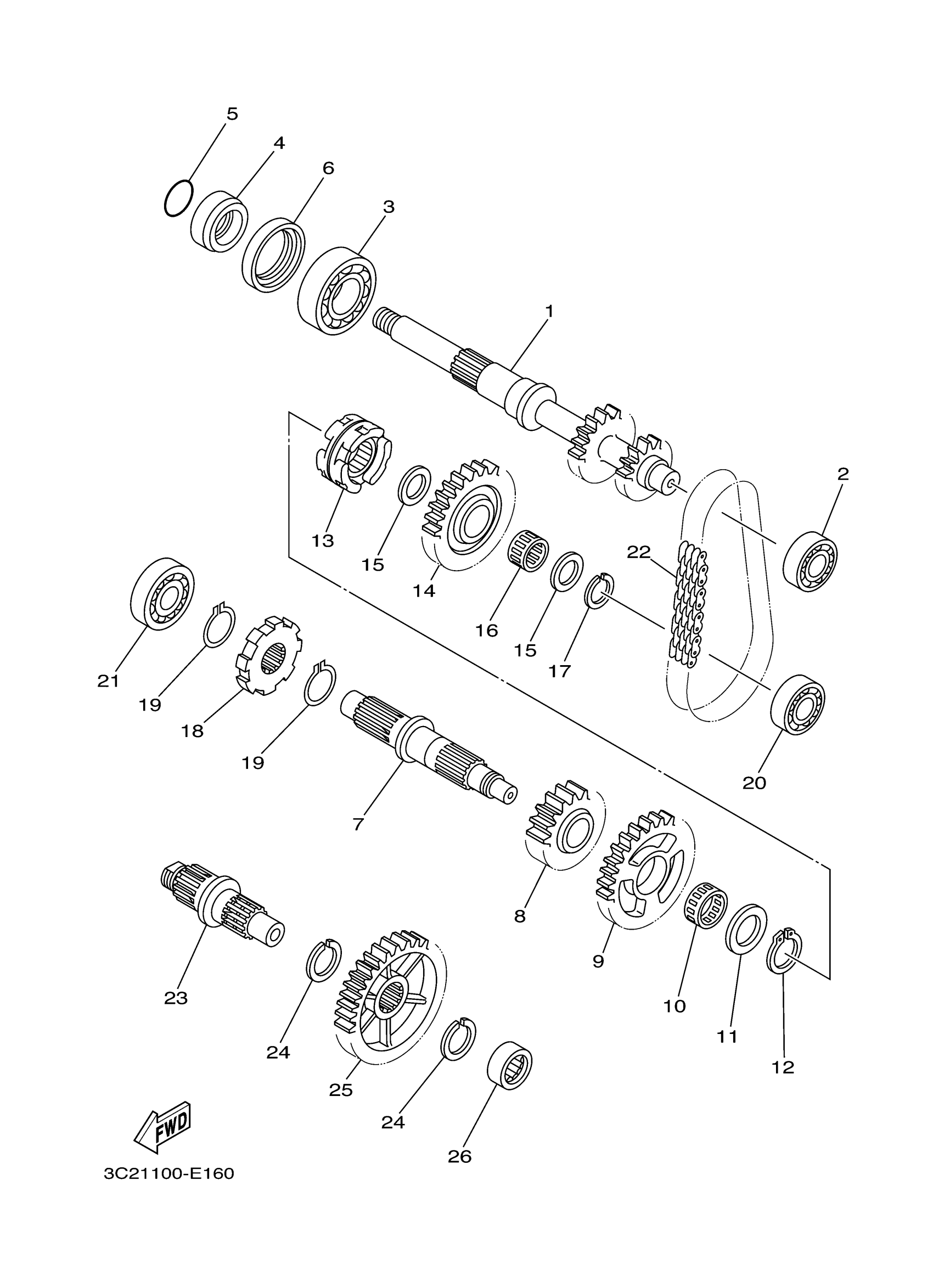

Yamaha YFM45FXXL (WOLVERINE 450 4WD) 3C2A0 2008 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, SECONDARY

5TE-17681-00-00

Unavailable

2

BEARING (7K2)

93306-00423-00

$37.99

3

BEARING (5X5)

93306-20627-00

$75.99

4

COLLAR

90387-26001-00

$40.99

5

O-RING

93210-26001-00

$5.60

6

OIL SEAL

93102-42004-00

$30.99

7

DRIVE AXLE ASSY

1P1-17402-00-00

Unavailable

8

GEAR, MIDDLE DRIVE(24T)

5GH-17582-00-00

$116.99

9

GEAR, HIGH WHEEL(38T)

5GH-17223-00-00

$161.99

10

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$34.99

11

WASHER, PLATE(8BB)

90201-250R9-00

$5.60

12

CIRCLIP (4L0)

93440-25084-00

$5.60

13

CLUTCH, DOG

1P1-17285-00-00

Unavailable

14

SPROCKET, DRIVEN

5GH-17453-10-00

Unavailable

15

WASHER PLATE 168171160000

90201-20278-00

$10.49

16

. BEARING

93310-420F2-00

Unavailable

17

CIRCLIP (525)

93410-20038-00

Unavailable

18

STOPPER

5GH-17473-00-00

Unavailable

19

CIRCLIP (4L0)

93440-25084-00

$5.60

20

BEARING

93306-30212-00

Unavailable

21

BEARING(3LD)

93306-20464-00

Unavailable

22

CHAIN

94591-54038-00

Unavailable

23

SHAFT

5ND-17523-00-00

Unavailable

24

CIRCLIP (4L0)

93440-25084-00

$5.60

25

GEAR, MIDDLE DRIVEN(39T)

5GH-17583-00-00

Unavailable

26

BEARING

93311-42077-00

Unavailable
