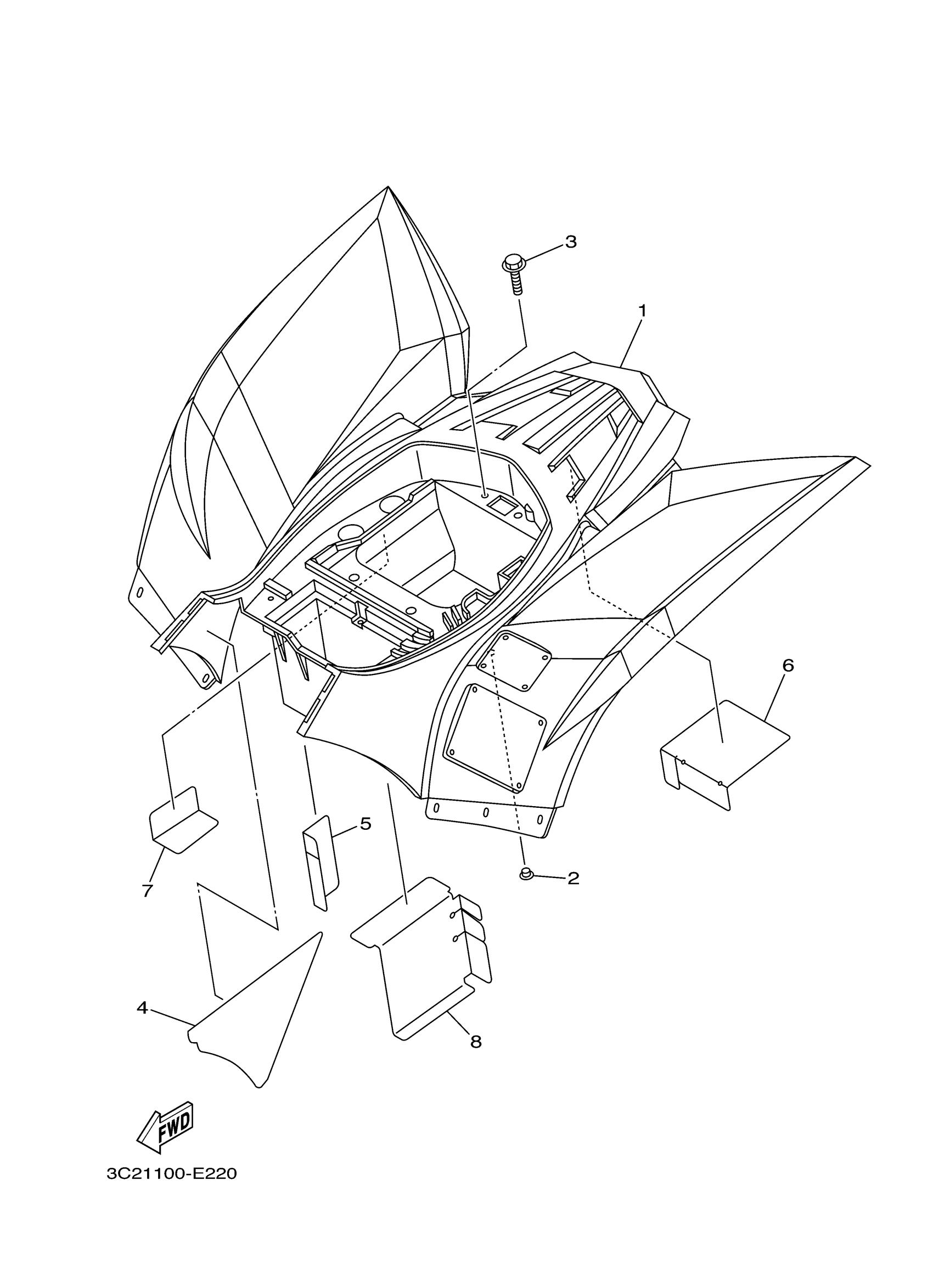

Yamaha YFM45FXXL (WOLVERINE 450 4WD) 3C2A0 2008 REAR FENDER Diagram

#

Description

Price

1

REAR FENDER ASSY. (DEEP PURPLISH BLUE SOLID E)

3C2-F1600-00-00

Unavailable

1

REAR FENDER ASSY. (PASTEL DARK GRAY)

3C2-F1600-40-00

Unavailable

2

PLUG

90338-09801-00

$1.26

3

BOLT, WITH WASHER

90119-06157-00

$6.23

4

COVER, REAR FENDER 1

3C2-F163A-00-00

Unavailable

5

COVER, REAR FENDER

5ND-F163E-00-00

Unavailable

6

PROTECTOR

5ND-F1652-00-00

$3.68

7

INSULATOR, SIDE CO

5FU-F174A-02-00

Unavailable

8

COVER, REAR FENDER 3

5ND-F163F-00-00

Unavailable
