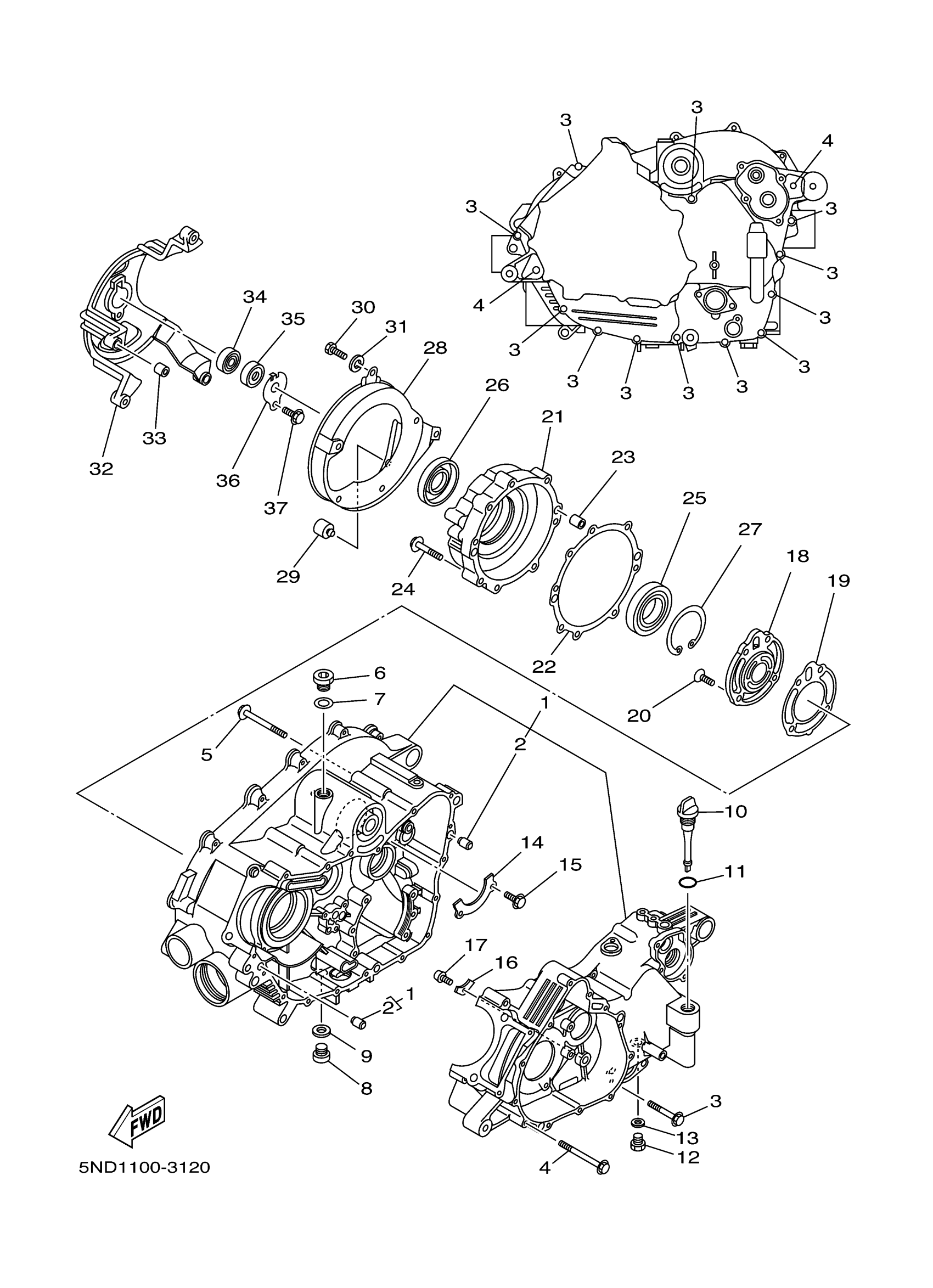

Yamaha YFM45FXXL (WOLVERINE 450 4WD) 3C2A0 2008 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3C2-15100-02-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT, FLANGE

95022-06040-00

$3.45

4

BOLT, FLANGE

95022-06065-00

$1.96

5

BOLT, FLANGE

95022-06065-00

$1.96

6

PLUG, STRAIGHT SCREW

90340-18003-00

Unavailable

7

GASKET (1J7)

90430-18130-00

$8.49

8

PLUG, STRAIGHT SCREW

90340-14002-00

$20.99

9

GASKET

214-11198-01-00

$3.17

10

PLUG, OIL LEVEL

5GH-15362-00-00

Unavailable

11

O-RING (603)

93210-19026-00

$8.49

12

PLUG, STRAIGHT(2E9)

90340-14029-00

$4.29

13

GASKET

214-11198-01-00

$3.17

14

PLATE, BEARING COVER

5GH-15388-00-00

$4.73

15

BOLT, FLANGE

95817-06012-00

$1.43

16

PLATE, BEARING COVER

4XM-15383-00-00

Unavailable

17

SCREW, COUNTERSUNK

90151-06023-00

Unavailable

18

COVER, AIR CLEANER

5GH-15414-00-00

Unavailable

19

GASKET 1

5GH-15454-00-00

Unavailable

20

SCREW, FLAT

98707-06020-00

Unavailable

21

HOUSING, BEARING 1

5GH-15163-00-00

Unavailable

22

GASKET, CARBURETOR COVER 2

5GH-15463-00-00

Unavailable

23

PIN, DOWEL(3VD)

99530-10114-00

$2.55

24

BOLT, FLANGE

95022-06040-00

$3.45

25

BEARING

93316-01003-00

Unavailable

26

OIL SEAL

93102-32483-00

Unavailable

27

CIRCLIP (70R)

93420-80066-00

Unavailable

28

COVER

5GH-15333-00-00

Unavailable

29

DAMPER, ENGINE MOUNT 5

5GH-15338-00-00

Unavailable

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

HOUSING, BEARING

5GH-15442-01-00

Unavailable

33

PIN, DOWEL

91810-20001-00

Unavailable

34

BEARING(82M)

93306-20117-00

Unavailable

35

OIL SEAL

93101-12168-00

Unavailable

36

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

37

BOLT, FLANGE

95022-06012-00

Unavailable
