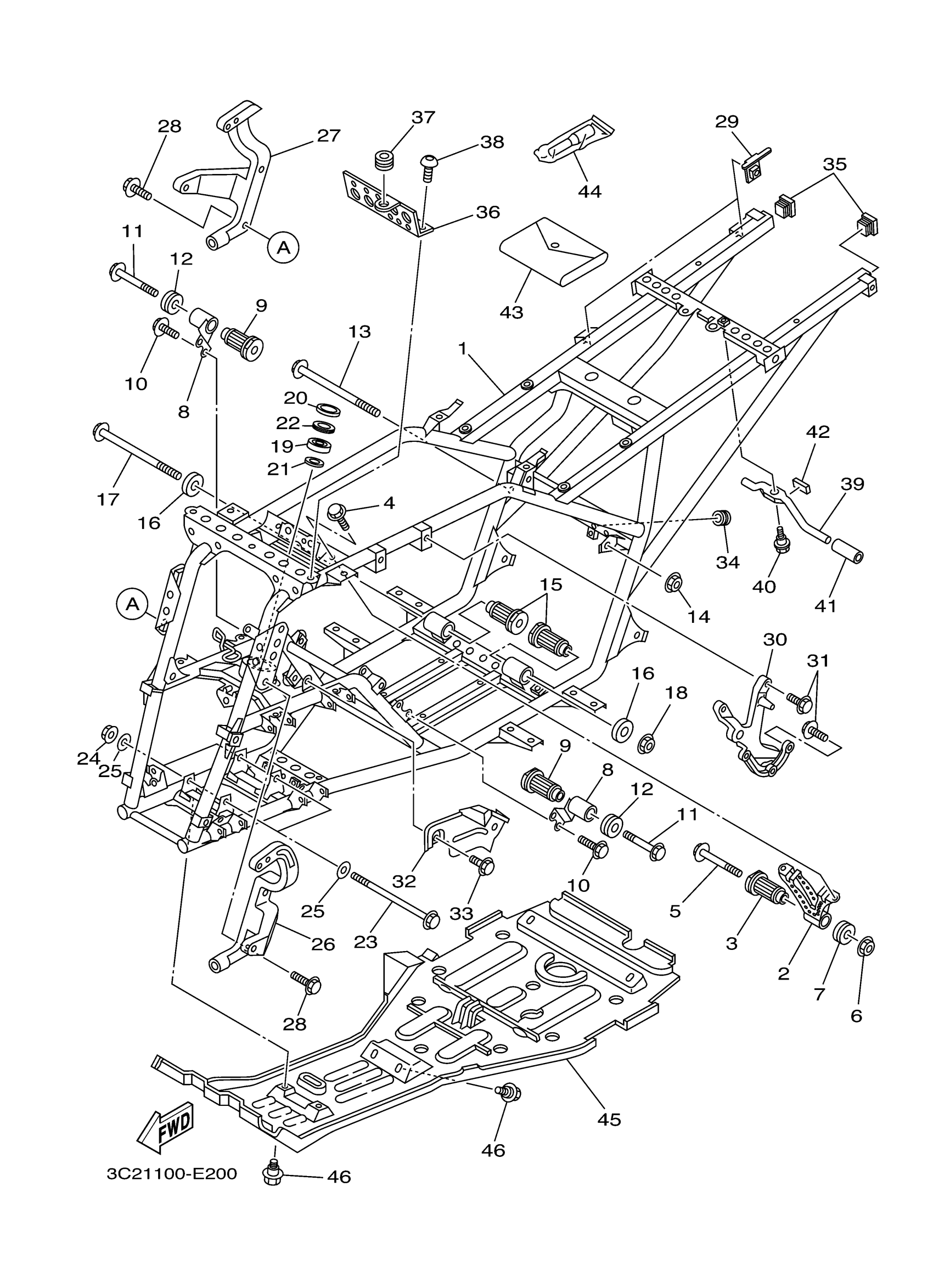

Yamaha YFM45FXV (WOLVERINE 450 4WD SPORT) 3C21 2006 FRAME Diagram
#
1
FRAME COMP.
3C2-F1110-02-00
Unavailable
2
STAY, ENGINE 2
5ND-F1315-01-00
Unavailable
3
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
8
STAY, ENGINE 3
5ND-F1316-01-00
Unavailable
9
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
13
BOLT, WASHER BASED
90105-10055-00
Unavailable
15
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
16
DAMPER
5ND-F1488-00-00
Unavailable
17
BOLT, WASHER BASED
90105-10055-00
Unavailable
19
BEARING
93306-203YN-00
Unavailable
20
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
21
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
22
HOLDER, BEARING
2GU-23872-00-00
Unavailable
23
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
25
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
26
STAY, HEAD LIGHT 1
3C2-F831V-00-00
Unavailable
27
STAY, HEAD LIGHT 2
3C2-F832V-00-00
Unavailable
28
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
29
STAY, MUFFLER 2
3C2-F1446-01-00
Unavailable
30
ARM
5ND-F1585-01-00
Unavailable
31
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
32
PROTECTOR 1
5ND-F2825-00-00
Unavailable
33
BOLT, FLANGE
95817-06010-00
Unavailable
34
GROMMET(3GM)
90480-10517-00
Unavailable
35
. CAP, MAIN PIPE
5FU-F111A-00-00
Unavailable
36
BRACKET, RESERVE TANK
3C2-F1228-00-00
Unavailable
37
GROMMET
90480-13004-00
Unavailable
38
SCREW(3LD)
90149-06280-00
Unavailable
39
LEVER, LATCH 1
3C2-K7173-00-00
Unavailable
40
BOLT(3KJ)
90109-063F1-00
Unavailable
41
CAP, PROTECTOR END 4
JJ3-K818M-00-00
Unavailable
42
HOLDER, DAMPER
3C2-F4144-00-00
Unavailable
43
TOOL KIT
5ND-F8100-00-00
Unavailable
44
GAUGE, AIR
1NV-2811A-01-00
Unavailable
45
GUARD, ENGINE 1
5ND-F147A-03-00
Unavailable
46
BOLT(3KJ)
90109-063F1-00
Unavailable
