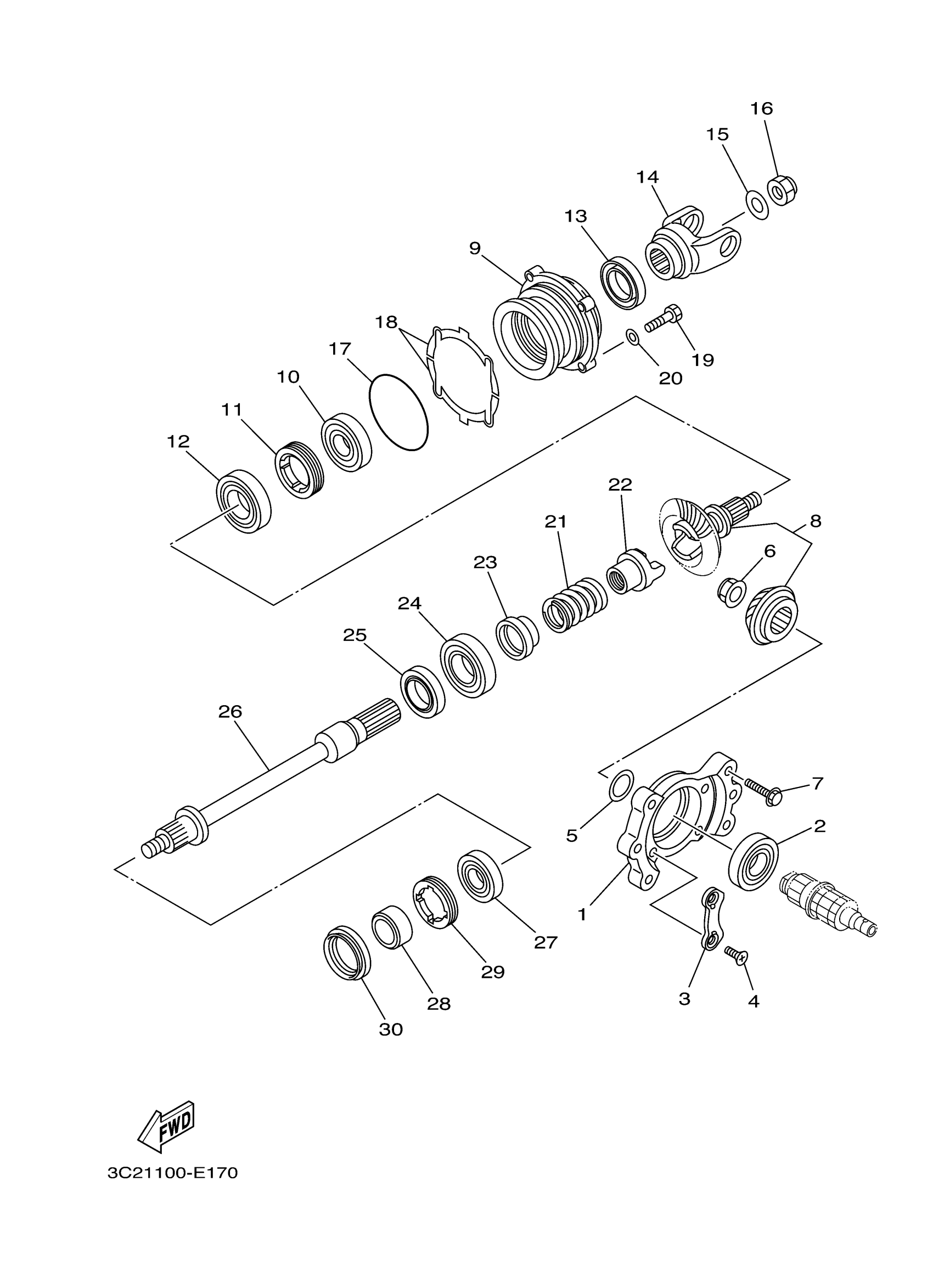

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 MIDDLE DRIVE GEAR Diagram

HOUSING, BEARING

5GH-17521-00-00

Unavailable

BEARING (5X5)

93306-20627-00

$75.99

PLATE, BEARING COVER

11H-15383-02-00

$14.49

SCREW

90149-08013-00

$8.49

SHIM, PINION

52G-17531-01-00

$1.92

SHIM, PINION

52G-17531-11-00

$1.92

SHIM, PINION

52G-17531-21-00

$7.99

SHIM, PINION

52G-17531-31-00

$6.99

SHIM, PINION

52G-17531-41-00

$7.99

SHIM, PINION

52G-17531-51-00

$6.99

NUT

90179-22015-00

$29.99

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

PINION SET

4WV-17530-00-00

Unavailable

HOUSING, BEARING

5GH-17551-00-00

$199.99

BEARING(3RR)

93306-30560-00

Unavailable

NUT(59V)

90179-65305-00

Unavailable

BEARING (8U9)

93306-20712-00

Unavailable

OIL SEAL (4H7)

93101-35097-00

Unavailable

YOKE, JOINT

5GH-17556-01-00

Unavailable

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

O-RING (14X)

93210-78544-00

Unavailable

SHIM, PINION (0.1T)

5GH-17531-00-00

Unavailable

SHIM, PINION (0.15T)

5GH-17531-10-00

Unavailable

SHIM, PINION (0.2T)

5GH-17531-20-00

Unavailable

SHIM, PINION (0.3T)

5GH-17531-30-00

Unavailable

SHIM, PINION (0.4T)

5GH-17531-40-00

Unavailable

SHIM, PINION (0.5T)

5GH-17531-50-00

Unavailable

SHIM, PINION (0.6T)

5GH-17531-60-00

Unavailable

BOLT, HEXAGON

97017-08030-00

Unavailable

WASHER(6TA)

92907-08600-00

Unavailable

SPRING, COMPRESSION

90501-650L5-00

Unavailable

CAM, DRIVEN

4VR-17527-00-00

Unavailable

COLLAR, GEAR

5UH-17585-00-00

Unavailable

BEARING(2HR)

93306-00612-00

Unavailable

OIL SEAL(76K)

93102-30339-00

Unavailable

SHAFT, 1

5UH-1761A-00-00

Unavailable

BEARING(83R)

93306-20582-00

Unavailable

COLLAR(1WG)

90387-252R2-00

Unavailable

NUT(4KB)

90179-55660-00

Unavailable

OIL SEAL(2HR)

93102-35380-00

Unavailable
