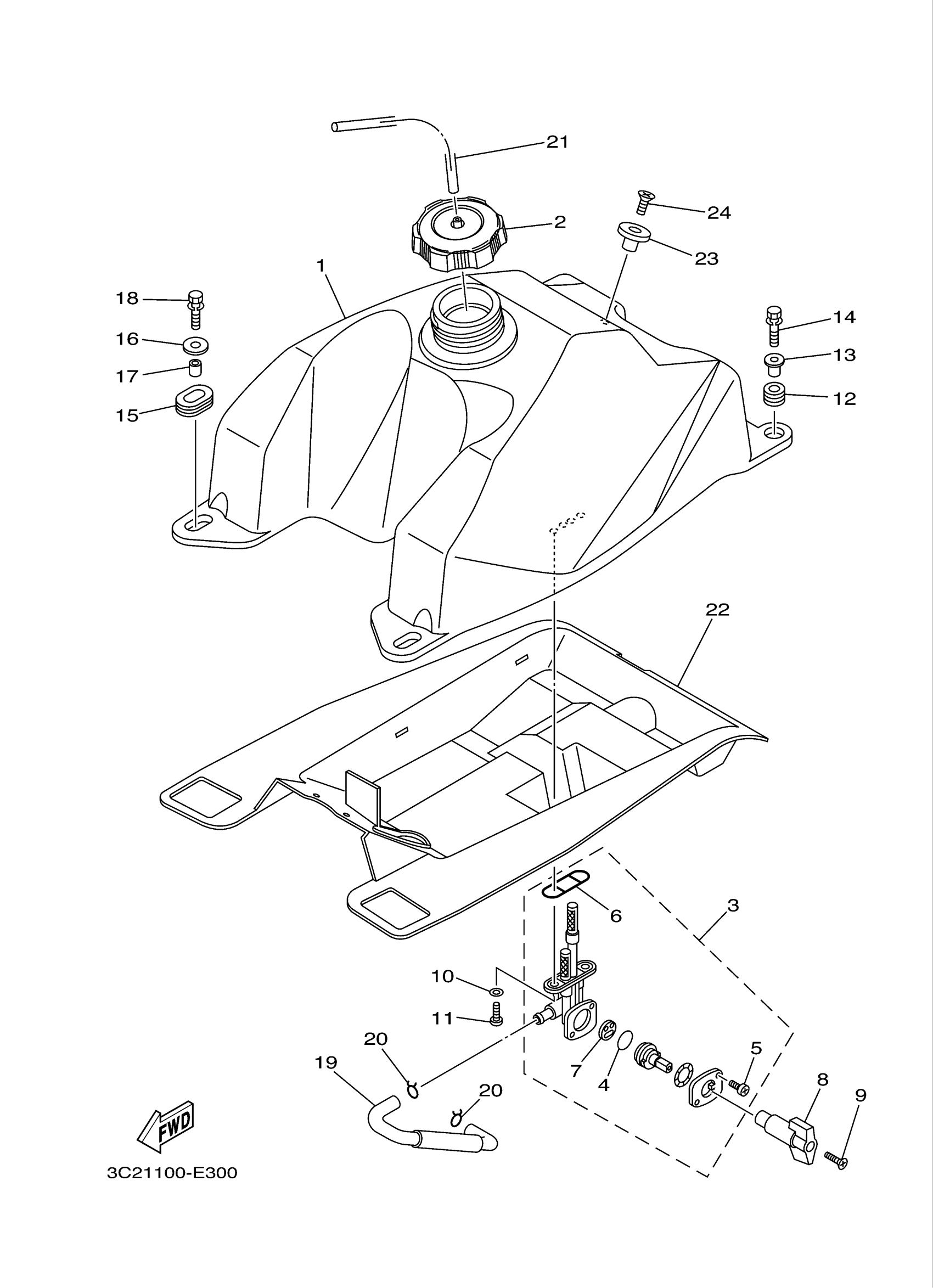

Yamaha YFM45FXSEW (WOLVERINE 450 SPORT SPECIAL EDITION) 3C27 2007 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3C2-F4110-00-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

FUEL COCK ASSY 1

3C2-24500-00-00

$41.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

6

O-RING

4X8-24512-00-00

$8.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

LEVER, COCK

3HE-24524-00-00

$33.99

9

SCREW, FLAT HEAD(3HH)

98707-04018-00

$2.18

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

SCREW 256241430000

90149-06011-00

$5.60

12

GROMMET (4V1)

90480-18290-00

$8.49

13

COLLAR (36R)

90387-066J1-00

$8.49

14

BOLT, WITH WASHER

90119-06883-00

$4.51

15

GROMMET(38W)

90480-01400-00

$13.49

16

WASHER, PLATE

90201-06090-00

Unavailable

17

COLLAR (1T2)

90387-07598-00

Unavailable

18

BOLT, WITH WASHER

90119-06883-00

$4.51

19

PIPE, FUEL 1

3C2-F4311-00-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

HOSE

90445-088C5-00

Unavailable

22

DAMPER, PLATE 1

3C2-F414H-00-00

Unavailable

23

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

24

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable
