Description

Price

1

COLUMN, STEERING 2

5ND-F3813-11-00

$155.99

2

ARM,PITMAN

5ND-F3816-12-00

$32.99

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

BOLT, FLANGE

95812-08030-00

$3.81

5

PLUG, TAPER(2HR)

90336-28053-00

$10.49

6

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

7

OIL SEAL(1UY)

93112-31011-00

$9.49

8

BRACKET, STEERING LOWER

5ND-F3868-00-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

WASHER, LOCK 1

1UY-23894-01-00

$7.99

11

COLLAR(85G)

90387-106T4-00

$14.99

12

WASHER, PLATE

90201-14021-00

$5.60

13

NUT, SELF-LOCKING

90185-14009-00

$9.49

14

PIN, COTTER

91490-20035-00

$4.77

15

ROD, TIE

37S-23831-00-00

$57.99

16

JOINT, UNIVERSAL 1

37S-23841-00-00

Unavailable

17

JOINT,UNIVERSAL 2

1D9-F3845-01-00

Unavailable

18

NUT 1

1P0-F3833-00-00

Unavailable

19

NUT 2

37S-23834-00-00

Unavailable

20

NUT, CASTLE

90171-12001-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable

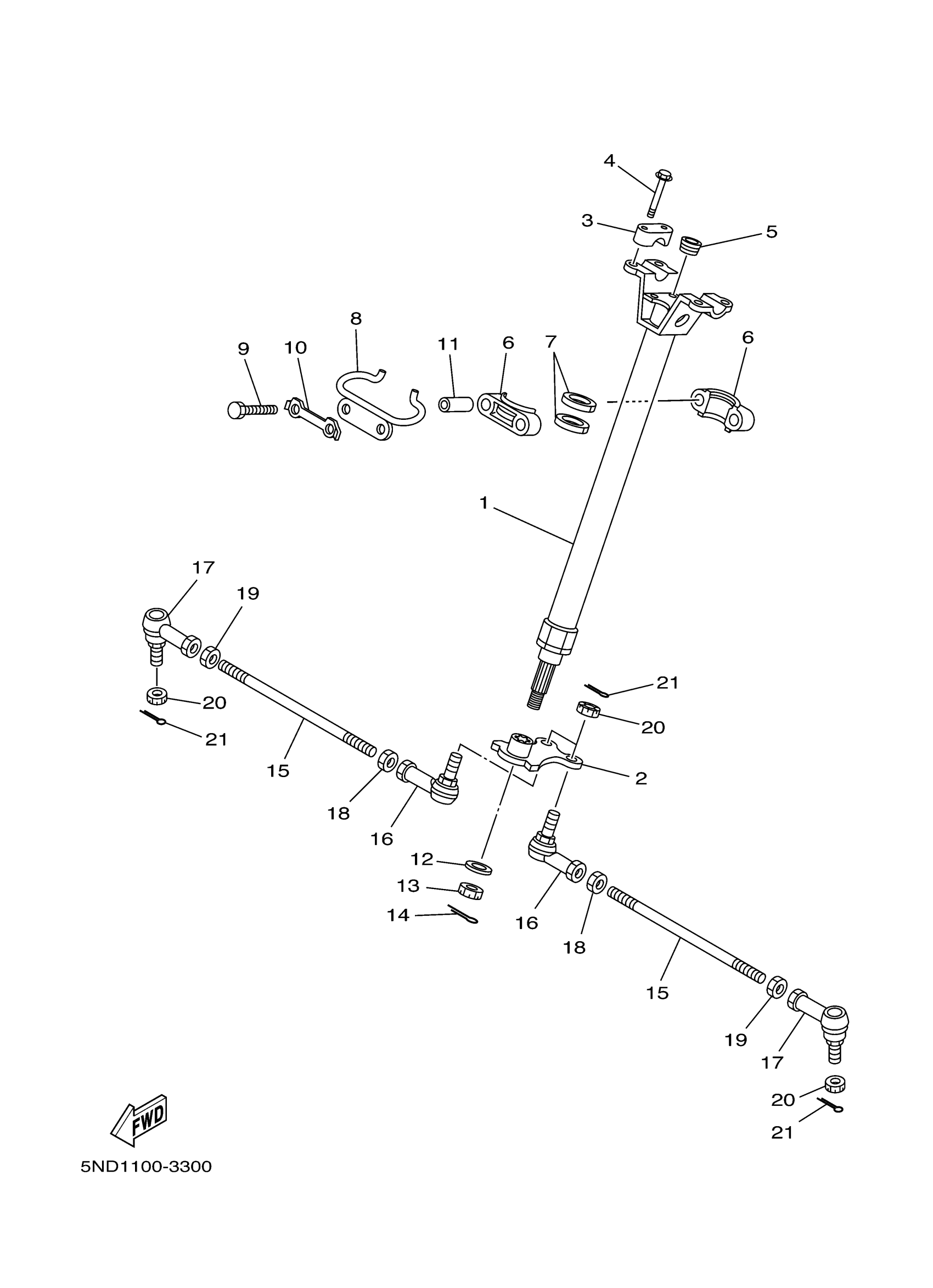

Yamaha YFM45FGYL (GRIZZLY 450 4WD) 37S11 2009 STEERING Diagram

COLUMN, STEERING 2

ARM,PITMAN

HOLDER, HANDLE UPPER

BOLT, FLANGE

PLUG, TAPER(2HR)

PLANE BEARING, STEERING

OIL SEAL(1UY)

BRACKET, STEERING LOWER

BOLT, HEXAGON

WASHER, LOCK 1

COLLAR(85G)

WASHER, PLATE

NUT, SELF-LOCKING

PIN, COTTER

ROD, TIE

JOINT, UNIVERSAL 1

JOINT,UNIVERSAL 2

NUT 1

NUT 2

NUT, CASTLE

PIN, COTTER
