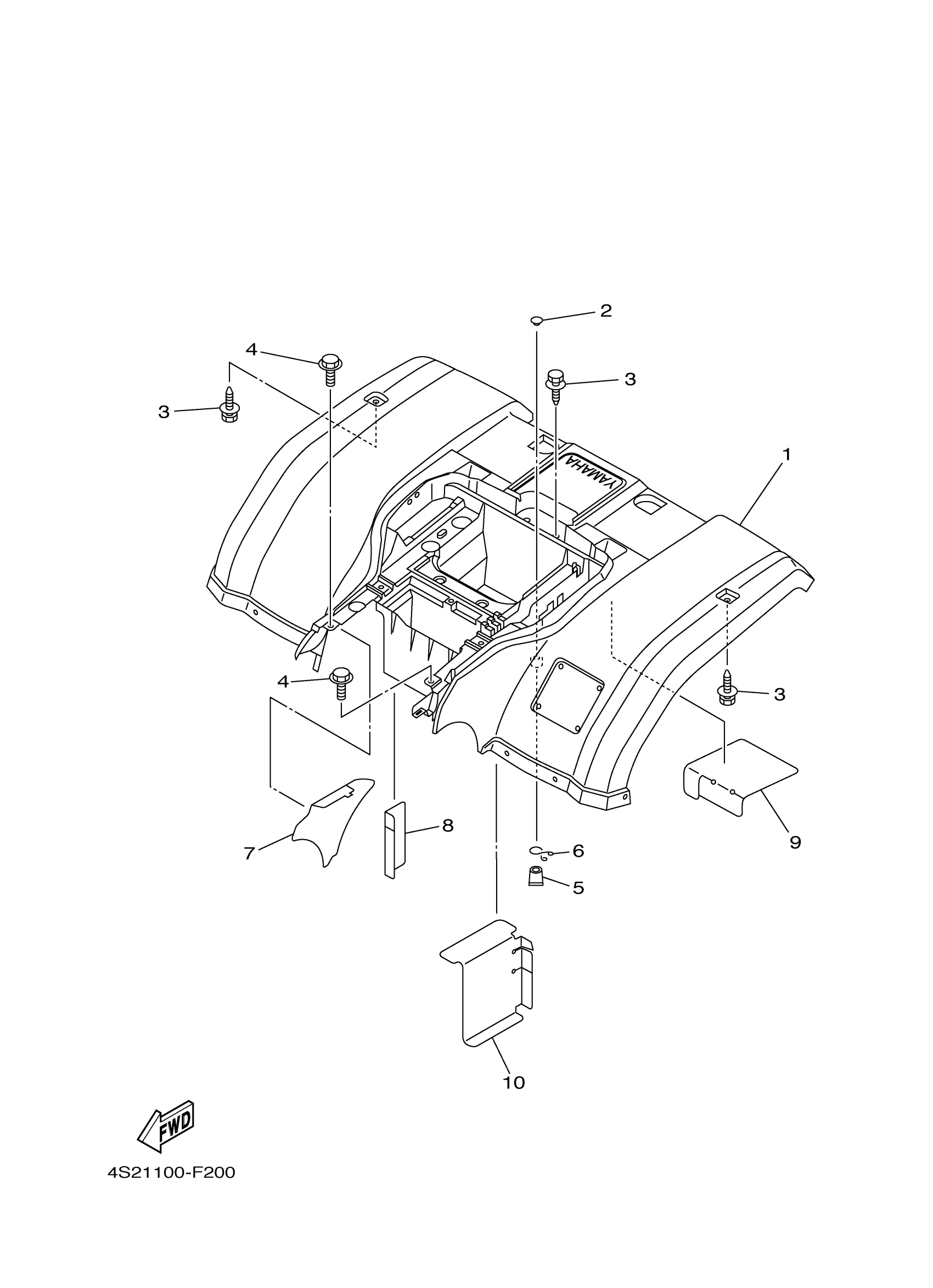

Yamaha YFM45FGSPX (GRIZZLY 450 SPECIAL EDITION) 17SA 2008 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY.

5ND-F1600-T0-00

Unavailable

2

PLUG

90338-09801-00

$1.26

3

BOLT, WITH WASHER

90119-06157-00

$6.23

4

BOLT, WITH WASHER(81H)

90119-06118-00

$5.75

5

PIPE, DRAIN

5BF-1443E-00-00

$3.26

6

CLIP

90467-160A4-00

$6.15

7

COVER, REAR FENDER

5ND-F163A-02-00

Unavailable

8

COVER, REAR FENDER

5ND-F163E-00-00

Unavailable

9

PROTECTOR

5ND-F1652-00-00

$3.68

10

COVER, REAR FENDER 3

5ND-F163F-00-00

Unavailable
