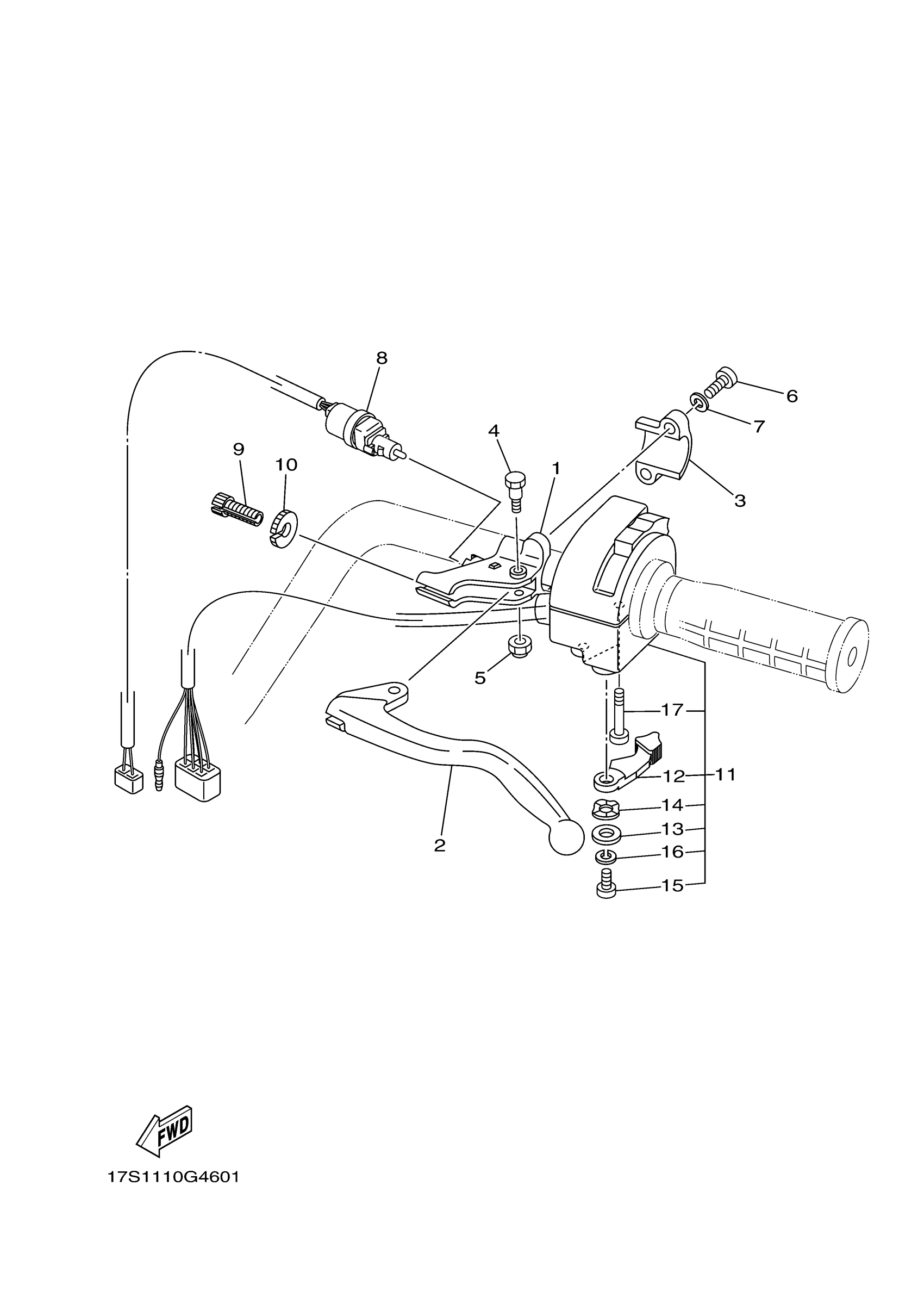

Yamaha YFM45FGSPX (GRIZZLY 450 SPECIAL EDITION) 17SA 2008 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1YW-82911-02-00

Unavailable

2

LEVER 1

2HT-83912-01-00

$39.99

3

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

SCREW, PAN

98517-06020-00

$8.49

7

WASHER, SPRING

92907-06100-00

$4.25

8

FRONT STOP SWITCH ASSY

3FA-83980-03-00

$71.99

9

BOLT

90123-08002-00

$10.49

10

NUT

90179-08030-00

$5.49

11

SWITCH, HANDLE 4

5KM-83972-01-00

$144.99

12

LEVER, STARTER

5KM-83941-00-00

$15.49

13

WASHER, SPECIAL

1UY-83909-00-00

$7.99

14

WASHER, STARTER

3L4-83943-00-00

$7.99

15

SCREW, PAN

98517-05012-00

$4.73

16

WASHER(3SX)

92907-05100-00

Unavailable

17

SCREW, PAN HEAD

98517-05030-00

Unavailable
