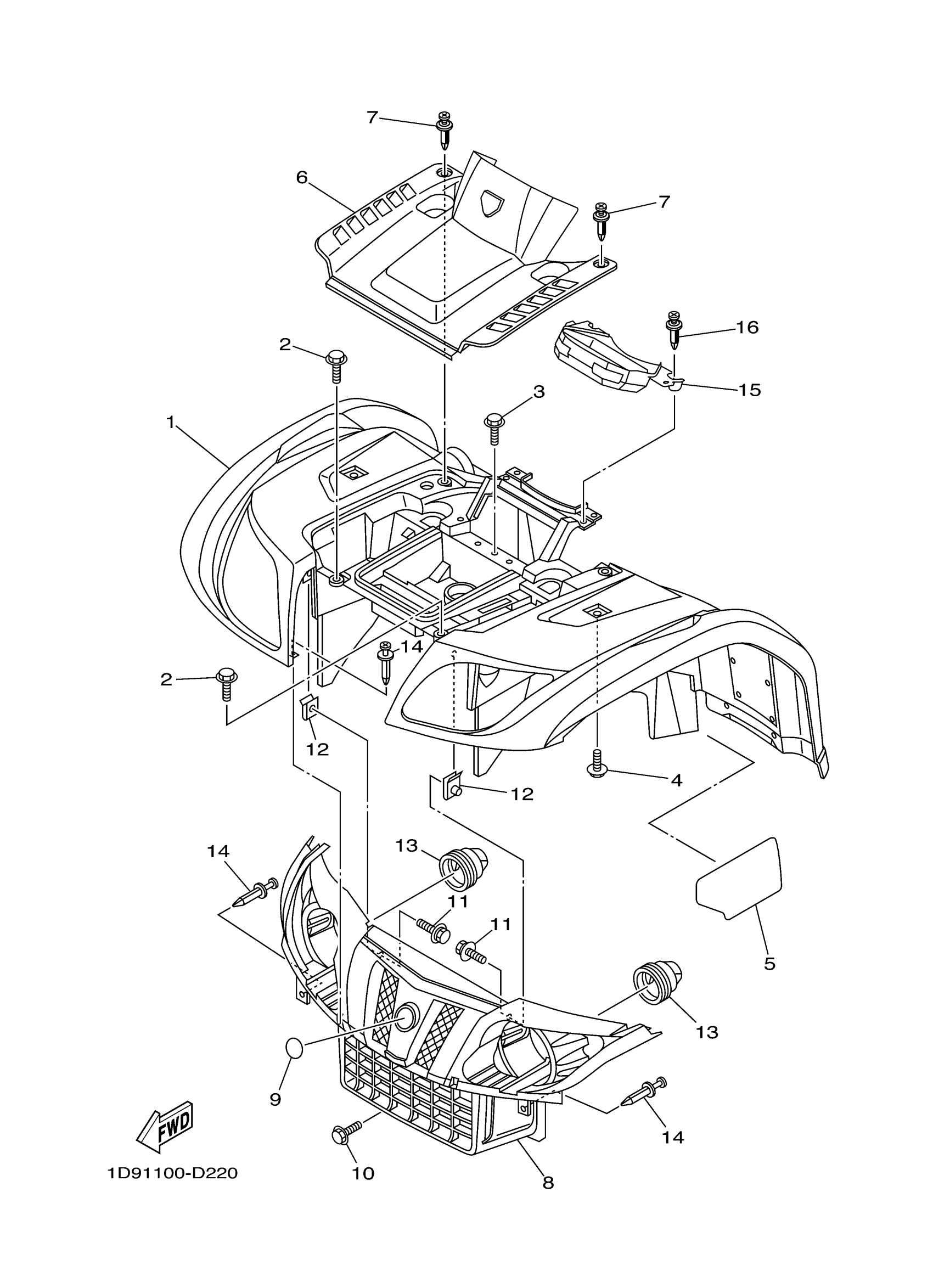

Yamaha YFM45FGSPX (GRIZZLY 450 SPECIAL EDITION) 17SA 2008 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY
1D9-F1500-S0-00
Unavailable
6
PANEL,FRONT
5ND-F3391-02-00
Unavailable
8
GRILLE, FRONT
1D9-F8309-01-00
Unavailable
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
15
PANEL, CONSOLE 1
5ND-F837L-01-00
Unavailable
