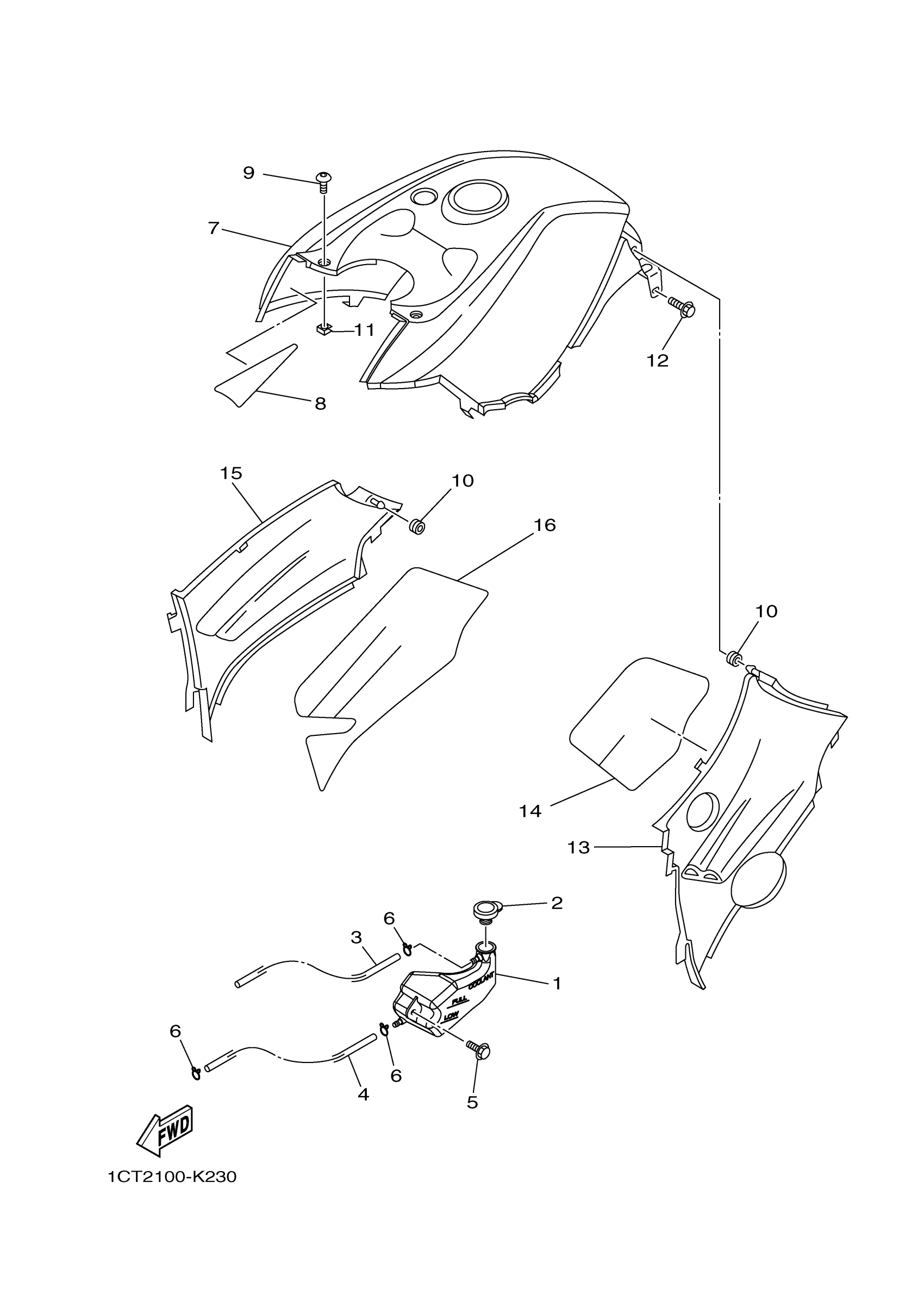

Yamaha YFM45FGPHD (GRIZZLY 450 EPS 4WD HUNTER) 1CTW 2013 SIDE COVER Diagram

#

Description
Price

1

TANK, RECOVERY

1CT-F1871-00-00

$10.99

2

CAP

1S3-21875-00-00

$9.99

3

HOSE

90445-08811-00

Unavailable

4

HOSE

90445-08812-00

Unavailable

5

BOLT, WITH WASHER

90119-06157-00

$8.49

6

CLIP 101235600

90467-08003-00

$10.49

7

TOP COVER COMP.

5ND-F171C-H0-00

Unavailable

8

CLOTH, PROTECTOR

5ND-F174M-00-00

$7.49

9

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

10

GROMMET(4FU)

90480-13567-00

$4.99

11

NUT, SPRING

90183-051A0-00

$3.81

12

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

13

COVER, SIDE 1

5ND-F1711-00-00

Unavailable

14

INSULATOR,SIDE CVR

5ND-F174A-01-00

$8.99

15

COVER, SIDE 2

5ND-F1721-00-00

Unavailable

16

INSULATOR, SIDE COVER

5ND-F174T-01-00

Unavailable
