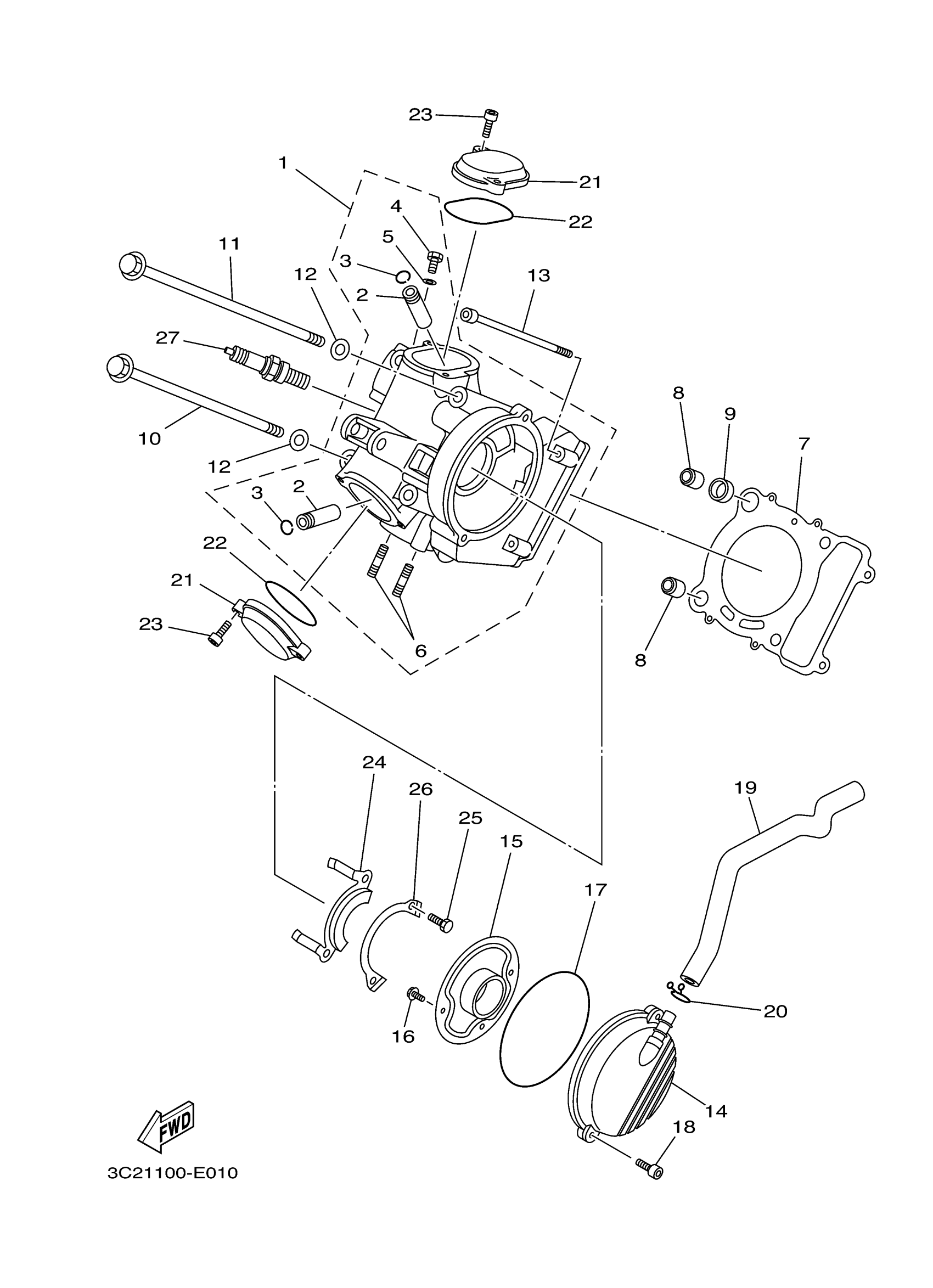

Yamaha YFM45FGPHD (GRIZZLY 450 EPS 4WD HUNTER) 1CTW 2013 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5GH-11101-09-00

Unavailable

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$58.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT UNION 137131650000

90401-06001-00

Unavailable

5

GASKET (4V2)

90430-06166-00

$3.76

6

BOLT, STUD(2GG)

95617-08620-00

$7.49

7

GASKET, CYLINDER HEAD 1

5GH-11181-00-00

$58.99

8

PIN, DOWEL

99530-14016-00

$3.80

9

GASKET

90430-14240-00

$9.49

10

BOLT, FLANGE

90105-10137-00

$11.49

11

BOLT, FLANGE

90105-10136-00

$11.49

12

WASHER PLATE 341839090000

90201-10128-00

$4.82

13

BOLT

91312-06140-00

$11.49

14

BREATHER ASSY

4WU-11160-01-00

Unavailable

15

PLATE, BREATHER

4KB-11165-00-00

Unavailable

16

BOLT, FLANGE

95022-06012-00

Unavailable

17

O-RING (15A)

93211-06635-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

PIPE, BREATHER 1

3C2-E1166-00-00

Unavailable

20

CLIP

90467-140A4-00

Unavailable

21

COVER, CYLINDER HEAD SIDE 2

2NL-11186-12-00

Unavailable

22

O-RING

93210-57634-00

Unavailable

23

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

24

PLATE

5GH-1111F-00-00

Unavailable

25

BOLT (661)

97013-06012-00

Unavailable

26

WASHER, LOCK

90215-06003-00

Unavailable

27

PLUG, SPARK (NGK DR8EA)

DR8-EA00-00-00

Unavailable
