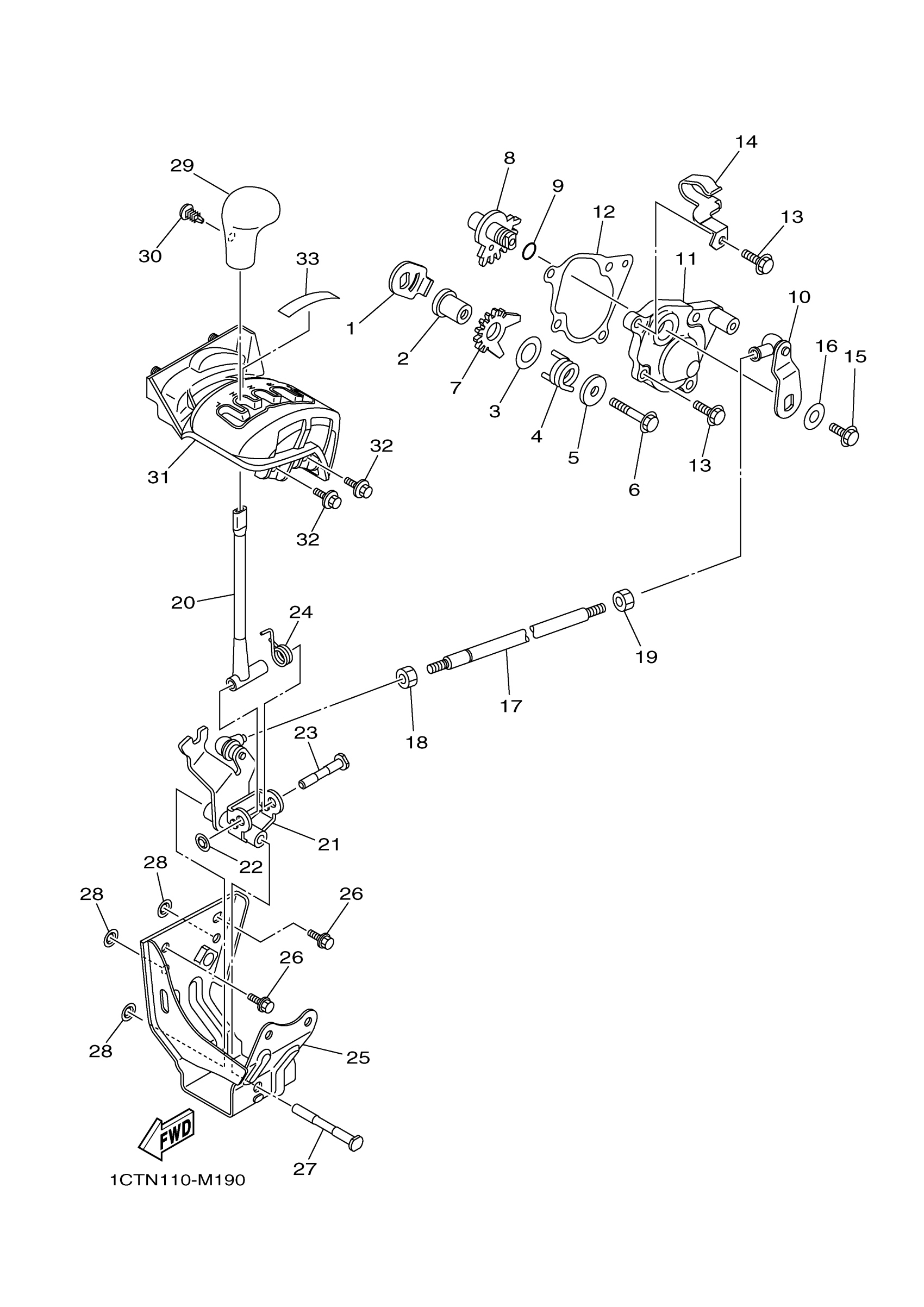

Yamaha YFM45FGPDR (GRIZZLY 450 EPS 4WD) 1CTN1 2013 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$22.99

2

COLLAR

90387-0613B-00

$9.49

3

WASHER, PLATE

90201-13013-00

$8.49

4

SPRING, TORSION(1YW)

90508-35764-00

$5.60

5

WASHER, PLATE

90201-06036-00

$8.49

6

95812-06035

95812-06035-00

$4.94

7

LEVER

5KM-18191-00-00

$24.99

8

SHAFT

5GH-18197-00-00

Unavailable

9

O-RING (P95)

93210-11073-00

$7.49

10

SHIFT GUIDE COMP.

5GH-18104-00-00

Unavailable

11

COVER, SHIFT SHAFT

5GH-18129-01-00

Unavailable

12

GASKET, LEVER STOP

5GH-18146-00-00

$5.49

13

BOLT(7U8)

97080-06020-00

Unavailable

14

CLAMP(3JD)

90465-08336-00

$10.49

15

BOLT, FLANGE

90105-06175-00

$3.55

16

WASHER, PLATE

90201-06036-00

$8.49

17

ROD, SHIFT

5GH-18115-01-00

Unavailable

18

NUT(1KT)

90170-08358-00

Unavailable

19

. NUT

95380-08700-00

Unavailable

20

LEVER COMP. 1

1CT-E8190-00-00

Unavailable

21

ARM, SHIFT 2

1CT-E8169-00-00

Unavailable

22

NUT, SPRING

90183-080A1-00

Unavailable

23

SHAFT, SHIFT

3B4-18125-00-00

Unavailable

24

SPRING, RETURN

3B4-18196-01-00

Unavailable

25

SHIFTER BRKT. ASSY

1CT-E8380-00-00

Unavailable

26

BOLT, FLANGE

95817-08012-00

Unavailable

27

SHAFT, SHIFT 2

1CT-E8155-00-00

Unavailable

28

NUT, SPRING

90183-080A1-00

Unavailable

29

KNOB, SHIFT LEVER

28P-18174-00-00

Unavailable

30

RIVET(81E)

90269-05055-00

Unavailable

31

GUIDE, SHIFT

1CT-E8172-00-00

Unavailable

32

BOLT

90109-06172-00

Unavailable

33

DAMPER

1CT-E6782-00-00

Unavailable
