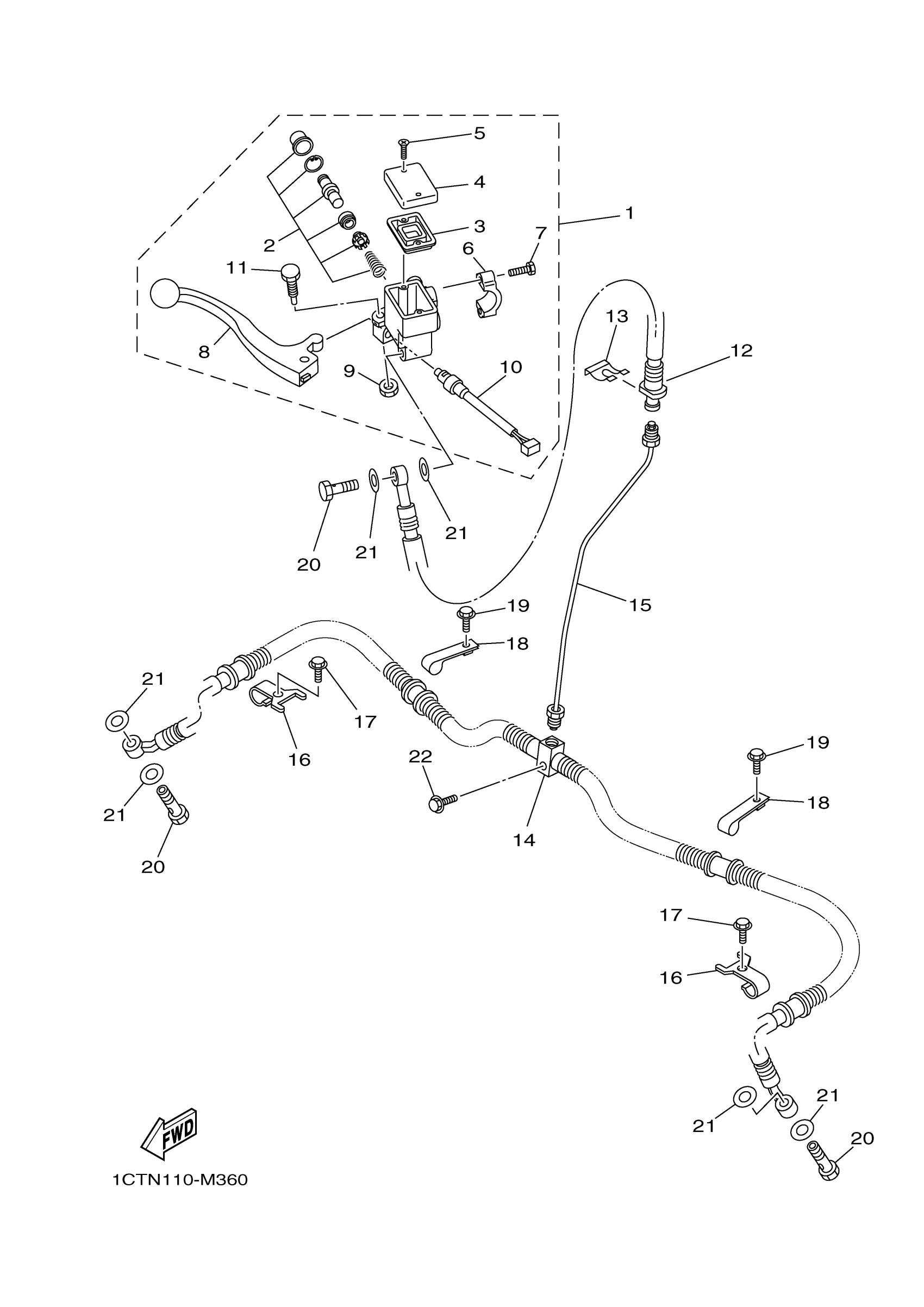

Yamaha YFM45FGPDR (GRIZZLY 450 EPS 4WD) 1CTN1 2013 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5KM-2583T-10-00

Unavailable

2

CYLINDER KIT, MASTER

8CR-W0041-00-00

$45.51

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

4

CAP, RESERVOIR

5LP-25852-02-00

$18.82

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

5GM-25867-10-00

$20.36

7

BOLT, FITTING

5MV-25833-00-00

$5.37

8

LEVER 2

5KM-83922-00-00

$30.77

9

NUT, FLANGE(7NB)

95780-06500-00

$1.88

10

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$52.60

11

BOLT, LEVER

1FK-2589F-10-00

$8.00

12

HOSE, BRAKE 1

5ND-F5872-13-00

Unavailable

13

CIRCLIP

2GU-25866-00-00

$8.14

14

HOSE, BRAKE 2

1NS-F5873-12-00

Unavailable

15

PIPE, BRAKE

1CT-F5871-00-00

$5.89

16

HOLDER, BRAKE HOSE

5ND-F5875-01-00

$3.41

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

BAND

5ND-F3192-01-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable

20

BOLT, UNION

90401-10015-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

BOLT, FLANGE

95817-06025-00

Unavailable
