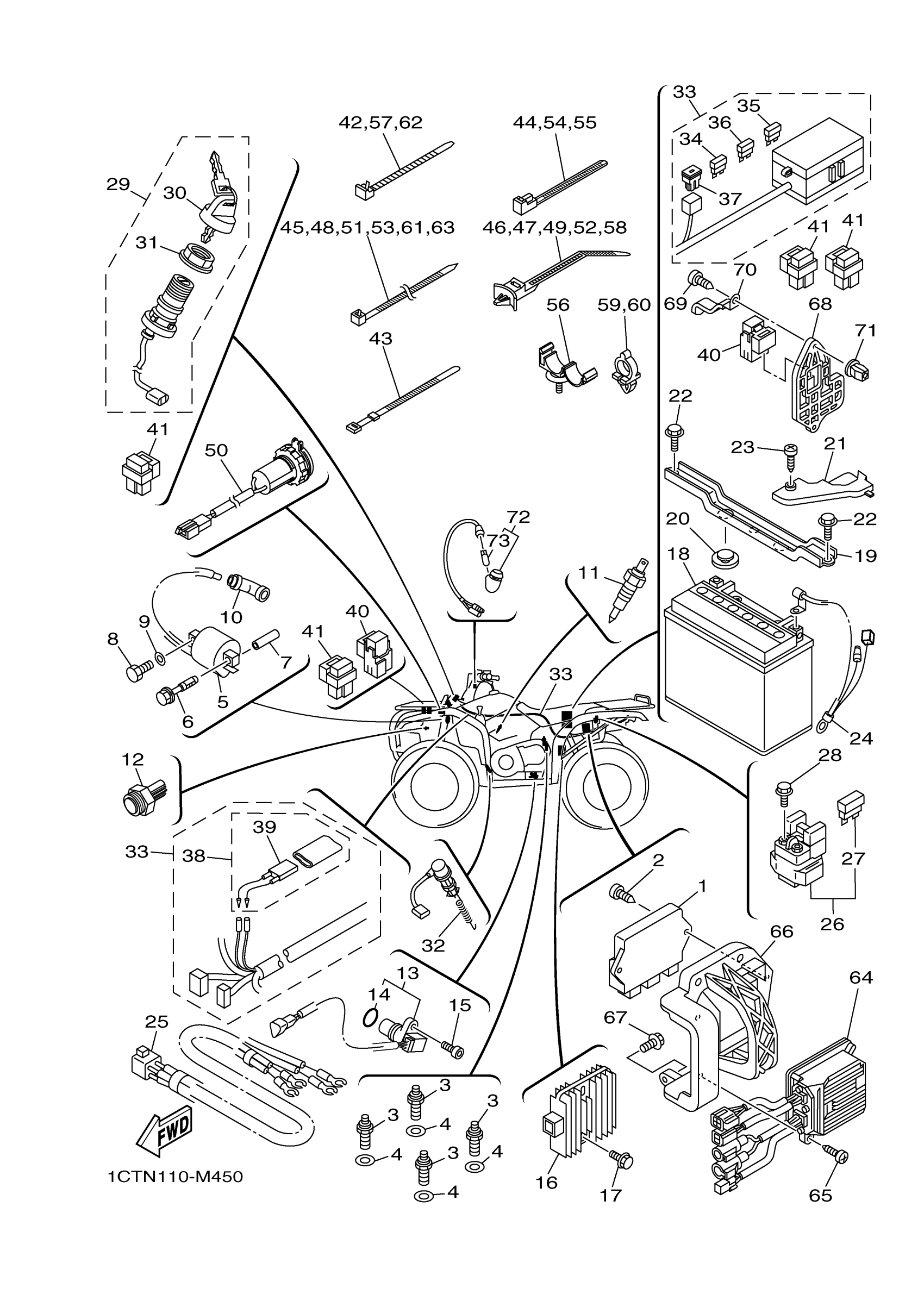

Yamaha YFM45FGPDR (GRIZZLY 450 EPS 4WD) 1CTN1 2013 ELECTRICAL 1 Diagram
#
6
BOLT
90109-06865-00
Unavailable
7
SPACER
5UH-H1318-00-00
Unavailable
11
THERMO SWITCH ASSY
5KM-82560-00-00
Unavailable
16
RECTIFIER & REGULATOR ASSY
4XY-81960-00-00
Unavailable
17
BOLT, FLANGE
95817-06025-00
Unavailable
18
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
19
BRACKET, BATTERY
5ND-H2128-02-00
Unavailable
20
PAD, BATTERY
371-82121-00-00
Unavailable
21
COVER, LEAD WIRE
5ND-H2119-00-00
Unavailable
22
BOLT, FLANGE
90105-06831-00
Unavailable
24
WIRE, MINUS LEAD
1CT-H2116-00-00
Unavailable
25
WIRE, LEAD
5ND-82541-01-00
Unavailable
26
STARTER RELAY ASSY (RC19-015)
4SV-81940-12-00
Unavailable
27
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
28
BOLT, FLANGE
95022-06008-00
Unavailable
29
MAIN SWITCH ASSY
5ND-82510-01-00
Unavailable
30
CAP, KEY
3HN-82579-00-00
Unavailable
31
NUT, MAIN SWITCH
3HN-82569-00-00
Unavailable
32
STOP SWITCH ASSY
4KB-82530-11-00
Unavailable
33
WIRE HARNESS ASSY
1CT-82590-00-00
Unavailable
34
FUSE (5A)
67F-82151-20-00
Unavailable
35
FUSE (15A)
67F-82151-50-00
Unavailable
36
. FUSE (10A)
67F-82151-40-00
Unavailable
37
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
38
CIRCUIT BREAKER ASSY
5ND-82180-00-00
Unavailable
39
THERMO SWITCH ASSY
5ND-82560-00-00
Unavailable
40
RELAY ASSY (8FP-01)
8FP-81950-01-00
Unavailable
41
RELAY ASSY
5DM-81950-01-00
Unavailable
42
CLAMP
90464-51800-00
Unavailable
43
BAND, SWITCH CORD
437-83936-01-00
Unavailable
44
CLAMP(JN6)
90464-31827-00
Unavailable
45
CLAMP
90464-48800-00
Unavailable
46
CLAMP
90464-38800-00
Unavailable
47
CLAMP
90464-38800-00
Unavailable
48
CLAMP
90464-48800-00
Unavailable
49
CLAMP
90464-38800-00
Unavailable
50
TERMINAL COMP.
1HP-H254B-10-00
Unavailable
51
CLAMP
90464-48800-00
Unavailable
52
CLAMP
90464-38800-00
Unavailable
53
CLAMP
90464-48800-00
Unavailable
54
CLAMP(JN6)
90464-31827-00
Unavailable
55
CLAMP(JN6)
90464-31827-00
Unavailable
56
CLAMP
90464-12830-00
Unavailable
57
CLAMP
90464-51800-00
Unavailable
58
CLAMP
90464-38800-00
Unavailable
59
CLAMP
90464-12830-00
Unavailable
60
CLAMP
90464-12830-00
Unavailable
61
CLAMP
90464-48800-00
Unavailable
62
CLAMP
90464-51800-00
Unavailable
63
CLAMP
90464-48800-00
Unavailable
64
POWER STRG. CONT. UNIT ASSY
1CT-859A0-00-00
Unavailable
66
PANEL
1CT-HA860-00-00
Unavailable
67
BOLT, FLANGE
90105-06833-00
Unavailable
68
HOLDER, RELAY
1CT-H1952-00-00
Unavailable
69
SCREW, TAPPING
97702-60420-00
Unavailable
70
CLAMP
90462-06016-00
Unavailable
71
PLUG(4BP)
90338-08226-00
Unavailable
72
PILOT LIGHT ASSY
1CT-83530-00-00
Unavailable
73
BULB (12V-1.7W)
3FV-83517-00-00
Unavailable
