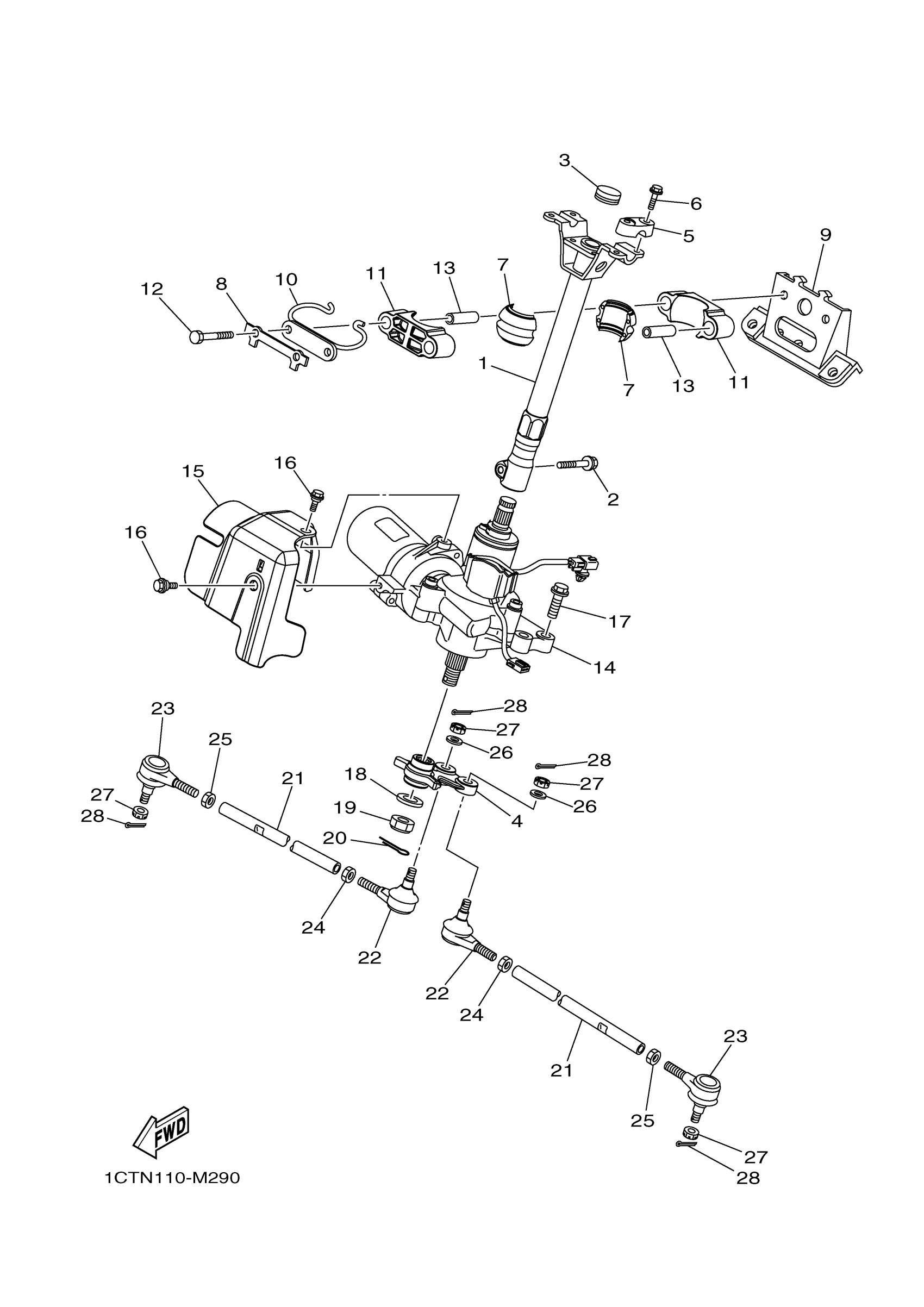

Yamaha YFM45FGPDL (GRIZZLY 450 EPS 4WD) 1CTT 2013 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

1CT-F3813-00-00

Unavailable

2

BOLT, WITH WASHER

90119-08109-00

$5.60

3

PLUG, TAPER(2HR)

90336-28053-00

$10.49

4

ARM, PITMAN

1CT-F3816-10-00

Unavailable

5

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

6

BOLT, FLANGE

95812-08030-00

$3.81

7

PLANE BEARING, STE

1CT-F3812-00-00

$7.99

8

WASHER, LOCK 1

1CT-F3894-00-00

Unavailable

9

BRACKET, STEERING

1CT-F253F-00-00

Unavailable

10

BRACKET, STEERING

1CT-F3868-00-00

$8.99

11

BRACKET, STEERING

1CT-F1957-00-00

Unavailable

12

BOLT

97012-08080-00

Unavailable

13

COLLAR, 2

1CT-F1545-01-00

$3.23

14

POWER STRG. ACTUATOR ASSY

3B4-238B0-51-00

Unavailable

15

COVER, MOTOR

1CT-F38B6-01-00

Unavailable

16

BOLT

90109-06172-00

Unavailable

17

BOLT, FLANGE

95812-08030-00

$3.81

18

WASHER, PLATE

90201-16021-00

Unavailable

19

NUT U

95612-16100-00

Unavailable

20

PIN, COTTER

91490-20035-00

Unavailable

21

ROD, TIE

1NS-23831-00-00

Unavailable

22

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

23

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

24

NUT (682)

95380-10700-00

Unavailable

25

NUT

90170-10010-00

Unavailable

26

WASHER (25G)

90209-10229-00

Unavailable

27

NUT, CASTLE

90171-10001-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable
