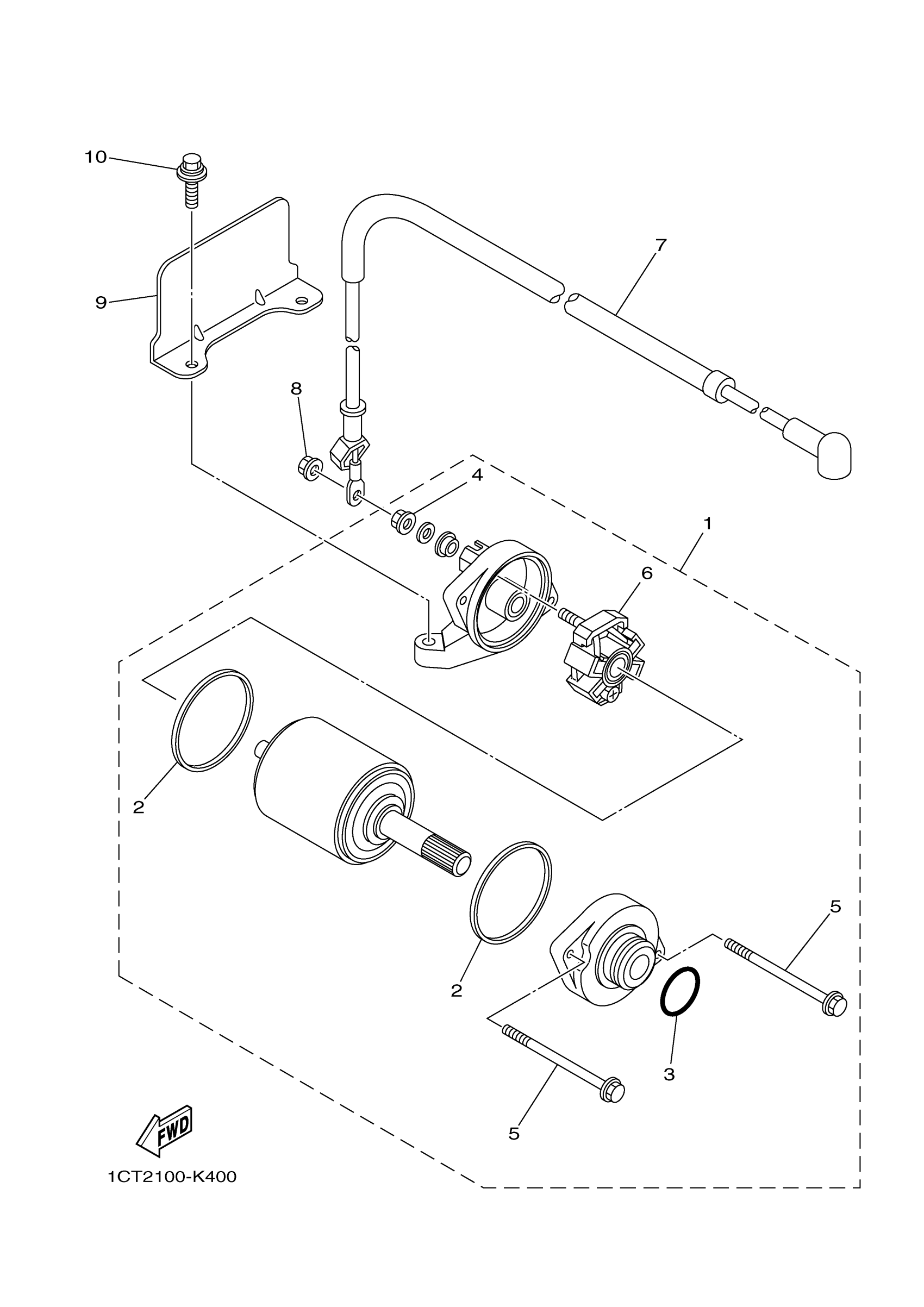

Yamaha YFM45FGPDL (GRIZZLY 450 EPS 4WD) 1CTT 2013 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

1CT-81890-00-00

$600.18

2

GASKET

4B5-81844-00-00

Unavailable

3

O-RING (437)

93210-24235-00

$5.34

4

NUT

4XV-8182A-00-00

$5.86

5

BOLT

4B5-81826-00-00

Unavailable

6

BRUSH HOLDER ASSY

4B5-81840-00-00

$95.57

7

CORD, STARTER MOTOR

1CT-81815-00-00

Unavailable

8

NUT

4XV-8182A-00-00

$5.86

9

COVER

1CT-81842-00-00

$7.68

10

BOLT, WITH WASHER

90119-06151-00

$4.31
