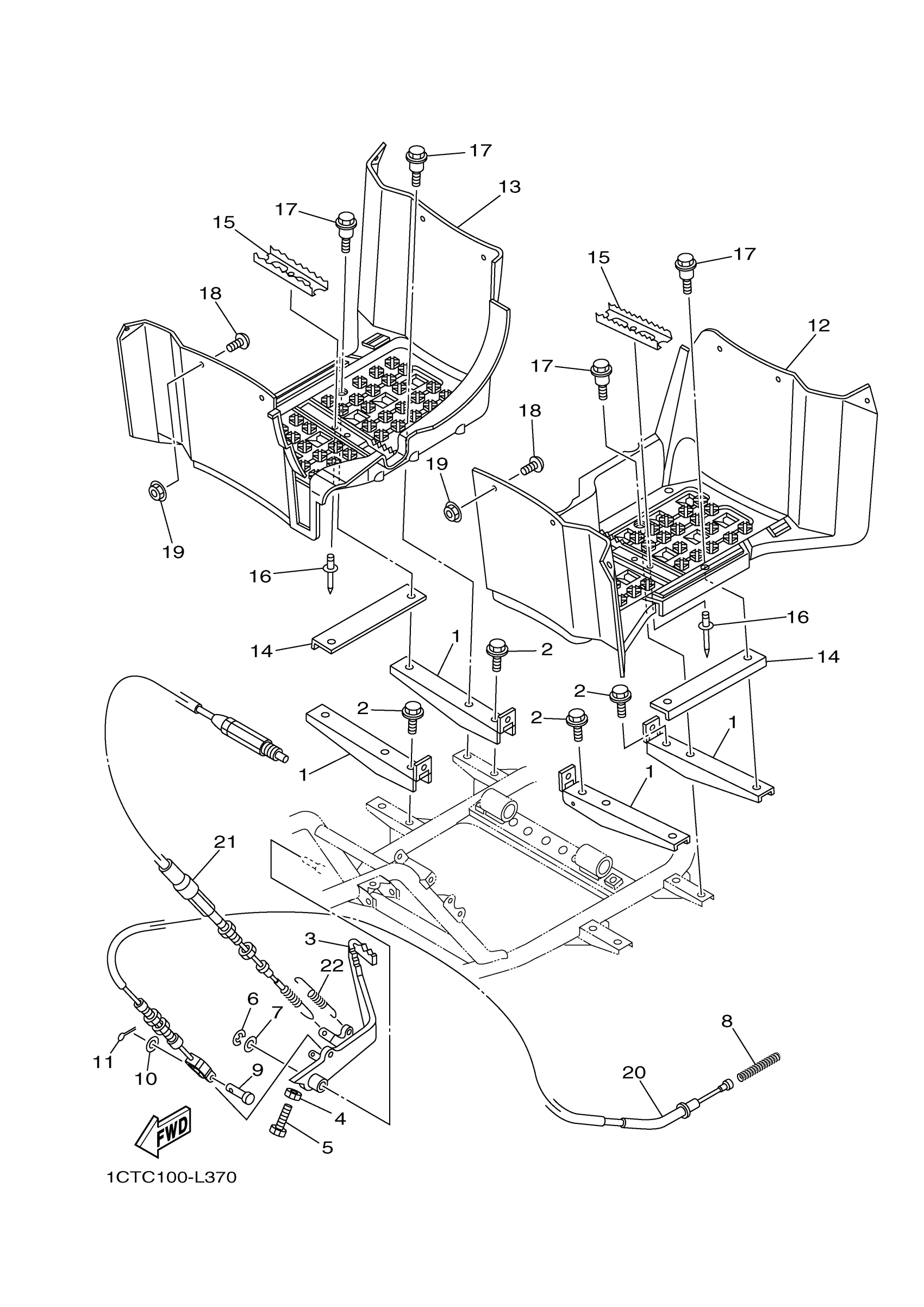

Yamaha YFM45FGPDL (GRIZZLY 450 EPS 4WD) 1CTT 2013 STAND FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST 1

5ND-F7471-01-00

$14.49

2

BOLT, FLANGE

95817-08012-00

$5.49

3

PEDAL, BRAKE

1CT-F7211-01-00

$34.99

4

NUT(JN5)

95317-06700-00

$8.49

5

BOLT, FLANGE

95817-06020-00

$3.81

6

CIRCLIP (137)

93430-10015-00

$9.49

7

WASHER, PLATE

90201-14023-00

$5.60

8

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

9

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

PIN, COTTER (648)

91490-20015-00

$2.20

12

COVER 1 (FOOTREST CVR LH SIDE)

5ND-F7453-01-00

$66.99

13

COVER 2 (FOOTREST CVR RH SIDE)

5ND-F7463-01-00

Unavailable

14

PLATE 1

5ND-F7445-00-00

$10.99

15

ARM 1

5UH-F741A-10-00

$5.49

16

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

17

BOLT

90109-06262-00

Unavailable

18

SCREW

90149-05034-00

Unavailable

19

NUT, S/L FLANGE

95607-05200-00

Unavailable

20

CABLE, BRAKE

1CT-F6361-00-00

Unavailable

21

CABLE, CONTROL 2

5GH-2637F-11-00

Unavailable

22

SPRING, TENSION

90506-20010-00

Unavailable
