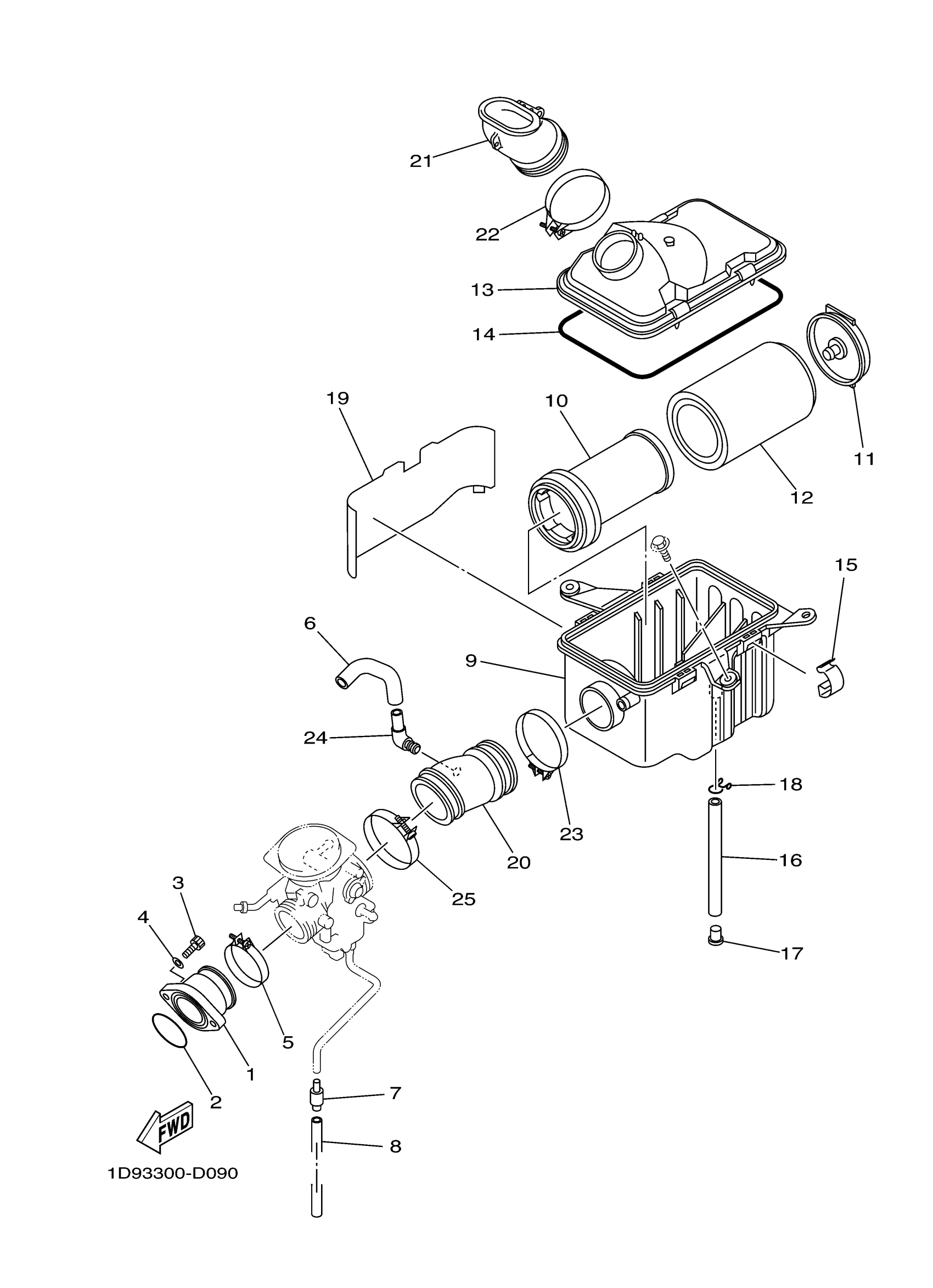

Yamaha YFM45FGPBG (GRIZZLY 450 EPS 4WD) 1CTB 2012 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5GH-13586-00-00

$79.99

2

O-RING (10L)

93210-44545-00

$13.49

3

BOLT, SOCKET

91317-08025-00

$8.49

4

WASHER, PLATE

90201-08070-00

$7.49

5

HOSE CLAMP ASSY

90450-47002-00

$8.49

6

PIPE

5ND-E4349-00-00

$6.99

7

PIPE 2,OVERFLOW

24W-14193-00-00

$41.99

8

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

9

CASE, AIR CLEANER

5UH-E4411-00-00

Unavailable

10

GUIDE

5UH-E4458-00-00

$19.99

11

PLATE,ELEMENT FIT (END CAP)

5UH-E4468-00-00

$6.99

12

ELEMENT, AIR FILTER

5UH-E4451-10-00

Unavailable

13

CAP, CLEANER CASE

5UH-E4412-00-00

Unavailable

14

SEAL

5UH-E4462-00-00

$5.49

15

CLIP, CAP FITTING

5UH-E4424-00-00

Unavailable

16

PIPE, DRAIN

5UH-E4769-10-00

Unavailable

17

PLUG, DRAIN

5UH-E4191-00-00

Unavailable

18

CLIP, DRAIN CLEANER

5UH-E4438-01-00

Unavailable

19

PROTECTOR

5ND-E442F-01-00

Unavailable

20

JOINT, AIR CLEANER

5ND-E4453-00-00

Unavailable

21

DUCT

5ND-E4437-02-00

Unavailable

22

HOSE CLAMP ASSY

90450-58002-00

Unavailable

23

HOSE CLAMP ASSY

90450-58002-00

Unavailable

24

PIPE

31A-14419-00-00

Unavailable

25

HOSE CLAMP ASSY

90450-56001-00

Unavailable
