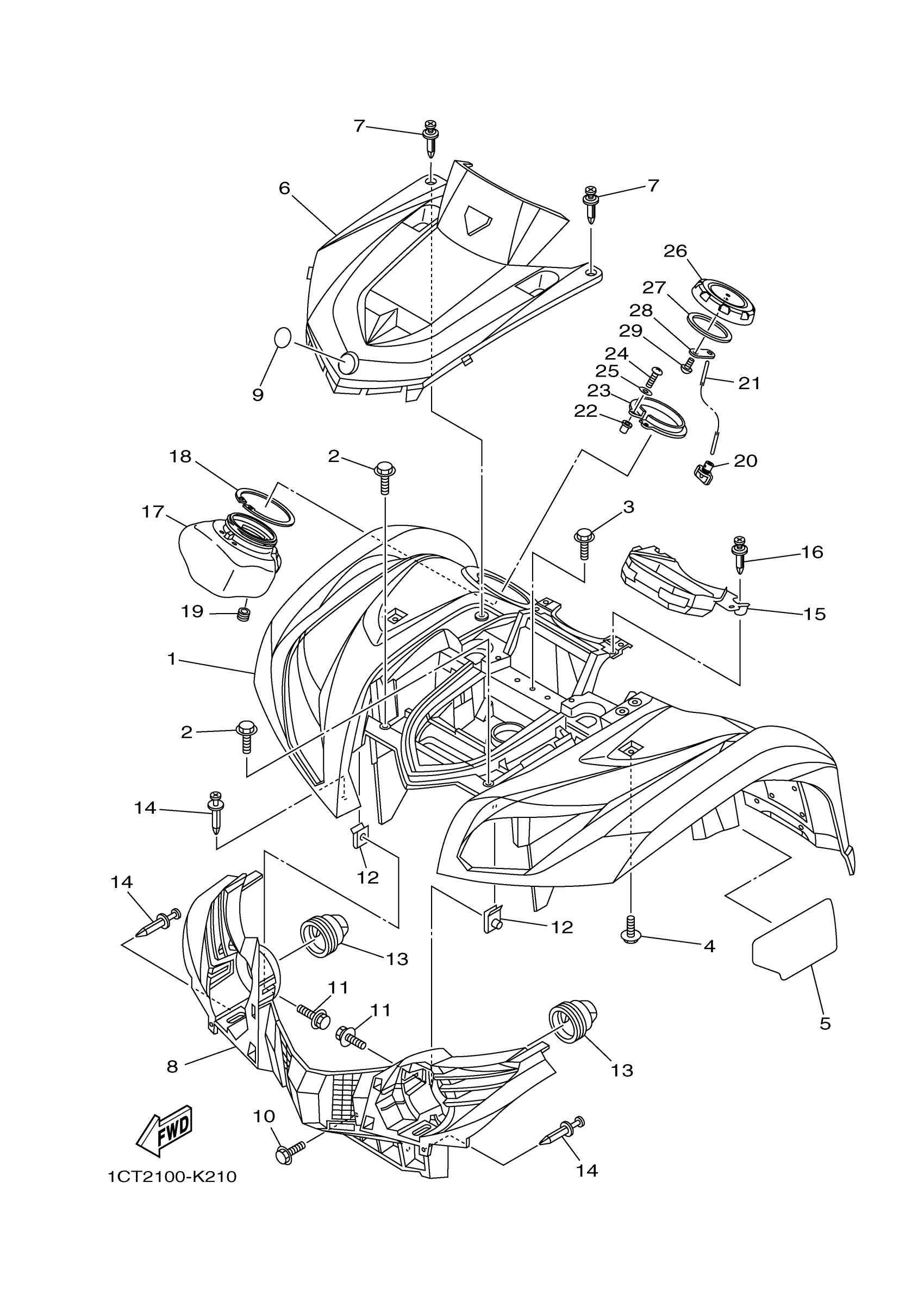

Yamaha YFM45FGPAL (GRIZZLY 450 EPS 4WD) 1CT8 2011 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY
37S-F1500-20-00
Unavailable
6
PANEL,FRONT
37S-F3391-C0-00
Unavailable
8
GRILLE, FRONT
37S-F8309-00-00
Unavailable
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
15
PANEL, CONSOLE 1
5ND-F837L-01-00
Unavailable
17
BOX 1
1HP-F838K-00-00
Unavailable
18
SEAL, BOX 1
3B4-2838M-00-00
Unavailable
19
GROMMET
90480-13004-00
Unavailable
20
PLUG, DRAIN
3B4-215A1-00-00
Unavailable
21
STOPPER, OPEN
3B4-2845L-00-00
Unavailable
22
NUT(1KT)
90179-05523-00
Unavailable
23
HOLDER
3B4-2839N-01-00
Unavailable
24
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
25
WASHER, PLAIN (646)
92990-05600-00
Unavailable
26
CAP
1HP-F151B-00-00
Unavailable
27
SEAL
3B4-28307-00-00
Unavailable
28
PLATE 2
3B4-28487-00-00
Unavailable
29
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
