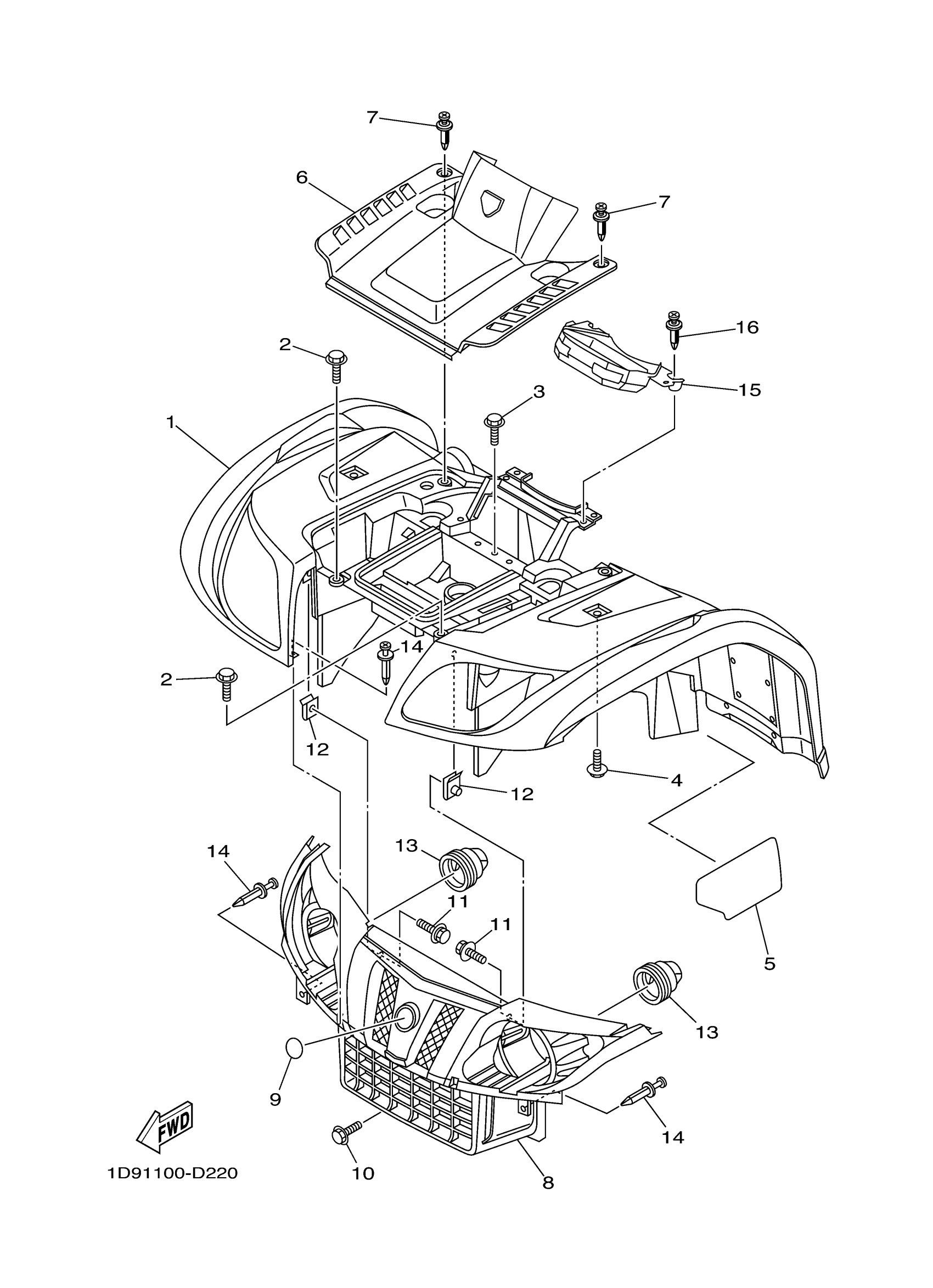

Yamaha YFM45FGOHW (GRIZZLY 450 OUTDOORSMAN EDITION) 1D9S 2007 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY (CAMO)

1D9-F1500-E1-00

Unavailable

2

BOLT, WITH WASHER

90119-06226-00

$8.49

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

BOLT, WITH WASHER

90119-06226-00

$8.49

5

SEAL 1

5ND-F1575-00-00

$11.99

6

PANEL,FRONT

5ND-F3391-02-00

Unavailable

7

RIVET

90269-06800-00

$2.18

8

GRILLE, FRONT

1D9-F8309-01-00

Unavailable

9

TUNING FORK MARK

5FU-F175B-01-00

$14.99

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

NUT, SPRING(4ES)

90183-06069-00

Unavailable

13

CAP

5UH-F8349-00-00

$14.49

14

RIVET

90269-06804-00

$2.13

15

PANEL, CONSOLE 1

5ND-F837L-01-00

Unavailable

16

RIVET

90269-06800-00

$2.18
