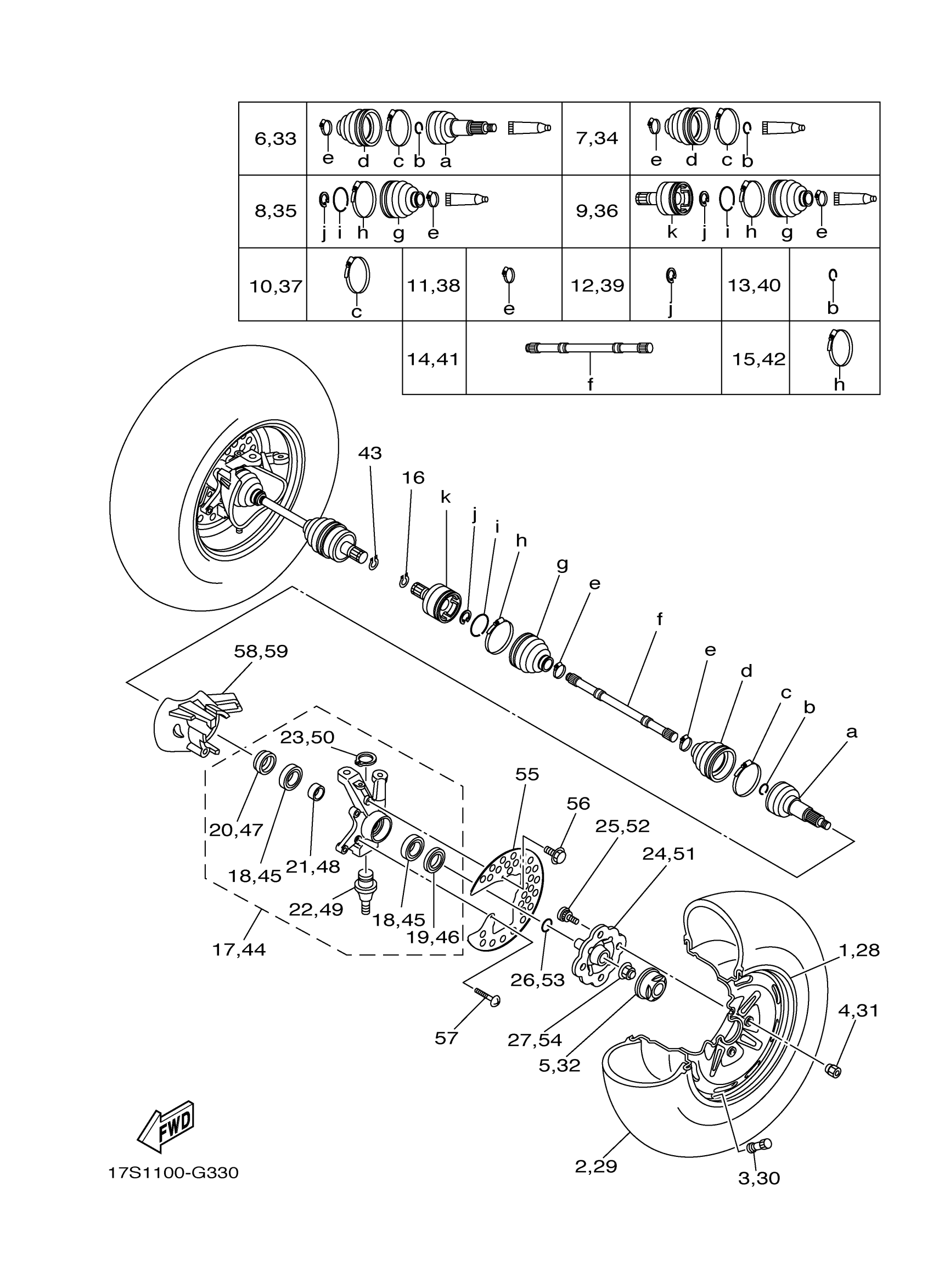

Yamaha YFM45FGHZ (GRIZZLY 450 4WD HUNTER) 37SC 2010 FRONT WHEEL Diagram
#
1
FRONT RIM (BLACK) 12 X 6
1D9-F5180-10-00
Unavailable
2
TIRE (AT25X8-12 M979)
94108-12812-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
9
DOUBLE OFF SET JOI
4S1-2510J-01-00
Unavailable
15
BOOT BAND
4S1-2511G-00-00
Unavailable
16
CIRCLIP(2HR)
93450-22119-00
Unavailable
17
STEERING KNUCKLE (L)
1D9-F3501-03-00
Unavailable
18
BEARING
93306-006Y2-00
Unavailable
19
OIL SEAL
93106-38046-00
Unavailable
20
OIL SEAL
93106-38047-00
Unavailable
21
COLLAR
90387-30008-00
Unavailable
22
BALL JOINT 1
37S-23549-01-00
Unavailable
23
CIRCLIP
93410-32075-00
Unavailable
24
HUB,FRONT
5ND-F5111-30-00
Unavailable
25
BOLT, SERRATION
90114-10014-00
Unavailable
26
O-RING(47X)
93210-27666-00
Unavailable
27
NUT
90179-20016-00
Unavailable
28
FRONT RIM (BLACK) 12 X 6
1D9-F5180-10-00
Unavailable
29
TIRE (AT25X8-12 M979)
94108-12812-00
Unavailable
30
VALVE, RIM
93900-00812-00
Unavailable
36
DOUBLE OFF SET JOI
4S1-2510J-01-00
Unavailable
41
SHAFT
4S1-2511E-00-00
Unavailable
42
BOOT BAND
4S1-2511G-00-00
Unavailable
43
CIRCLIP(2HR)
93450-22119-00
Unavailable
44
STEERING,KNUCKLE (R)
1D9-F3502-03-00
Unavailable
45
BEARING
93306-006Y2-00
Unavailable
46
OIL SEAL
93106-38046-00
Unavailable
47
OIL SEAL
93106-38047-00
Unavailable
48
COLLAR
90387-30008-00
Unavailable
49
BALL JOINT 1
37S-23549-01-00
Unavailable
50
CIRCLIP
93410-32075-00
Unavailable
51
HUB,FRONT
5ND-F5111-30-00
Unavailable
52
BOLT, SERRATION
90114-10014-00
Unavailable
53
O-RING(47X)
93210-27666-00
Unavailable
54
NUT
90179-20016-00
Unavailable
55
RING, WHEEL 1 (LEF
1D9-F514A-00-00
Unavailable
56
BOLT, FLANGE
95817-06012-00
Unavailable
57
SCREW, ROUND TAPPING
90160-05007-00
Unavailable
58
MUD GUARD 1
17S-F2327-00-00
Unavailable
59
MUD GUARD 2
17S-F2328-00-00
Unavailable
