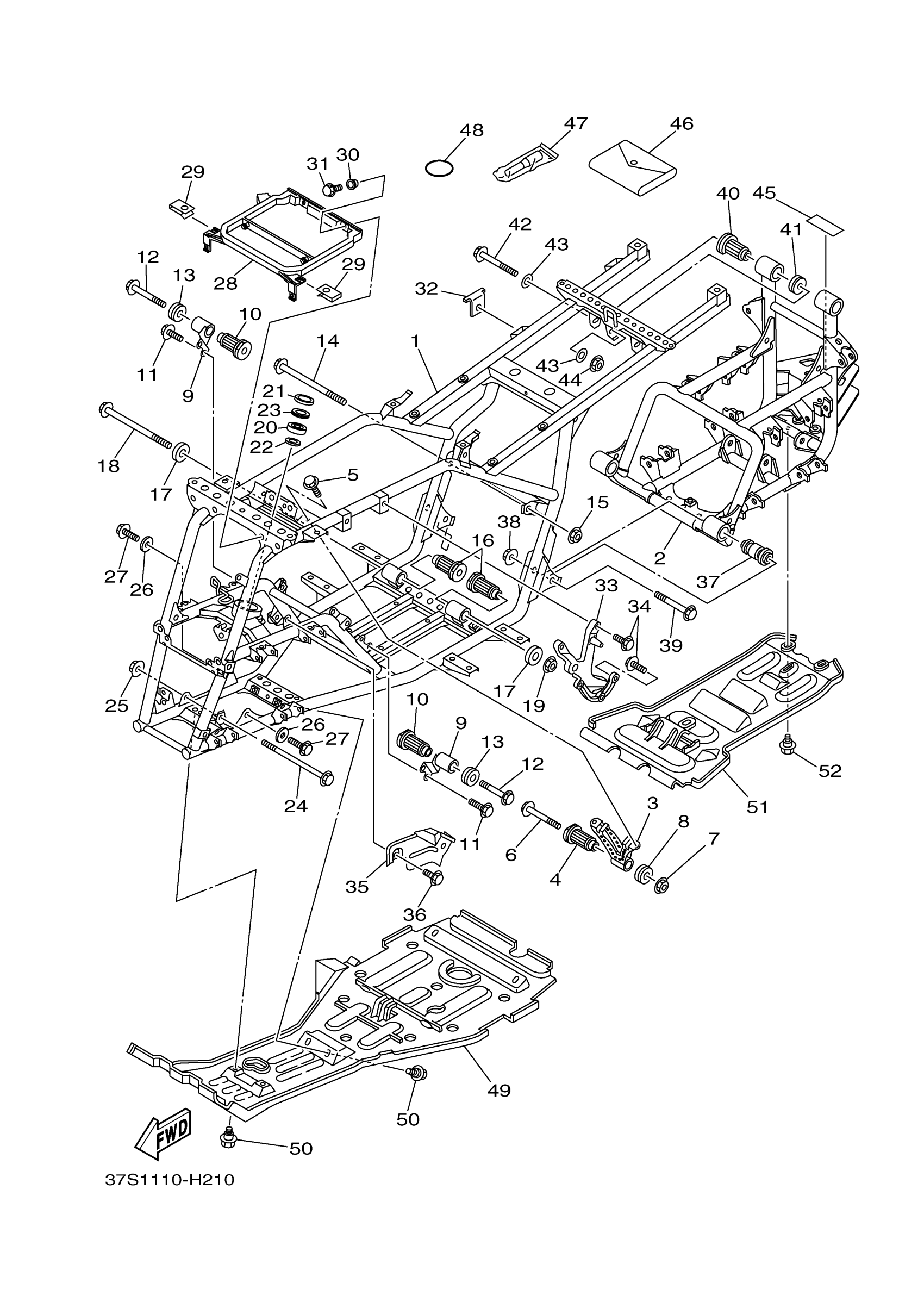

Yamaha YFM45FGHZ (GRIZZLY 450 4WD HUNTER) 37SC 2010 FRAME Diagram
#
1
FRAME
17S-F1110-13-00
Unavailable
2
FRAME SUB COMP.
17S-F111B-11-00
Unavailable
3
STAY, ENGINE 2
5ND-F1315-01-00
Unavailable
4
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
9
STAY, ENGINE 3
5ND-F1316-01-00
Unavailable
10
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
16
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
17
DAMPER
5ND-F1488-00-00
Unavailable
20
BEARING
93306-203YN-00
Unavailable
21
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
22
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
23
HOLDER, BEARING
2GU-23872-00-00
Unavailable
24
BOLT, FLANGE
90105-10230-00
Unavailable
25
NUT, SELF-LOCKING
90185-10011-00
Unavailable
26
WASHER, PLATE
90201-10035-00
Unavailable
27
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
28
STAY, FENDER 1
5ND-F1513-00-00
Unavailable
29
NUT, SPRING(4ES)
90183-06069-00
Unavailable
30
COLLAR (8G8)
90387-06681-00
Unavailable
31
BOLT, FLANGE
95817-06012-00
Unavailable
32
STAY, MUFFLER 2
5ND-F1446-01-00
Unavailable
33
ARM
5ND-F1585-01-00
Unavailable
34
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
35
PROTECTOR 1
5ND-F2825-00-00
Unavailable
36
BOLT, FLANGE
95812-06010-00
Unavailable
37
BUSH 1
5ND-F2123-00-00
Unavailable
38
NUT, SELF-LOCKING
95602-12200-00
Unavailable
39
BOLT, FLANGE
90105-12057-00
Unavailable
40
DAMPER, ENGINE MOUNT 3
1D9-E5336-00-00
Unavailable
42
BOLT, FLANGE
90105-10272-00
Unavailable
43
WASHER, PLATE
90201-10035-00
Unavailable
45
LABEL 7
37S-F151K-00-00
Unavailable
46
TOOL KIT
5ND-F8100-00-00
Unavailable
47
GAUGE, AIR
1NV-2811A-01-00
Unavailable
48
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
49
GUARD, ENGINE 1
5ND-F147A-03-00
Unavailable
50
BOLT
90109-06172-00
Unavailable
51
GUARD COMP.
1D9-F840K-01-00
Unavailable
52
BOLT
90109-06172-00
Unavailable
