Description

Price

1

HANDLEBAR

5FU-F6111-12-00

$68.99

2

GRIP

5FU-F6241-10-00

$17.49

3

PROTECTOR,HANDLEBAR

5ND-F6124-01-00

$46.99

4

THROTTLE LEVER ASSY

5KM-26250-23-00

$232.99

5

CAP, GEAR

4KB-2628F-10-00

$30.99

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW(3HE)

90149-04278-00

$2.39

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

NUT, U

95617-05100-00

$9.49

10

NUT, HEXAGON SMALL

95317-05700-00

$8.49

11

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

12

SPRING

1NV-26304-00-00

$11.99

13

GASKET

4KB-2628G-00-00

$13.49

14

WASHER

1NV-26129-00-00

$6.99

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

COLLAR

1NV-2625K-00-00

Unavailable

17

SWITCH, HANDLE 1

5KM-83976-23-00

Unavailable

18

SCREW, PAN HEAD

98517-04016-00

Unavailable

19

WASHER(JF2)

92907-04600-00

Unavailable

20

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

21

SCREW, PAN HEAD

98517-05020-00

$4.25

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

CABLE, THROTTLE 1

5GH-26311-11-00

Unavailable

24

CABLE,STARTER 1

5VH-F6331-01-00

Unavailable

25

WIRE, BRAKE 1

4S2-F6341-00-00

Unavailable

26

NUT, ADJUSTING

4S1-F6343-00-00

Unavailable

27

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

28

PIN 1562723700

90249-12008-00

Unavailable

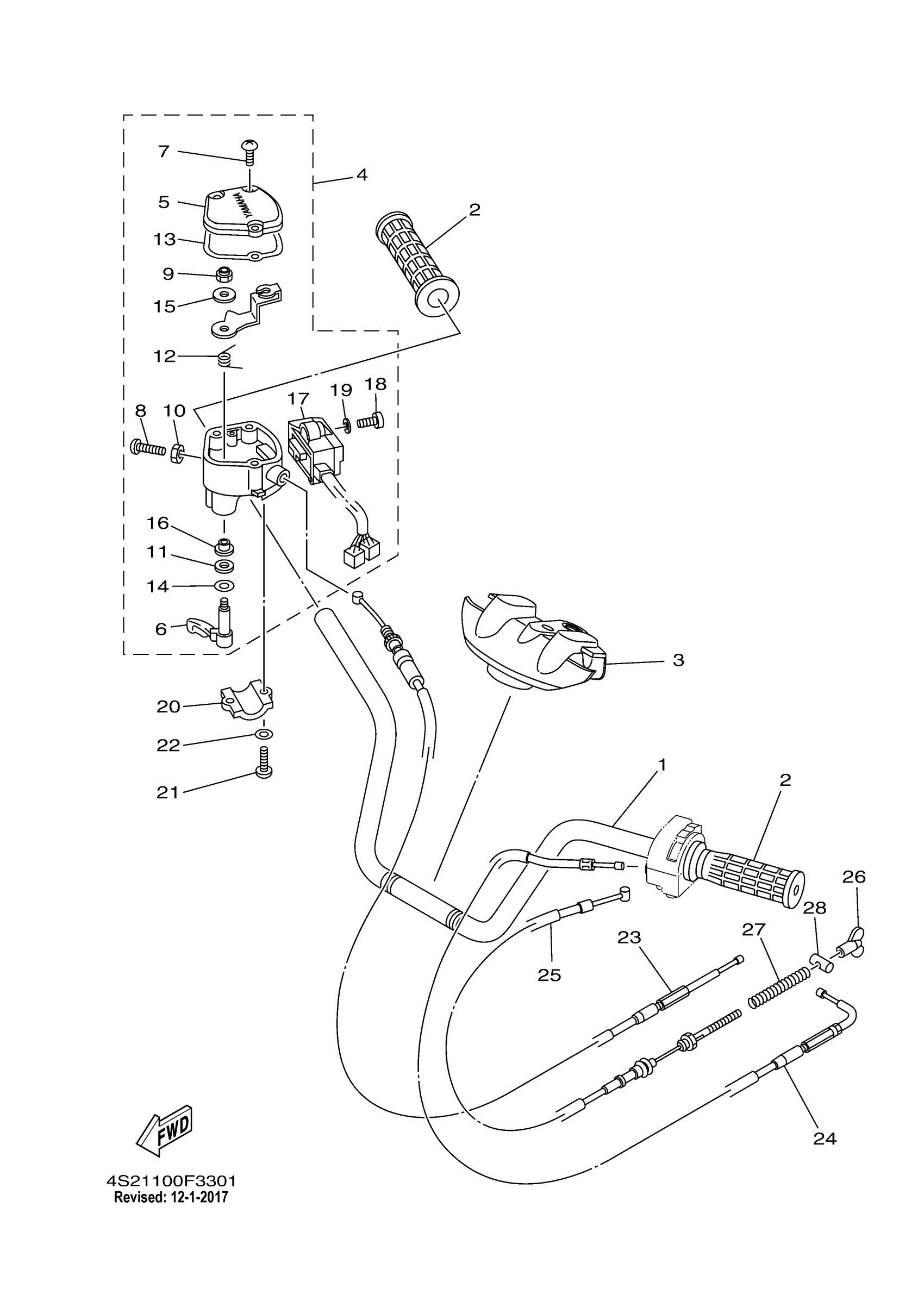

Yamaha YFM45FGHY (GRIZZLY 450 4WD HUNTER) 37S5 2009 STEERING HANDLE CABLE Diagram

HANDLEBAR

GRIP

PROTECTOR,HANDLEBAR

THROTTLE LEVER ASSY

CAP, GEAR

LEVER, THROTTLE

SCREW(3HE)

SCREW, PAN HEAD

NUT, U

NUT, HEXAGON SMALL

OIL SEAL (9X15X4-256)

SPRING

GASKET

WASHER

. WASHER, SPECIAL

COLLAR

SWITCH, HANDLE 1

SCREW, PAN HEAD

WASHER(JF2)

HOLDER, LEVER LOWER

SCREW, PAN HEAD

WASHER, PLAIN (646)

CABLE, THROTTLE 1

CABLE,STARTER 1

WIRE, BRAKE 1

NUT, ADJUSTING

SPRING, COMPRESSION (29U)

PIN 1562723700
