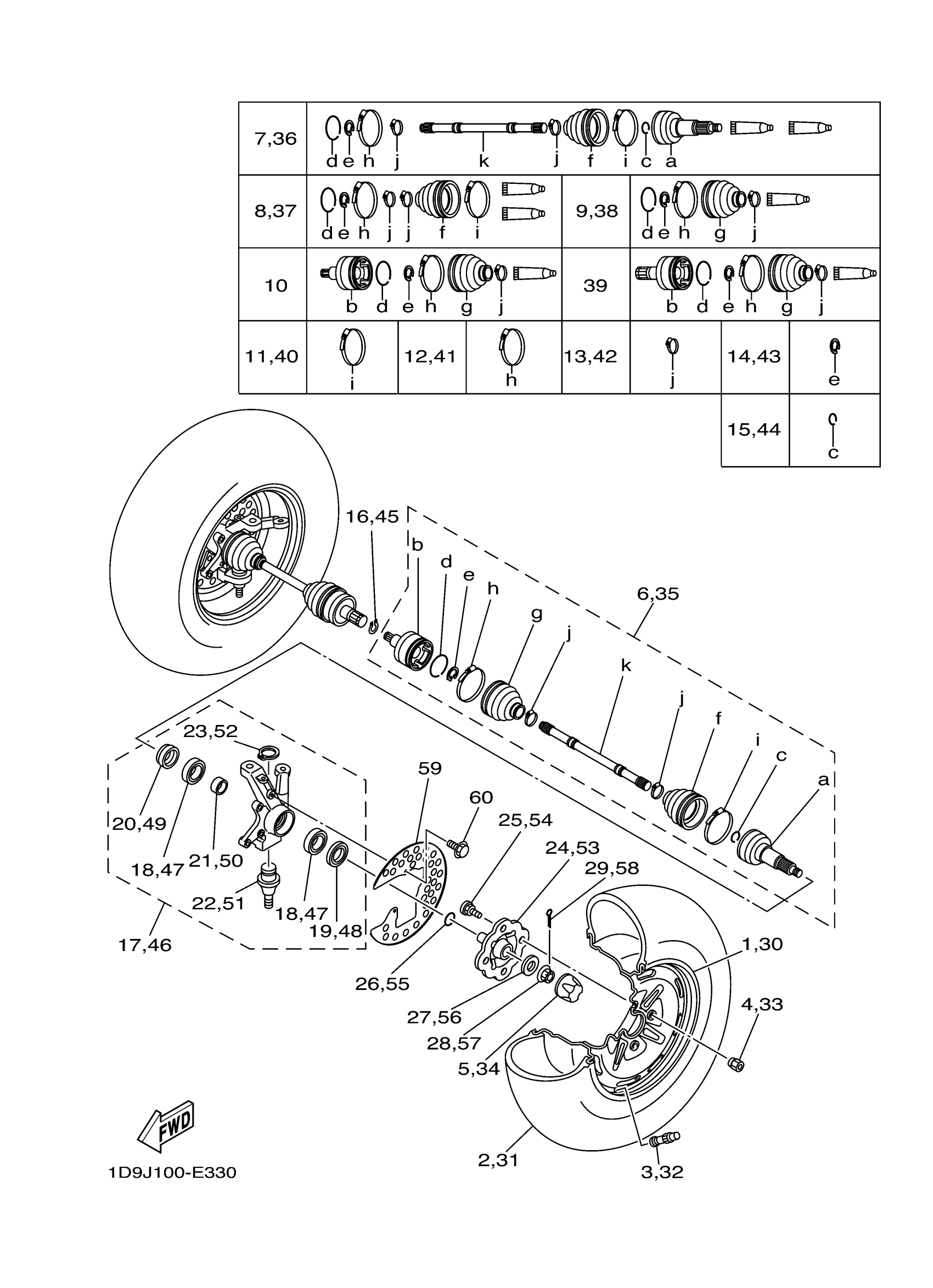

Yamaha YFM45FGHW (GRIZZLY 450 HUNTER) 1D9S 2007 FRONT WHEEL Diagram
#
1
FRONT RIM (BLACK) 12 X 6
1D9-F5180-10-00
Unavailable
2
TIRE (AT25X8-12 M979)
94108-12812-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
6
DRIVE SHAFT ASSY
5ND-F518F-00-00
Unavailable
7
BALL JOINT SET
5ND-F510F-00-00
Unavailable
12
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
16
CLIP, DRIVE SHAFT
5KM-45531-10-00
Unavailable
17
STEERING KNUCKLE (L)
1D9-F3501-03-00
Unavailable
18
BEARING
93306-006Y2-00
Unavailable
19
OIL SEAL
93106-38046-00
Unavailable
20
OIL SEAL
93106-38047-00
Unavailable
21
COLLAR
90387-30008-00
Unavailable
22
BALL JOINT 1
37S-23549-01-00
Unavailable
23
CIRCLIP
93410-32075-00
Unavailable
24
HUB,FRONT
5ND-F5111-30-00
Unavailable
25
BOLT, SERRATION
90114-10014-00
Unavailable
26
O-RING(47X)
93210-27666-00
Unavailable
27
WASHER, PLATE
90201-16804-00
Unavailable
28
NUT, CASTLE
90171-16001-00
Unavailable
29
PIN, COTTER
91490-30030-00
Unavailable
30
FRONT RIM (BLACK) 12 X 6
1D9-F5180-10-00
Unavailable
31
TIRE (AT25X8-12 M979)
94108-12812-00
Unavailable
32
VALVE, RIM
93900-00812-00
Unavailable
35
DRIVE SHAFT ASSY
5ND-F518G-00-00
Unavailable
36
BALL JOINT SET
5ND-F510F-00-00
Unavailable
39
DOUBLE OFF SET JOINT
5KM-2510J-10-00
Unavailable
41
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
45
CIRCLIP(2HR)
93450-22119-00
Unavailable
46
STEERING,KNUCKLE (R)
1D9-F3502-03-00
Unavailable
47
BEARING
93306-006Y2-00
Unavailable
48
OIL SEAL
93106-38046-00
Unavailable
49
OIL SEAL
93106-38047-00
Unavailable
50
COLLAR
90387-30008-00
Unavailable
51
BALL JOINT 1
37S-23549-01-00
Unavailable
52
CIRCLIP
93410-32075-00
Unavailable
53
HUB,FRONT
5ND-F5111-30-00
Unavailable
54
BOLT, SERRATION
90114-10014-00
Unavailable
55
O-RING(47X)
93210-27666-00
Unavailable
56
WASHER, PLATE
90201-16804-00
Unavailable
57
NUT, CASTLE
90171-16001-00
Unavailable
58
PIN, COTTER
91490-30030-00
Unavailable
59
RING, WHEEL 1 (LEF
1D9-F514A-00-00
Unavailable
60
BOLT, FLANGE
95817-06012-00
Unavailable
