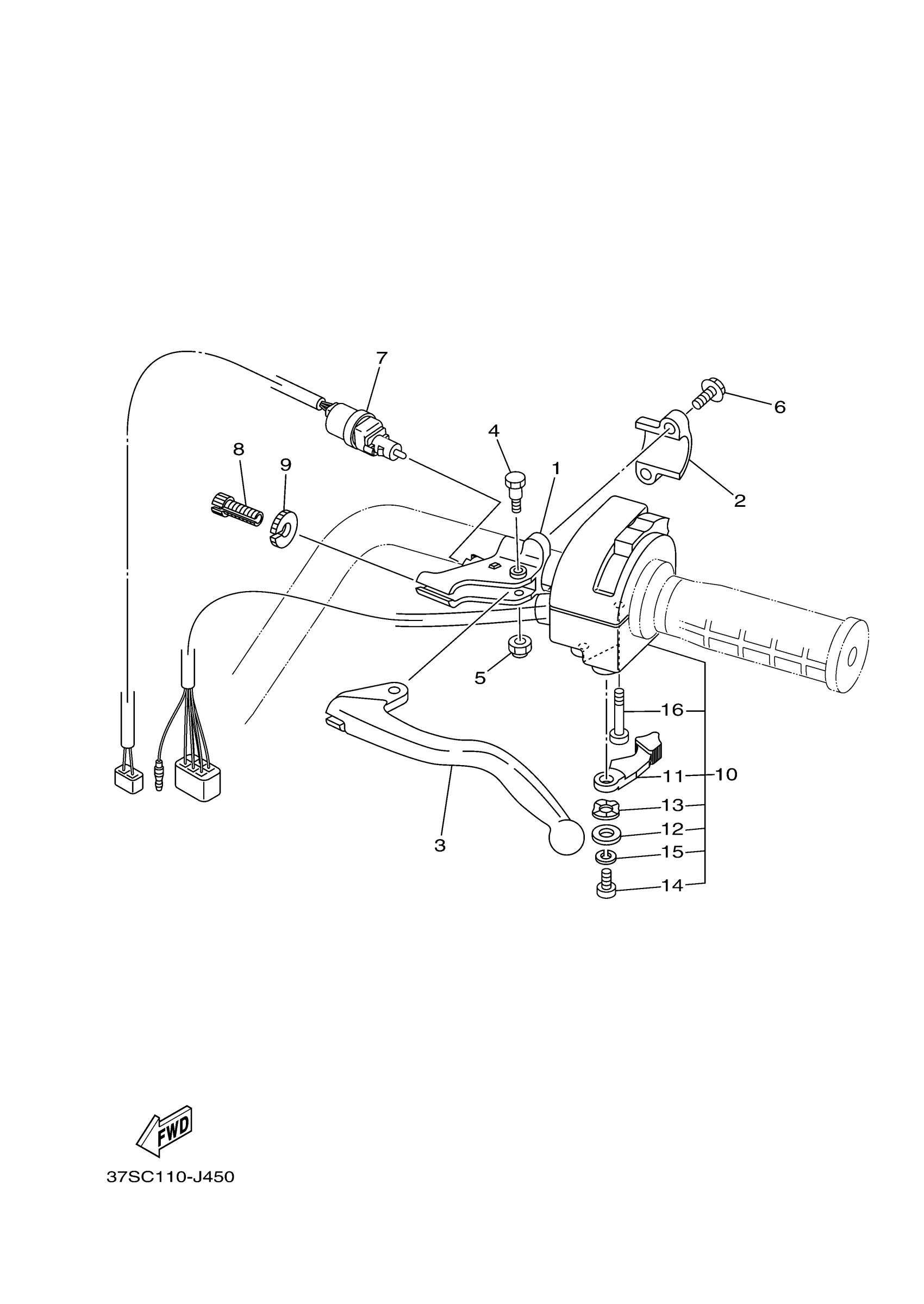

Yamaha YFM45FGHD (GRIZZLY 450 4WD HUNTER) 1CUH 2013 HANDLE SWITCH LEVER Diagram

Description

Price

HOLDER, LEVER 1

1YW-82911-10-00

$46.99

HOLDER, LEVER LOWER 1

5LP-82913-11-00

Unavailable

LEVER 1

2HT-83912-01-00

$39.99

BOLT (2YK1)

90109-06799-00

$4.99

NUT, SELF-LOCKING

95617-06100-00

$8.49

. BOLT, FLANGE

95027-06020-00

Unavailable

FRONT STOP SWITCH ASSY

3FA-83980-03-00

$71.99

BOLT

90123-08002-00

$10.49

NUT

90179-08030-00

$5.49

SWITCH, HANDLE 4

5KM-83972-01-00

$144.99

LEVER, STARTER

5KM-83941-00-00

$15.49

WASHER, SPECIAL

1UY-83909-00-00

$7.99

WASHER, STARTER

3L4-83943-00-00

$7.99

SCREW, PAN

98517-05012-00

$4.73

WASHER(3SX)

92907-05100-00

$8.49

SCREW, PAN HEAD

98517-05030-00

Unavailable
