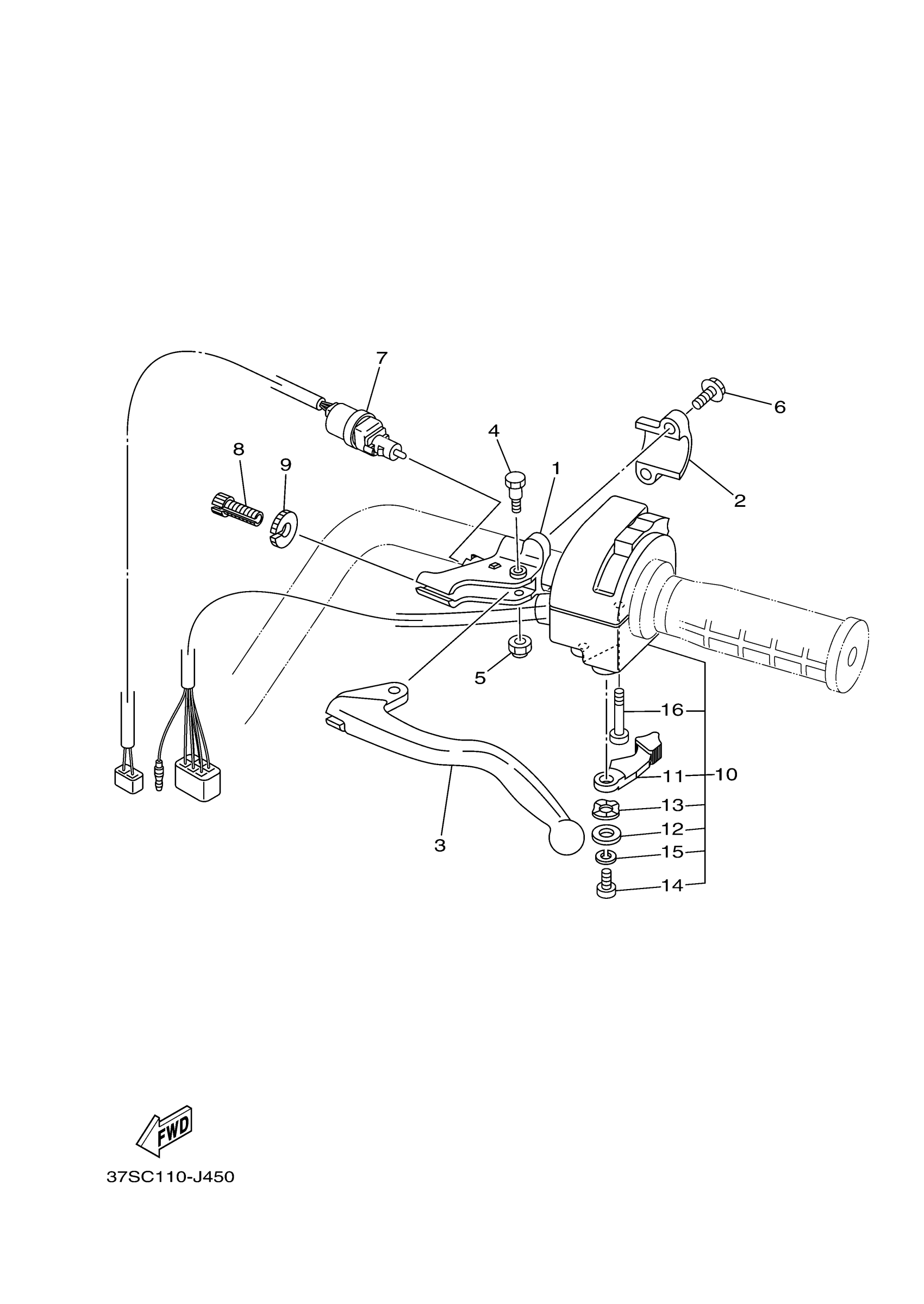

Yamaha YFM45FGHB (GRIZZLY 450 4WD HUNTER) 1CUA 2012 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1YW-82911-10-00

$41.29

2

HOLDER, LEVER LOWER 1

5LP-82913-11-00

Unavailable

3

LEVER 1

2HT-83912-01-00

$32.59

4

BOLT (2YK1)

90109-06799-00

$4.23

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

. BOLT, FLANGE

95027-06020-00

$0.93

7

FRONT STOP SWITCH ASSY

3FA-83980-03-00

$60.01

8

BOLT

90123-08002-00

$8.57

9

NUT

90179-08030-00

$3.63

10

SWITCH, HANDLE 4

5KM-83972-01-00

Unavailable

11

LEVER, STARTER

5KM-83941-00-00

$11.00

12

WASHER, SPECIAL

1UY-83909-00-00

$6.03

13

WASHER, STARTER

3L4-83943-00-00

$6.03

14

SCREW, PAN

98517-05012-00

$3.65

15

WASHER(3SX)

92907-05100-00

$5.76

16

SCREW, PAN HEAD

98517-05030-00

Unavailable
