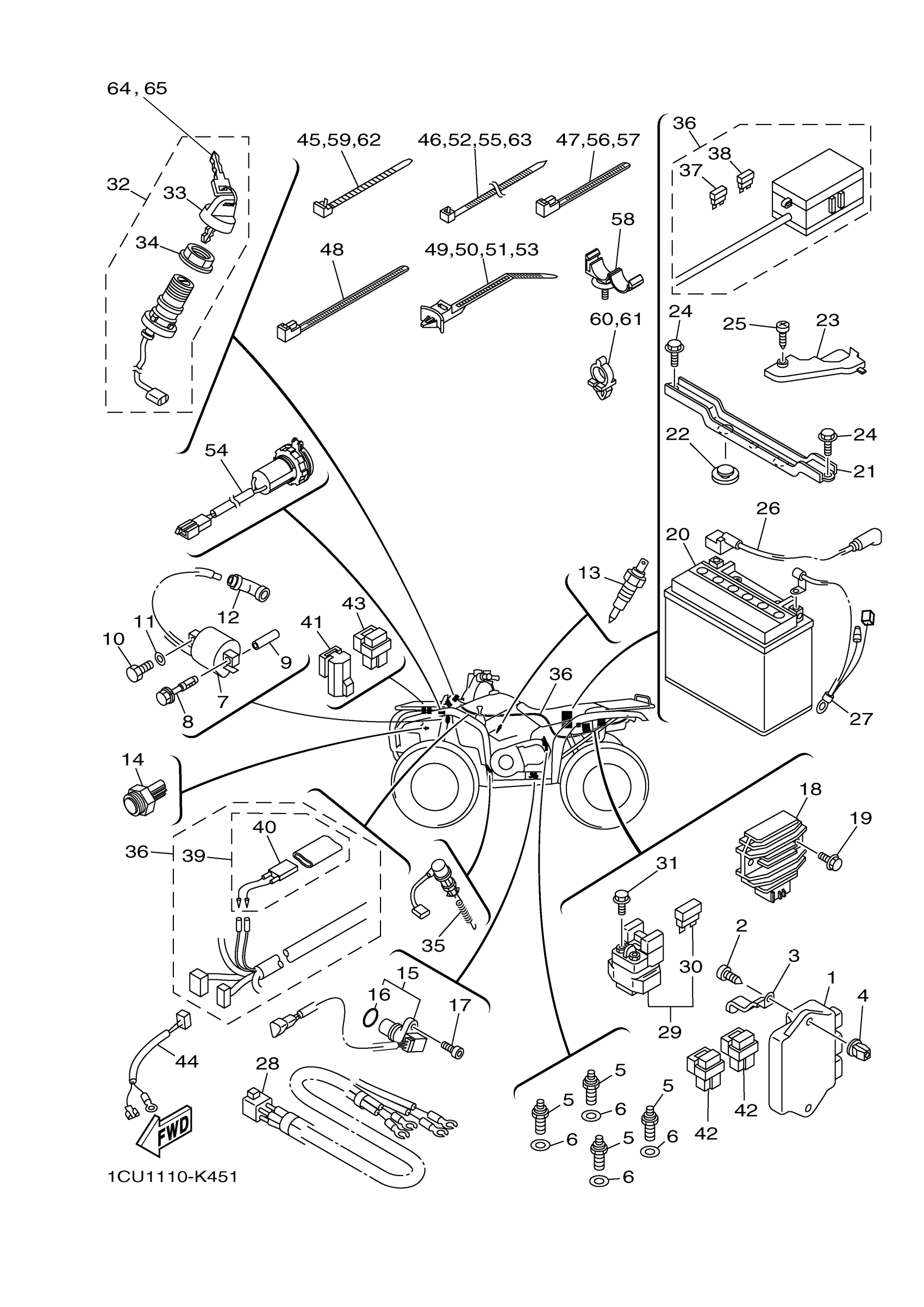

Yamaha YFM45FGHA (GRIZZLY 450 4WD HUNTER) 1CU5 2011 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

17S-85540-00-00

Unavailable

2

SCREW, TAPPING

97702-60420-00

$0.64

3

CLAMP

90462-06016-00

$5.60

4

PLUG(4BP)

90338-08226-00

$2.17

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

8

BOLT

90109-06865-00

Unavailable

9

SPACER

5UH-H1318-00-00

Unavailable

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

PLUG CAP ASSY

3NS-82370-00-00

$37.99

13

THERMO SWITCH ASSY

5KM-82560-00-00

Unavailable

14

THERMO SWITCH ASSY

5ND-82560-11-00

$31.99

15

SENSOR, SPEED

3C2-83755-11-00

$129.99

16

O-RING

4D9-81168-00-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

Unavailable

19

BOLT, FLANGE

90105-06833-00

Unavailable

20

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

21

BRACKET, BATTERY

5ND-H2128-02-00

Unavailable

22

PAD, BATTERY

371-82121-00-00

Unavailable

23

COVER, LEAD WIRE

5ND-H2119-00-00

Unavailable

24

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable

25

SCREW, TAPPING

97702-60016-00

Unavailable

26

WIRE, PLUS LEAD

5ND-H2115-00-00

Unavailable

27

WIRE, MINUS LEAD

5ND-H2116-00-00

Unavailable

28

WIRE, LEAD

5ND-82541-01-00

Unavailable

29

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

Unavailable

30

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

31

BOLT, FLANGE

95022-06008-00

Unavailable

32

MAIN SWITCH ASSY

5ND-82510-01-00

Unavailable

33

CAP, KEY

3HN-82579-00-00

Unavailable

34

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

35

STOP SWITCH ASSY

4KB-82530-11-00

Unavailable

36

WIRE HARNESS ASSY

1CU-82590-00-00

Unavailable

37

FUSE (15A)

67F-82151-50-00

Unavailable

38

. FUSE (10A)

67F-82151-40-00

Unavailable

39

CIRCUIT BREAKER ASSY

5ND-82180-00-00

Unavailable

40

THERMO SWITCH ASSY

5ND-82560-00-00

Unavailable

41

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

42

RELAY ASSY

5DM-81950-01-00

Unavailable

43

RELAY ASSY

5DM-81950-01-00

Unavailable

44

WIRE, SUB LEAD

5KM-82509-10-00

Unavailable

45

CLAMP

90464-51800-00

Unavailable

46

CLAMP

90464-48800-00

Unavailable

47

CLAMP(JN6)

90464-31827-00

Unavailable

48

CLAMP(JN6)

90464-40825-00

Unavailable

49

CLAMP

90464-38800-00

Unavailable

50

CLAMP

90464-38800-00

Unavailable

51

CLAMP

90464-38800-00

Unavailable

52

CLAMP

90464-48800-00

Unavailable

53

CLAMP

90464-38800-00

Unavailable

54

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

55

CLAMP

90464-48800-00

Unavailable

56

CLAMP(JN6)

90464-31827-00

Unavailable

57

CLAMP(JN6)

90464-31827-00

Unavailable

58

CLAMP

90464-12830-00

Unavailable

59

CLAMP

90464-51800-00

Unavailable

60

CLAMP

90464-12830-00

Unavailable

61

CLAMP

90464-12830-00

Unavailable

62

CLAMP

90464-51800-00

Unavailable

63

CLAMP

90464-48800-00

Unavailable

64

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

65

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
