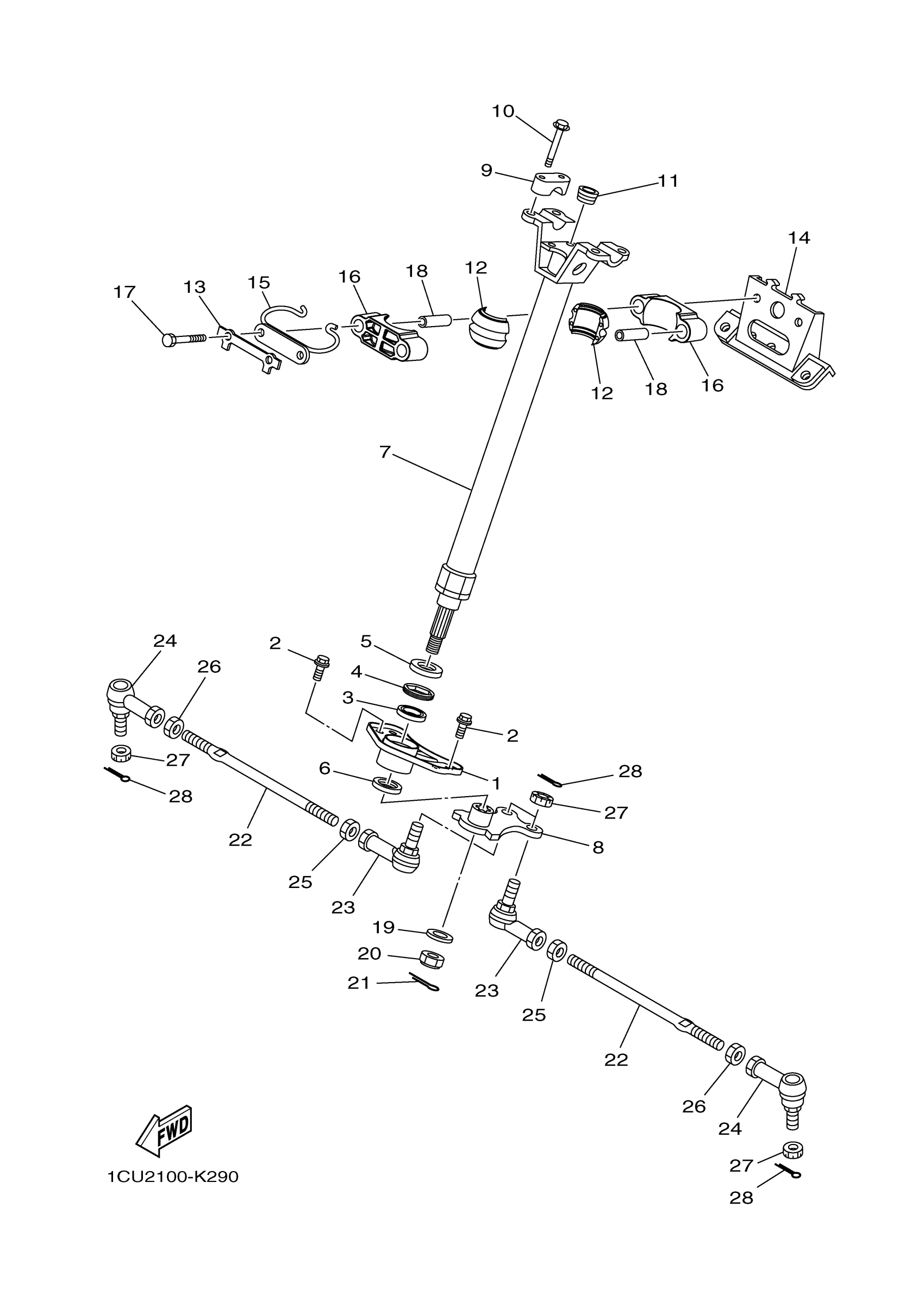

Yamaha YFM45FGBL (GRIZZLY 450 4WD) 1CU60 2012 STEERING Diagram

#

Description
Price

1

BRACKET, STEERING

1CU-F131H-00-00

$27.99

2

BOLT, FLANGE

90105-08237-00

$3.28

3

BEARING

93306-203YN-00

$11.49

4

OIL SEAL (25X44X6-810)

93102-25081-00

$5.60

5

OIL SEAL (25X36X8-334)

93102-25099-00

$13.49

6

HOLDER, BEARING

2GU-23872-00-00

$25.99

7

COLUMN, STEERING 2

5ND-F3813-11-00

$155.99

8

ARM,PITMAN

5ND-F3816-12-00

$32.99

9

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

10

BOLT, FLANGE

95812-08030-00

$3.81

11

PLUG, TAPER(2HR)

90336-28053-00

$10.49

12

PLANE BEARING, STE

1CT-F3812-00-00

$7.99

13

WASHER, LOCK 1

1CT-F3894-00-00

Unavailable

14

BRACKET, STEERING

1CT-F253F-00-00

Unavailable

15

BRACKET, STEERING

1CT-F3868-00-00

$8.99

16

BRACKET, STEERING

1CT-F1957-00-00

Unavailable

17

BOLT

97012-08080-00

Unavailable

18

COLLAR, 2

1CT-F1545-01-00

Unavailable

19

WASHER, PLATE

90201-14021-00

Unavailable

20

NUT, SELF-LOCKING

90185-14009-00

Unavailable

21

PIN, COTTER

91490-20035-00

Unavailable

22

ROD, TIE

37S-23831-00-00

Unavailable

23

JOINT, UNIVERSAL 1

37S-23841-00-00

Unavailable

24

JOINT, UNIVERSAL 2

37S-23845-00-00

Unavailable

25

NUT 1

37S-23833-00-00

Unavailable

26

NUT 2

37S-23834-00-00

Unavailable

27

NUT, CASTLE

90171-12001-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable
