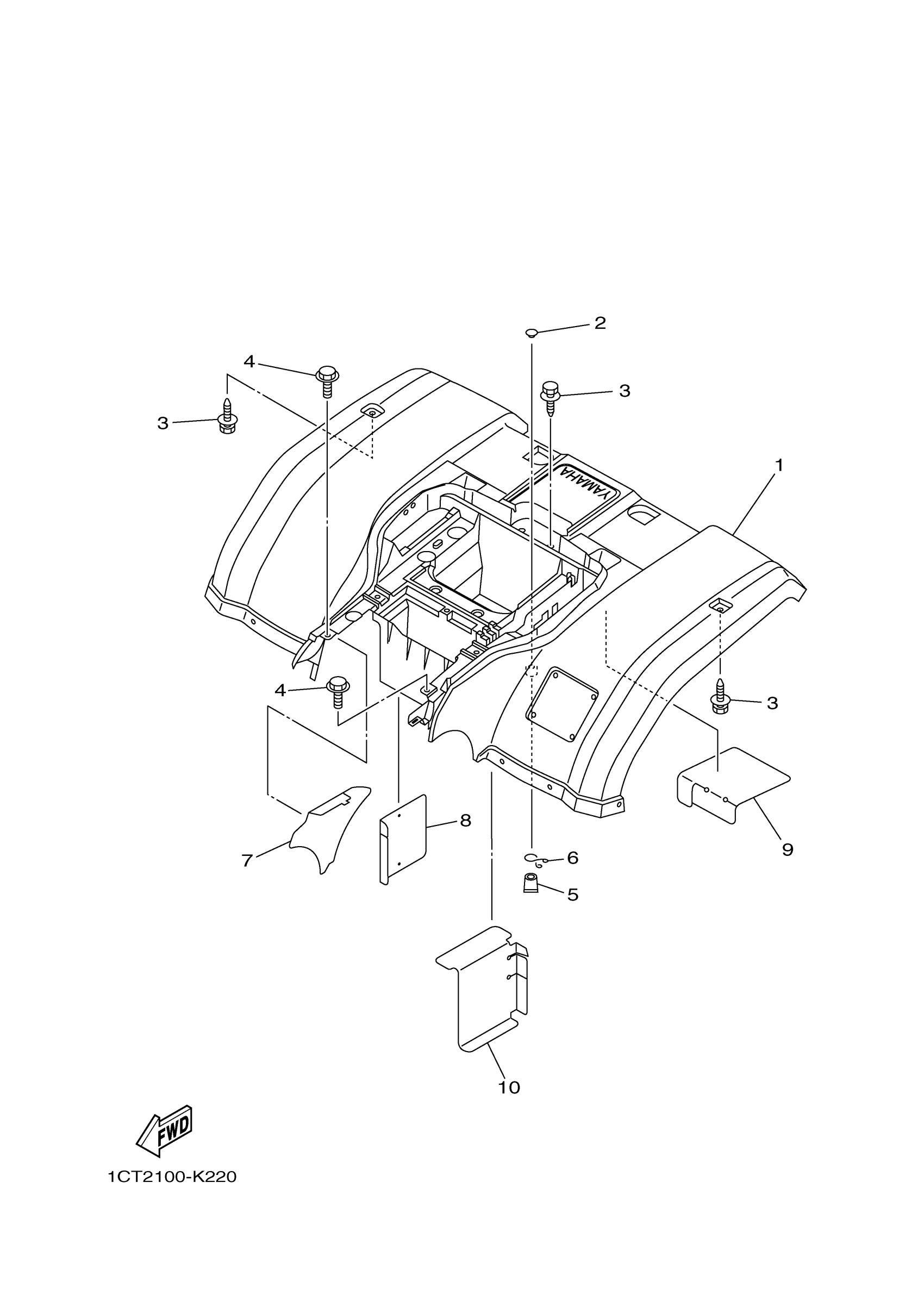

Yamaha YFM45FGBL (GRIZZLY 450 4WD) 1CU60 2012 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER ASSY. (PASTEL DEEP GREEN)

5ND-F1600-W1-00

Unavailable

2

PLUG

90338-09801-00

$1.26

3

BOLT, WITH WASHER

90119-06157-00

$6.23

4

BOLT, WITH WASHER

90119-06159-00

$5.86

5

PIPE, DRAIN

5BF-1443E-00-00

$3.26

6

CLIP

90467-160A4-00

$6.15

7

COVER, REAR FENDER

5ND-F163A-02-00

Unavailable

8

COVER, REAR FENDER 2

1CT-F163E-00-00

$4.76

9

PROTECTOR

5ND-F1652-00-00

$3.68

10

COVER, REAR FENDER 3

5ND-F163F-00-00

Unavailable
