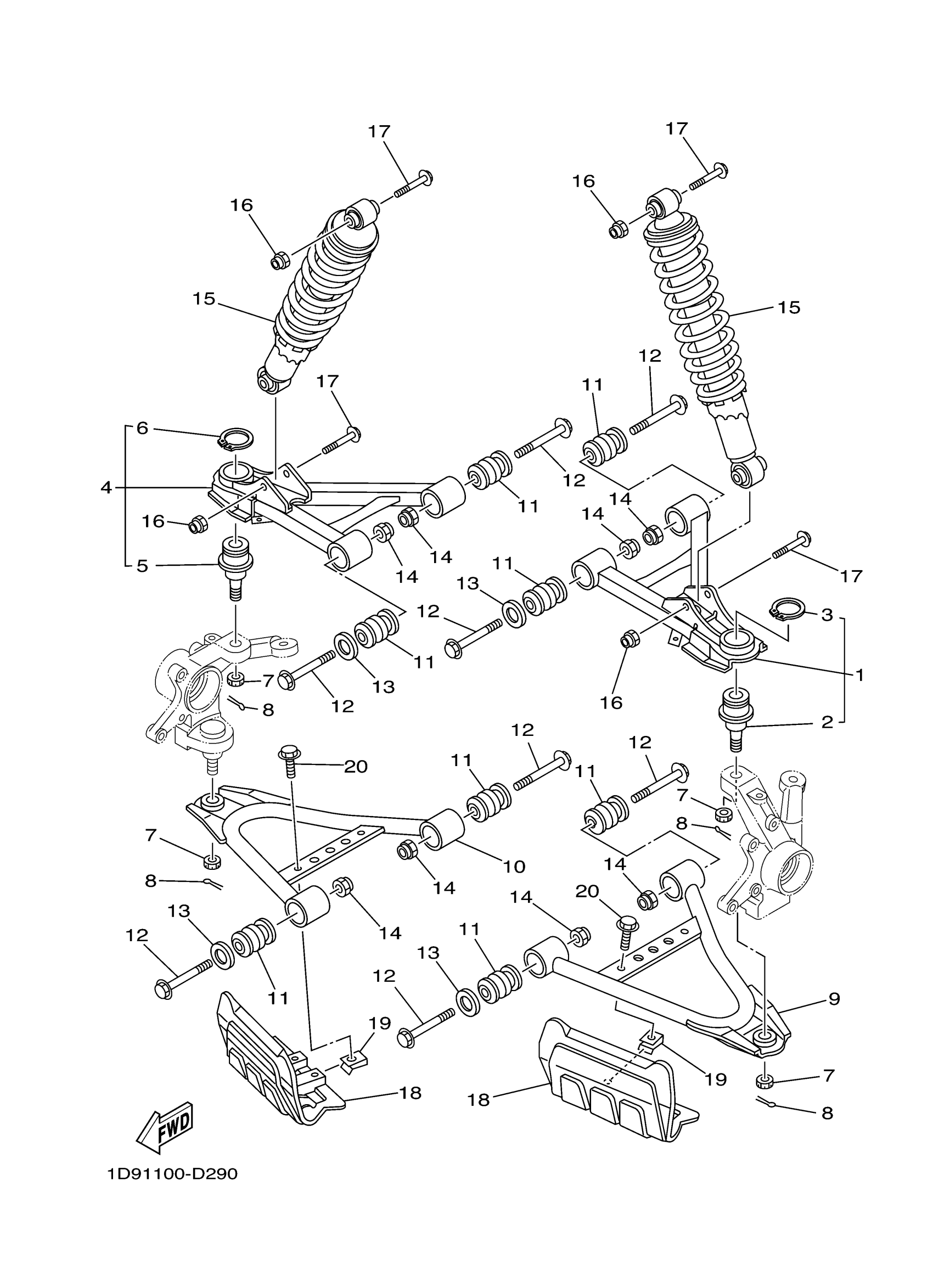

Yamaha YFM45FAV (KODIAK 450 4WD) 1D9B 2006 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRT. UPPER ARM (L)

5ND-F3540-13-00

$169.65

2

BALL JOINT 1

37S-23549-01-00

$64.63

3

CIRCLIP

93410-32075-00

$6.51

4

FRT. UPPER ARM (R)

5ND-F3550-13-00

$114.75

5

BALL JOINT 1

37S-23549-01-00

$64.63

6

CIRCLIP

93410-32075-00

$6.51

7

NUT, CASTLE

90171-12001-00

$2.66

8

PIN, COTTER

91490-25020-00

$2.73

9

ARM,FR. LWR. LH.

1D9-F357A-00-00

Unavailable

10

ARM,FR. LWR. RH.

1D9-F358A-00-00

Unavailable

11

BUSH

2HR-23526-00-00

$17.03

12

BOLT, FLANGE

90105-10267-00

$7.23

13

WASHER

5KM-22149-00-00

$6.15

14

NUT, SELF-LOCKING

90185-10012-00

$2.78

15

SHOCK ABSORBER ASSY

1D9-F3350-00-00

Unavailable

16

NUT, SELF-LOCKING

90185-10012-00

$2.78

17

BOLT, FLANGE

90105-10841-00

Unavailable

18

COVER, LOWER 1

5ND-F3123-00-00

$17.03

19

NUT, SPRING(4ES)

90183-06069-00

$5.69

20

BOLT, FLANGE

95817-06012-00

Unavailable
