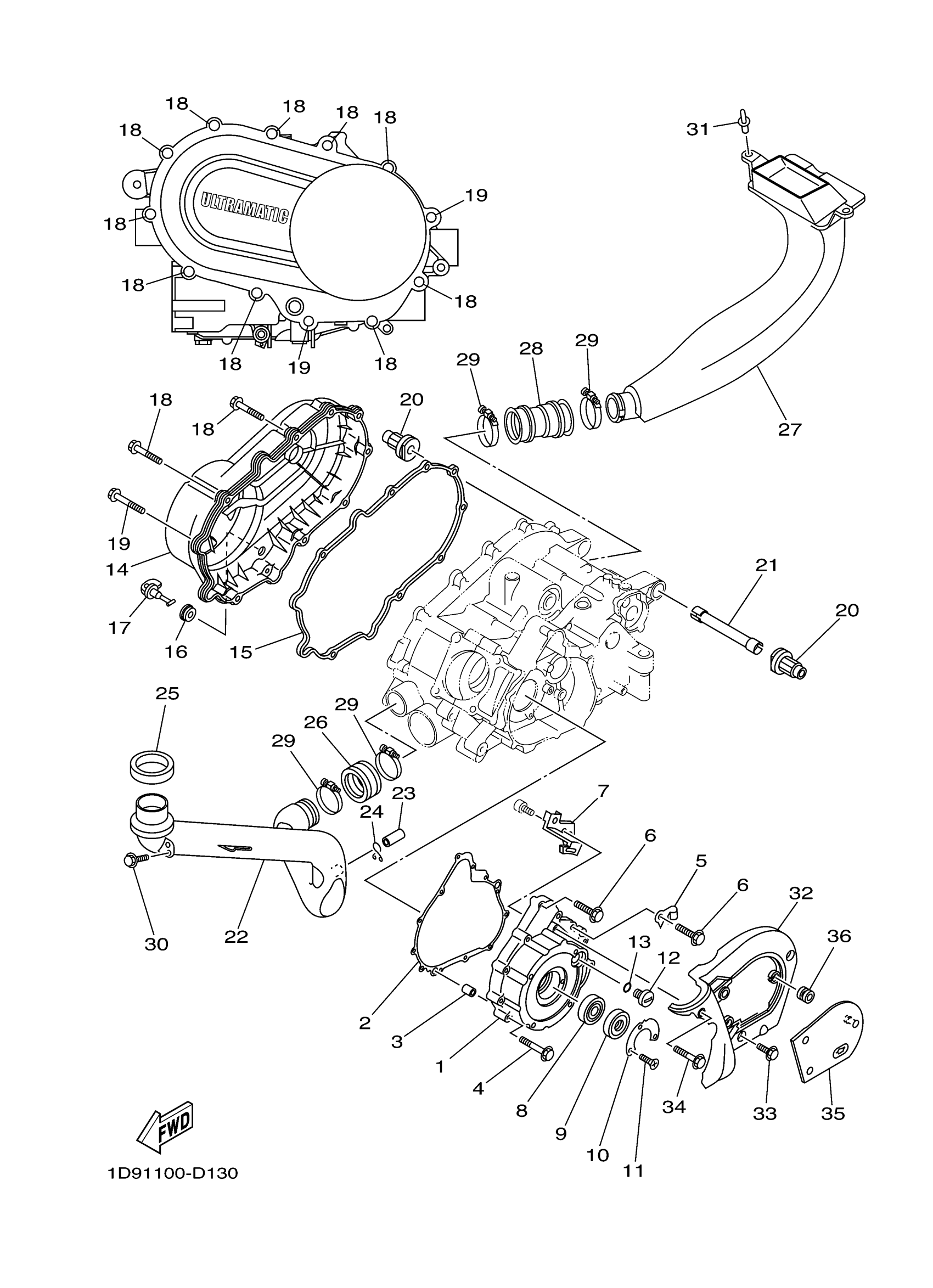

Yamaha YFM45FAV (KODIAK 450 4WD) 1D9B 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5GH-15411-01-00

$267.35

2

GASKET, CRANKCASE COVER 1

5GH-15451-00-00

$19.26

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT, SMALL FLANGE

95027-06040-00

$2.31

5

CLAMP(4MX)

90465-06376-00

$6.59

6

BOLT, SMALL FLANGE

95027-06030-00

$3.40

7

PLATE

5GH-15113-00-00

Unavailable

8

BEARING(55X)

93306-07801-00

$46.93

9

OIL SEAL

93102-28476-00

$18.82

10

WASHER, THRUST

21V-15719-00-00

Unavailable

11

SCREW, COUNTERSUNK (21V)

90151-05023-00

$5.33

12

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$10.83

13

O-RING (2H9)

93210-14369-00

$5.42

14

COVER, CRANKCASE 3

5ND-15431-00-00

Unavailable

15

SEAL, CRANKCASE

5GH-15379-00-00

$34.08

16

GROMMET (462)

90480-13018-00

Unavailable

17

PLUG, DRAIN

5KM-15351-00-00

Unavailable

18

BOLT, FLANGE

95817-06035-00

Unavailable

19

BOLT, FLANGE

95817-06045-00

Unavailable

20

DAMPER, ENGINE MOUNT 3

5GH-15336-00-00

Unavailable

21

SPACER, ENGINE MOUNT

5GH-15317-00-00

Unavailable

22

DUCT,AIR

5ND-E5471-01-00

$166.98

23

PIPE, DRAIN

5BF-1443E-00-00

Unavailable

24

CLIP(62Y)

90467-15M14-00

$3.21

25

SEAL, CLEANER COVER

5ND-E5434-00-00

Unavailable

26

SEAL, AIR DUCT

5ND-E5472-01-00

Unavailable

27

DUCT, AIR

1D9-E5473-00-00

Unavailable

28

SEAL, AIR DUCT

1D9-E5474-00-00

Unavailable

29

HOSE CLAMP ASSY

90450-64004-00

Unavailable

30

BOLT, FLANGE

95817-06014-00

Unavailable

31

RIVET

90269-08813-00

$0.50

32

COVER 2

5ND-E5423-01-00

Unavailable

33

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

34

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

35

COVER

5ND-E5413-00-00

Unavailable

36

GROMMET

90480-13014-00

Unavailable
