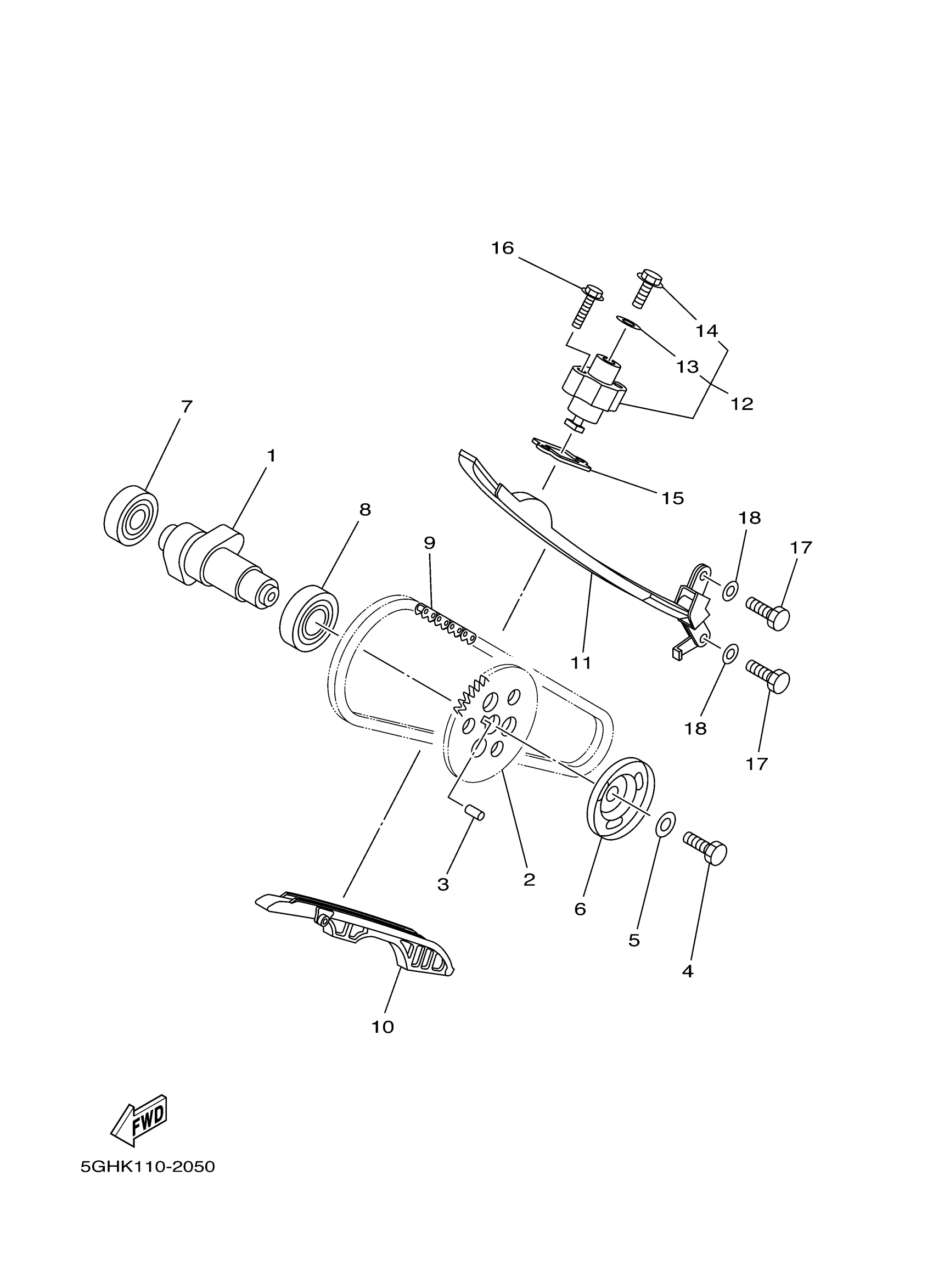

Yamaha YFM45FAT (KODIAK 450 4WD) 1D91 2005 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5GH-12171-01-00

$176.99

2

SPROCKET, CAM CHAIN

5GH-12176-10-00

$50.99

3

PIN,DOWEL (603)

93604-10011-00

$8.49

4

BOLT (583)

90101-10303-00

$9.49

5

WASHER, PLATE (3L6)

90201-10774-00

$9.49

6

PLATE, BREATHER 2

4KB-11145-00-00

$11.99

7

BEARING(3BN)

93306-00438-00

$37.99

8

BEARING (31G)

93306-00515-00

$42.99

9

CHAIN

94582-20116-00

$30.99

10

GUIDE, STOPPER 1

5GH-12231-10-00

$49.99

11

GUIDE, STOPPER 2

5GH-12241-01-00

$64.99

12

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

13

GASKET, TENSIONER

31G-12214-00-00

$14.49

14

PLUG

31G-12222-00-00

$24.99

15

GASKET, TENSIONER CASE

3GD-12213-00-00

$6.99

16

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

17

BOLT, HEXAGON

97017-06016-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable
