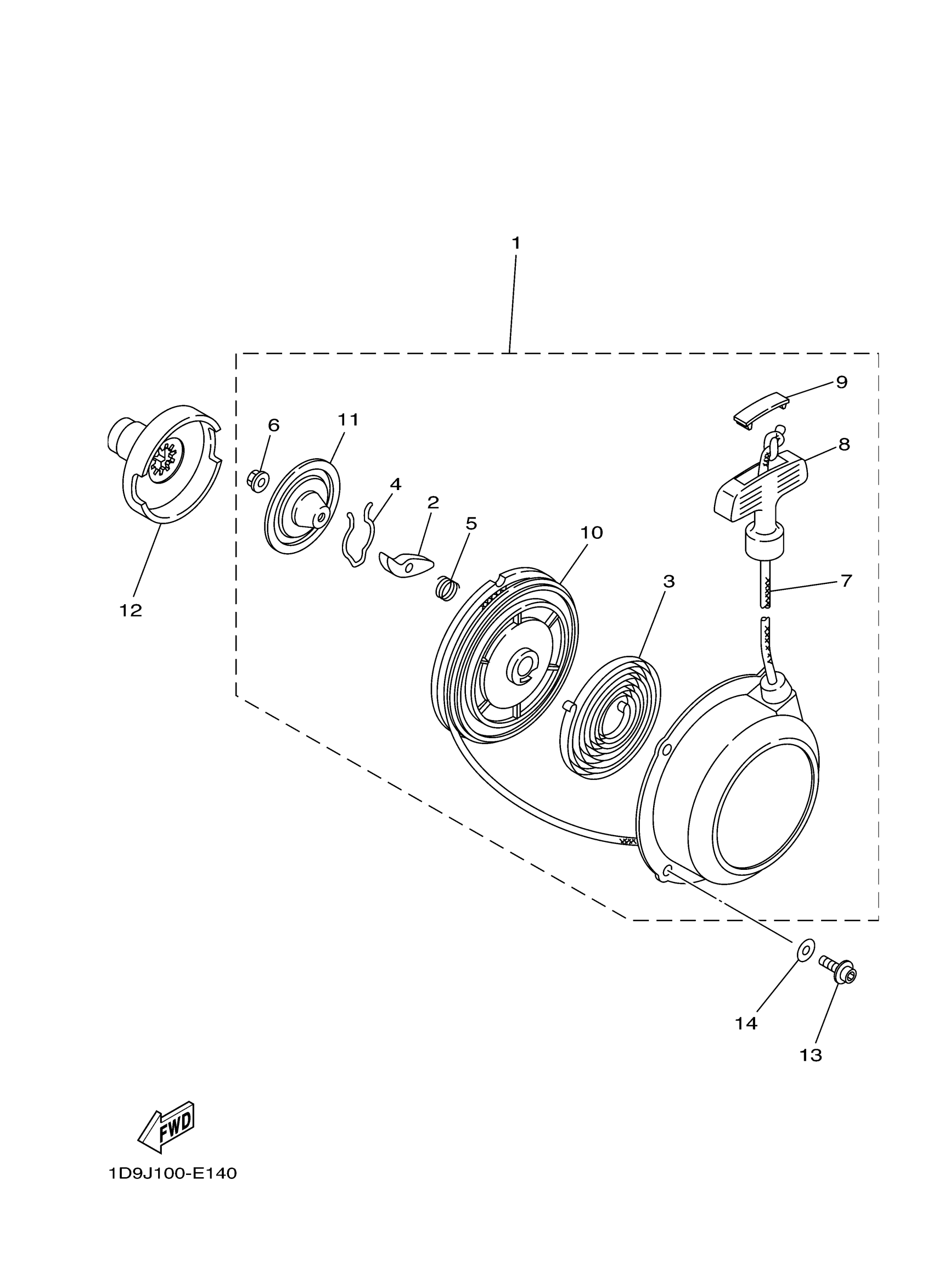

Yamaha YFM45FASEV (KODIAK 450 4WD SPECIAL EDITION) 1D9J 2006 STARTER Diagram

#

Description
Price

1

STARTER ASSY

5UH-15710-01-00

Unavailable

2

PAWL, DRIVE

21V-15741-00-00

$17.98

3

SPRING, STARTER

5UH-15713-00-00

$20.69

4

SPRING, FRICTION

21V-15715-01-00

$10.04

5

SPRING

21V-15767-00-00

$5.90

6

NUT, FLANGE

95702-06500-00

$1.93

7

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

8

HANDLE, STARTER

3X3-15755-00-00

$23.09

9

CAP, KNOB

21V-15779-00-00

$6.03

10

DRUM, SHEAVE

24W-15714-00-00

$47.87

11

PLATE, DRIVE

5UH-15716-00-00

Unavailable

12

PULLEY, STARTER

1UY-15723-00-00

$117.66

13

BOLT(8CP)

97017-06014-00

$4.91

14

WASHER(6TA)

92907-06600-00

$0.73
