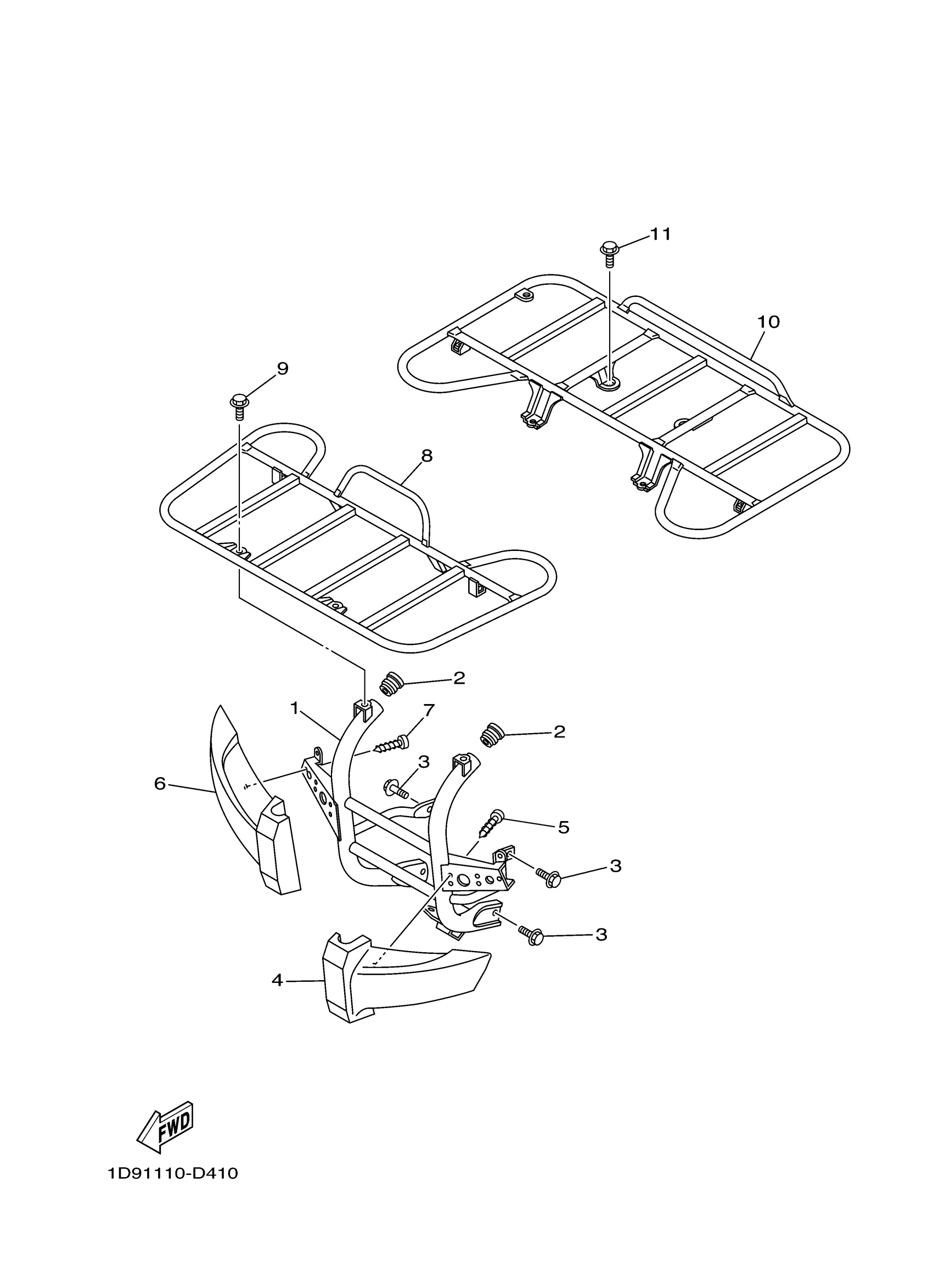

Yamaha YFM45FASEV (KODIAK 450 4WD SPECIAL EDITION) 1D9J 2006 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

1D9-F845N-B1-00

Unavailable

2

CAP

5KM-2482H-01-00

$6.52

3

BOLT, FLANGE

95817-08012-00

$3.71

4

DAMPER 1

1D9-F8415-00-00

Unavailable

5

SCREW, TRUSS TAP.

97707-60016-00

$0.98

6

DAMPER 2

1D9-F8416-00-00

$72.99

7

SCREW, TRUSS TAP.

97707-60016-00

$0.98

8

CARRIER, FRONT

5ND-F4841-01-00

$271.67

9

BOLT, FLANGE

95817-08012-00

$3.71

10

CARRIER, REAR

5ND-F4842-00-00

$294.91

11

BOLT, FLANGE

95817-08012-00

$3.71
