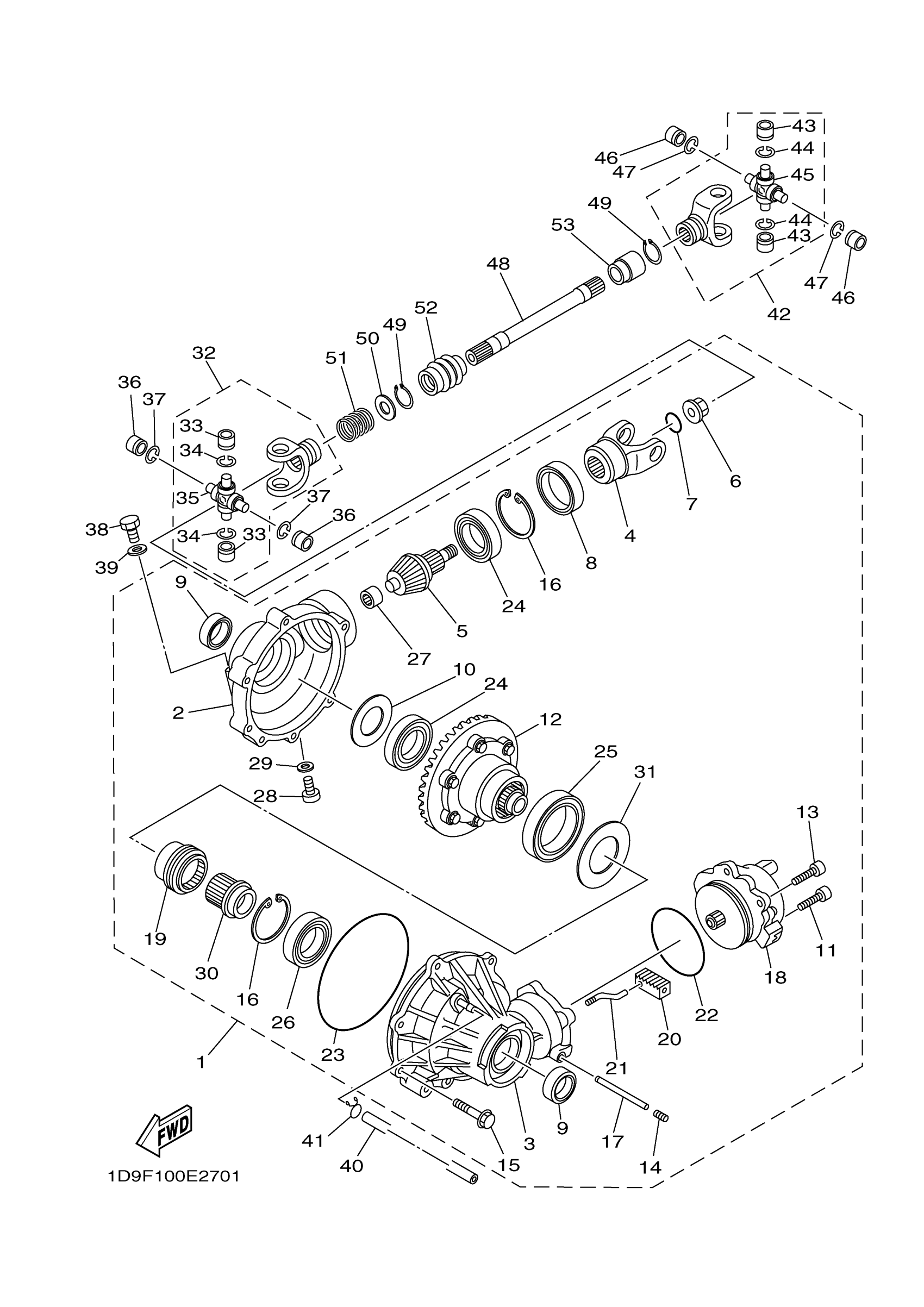

Yamaha YFM45FASEV (KODIAK 450 4WD SPECIAL EDITION) 1D9J 2006 FRONT DIFFERENTIAL Diagram

#

Description
Price

1

FRONT AXLE GEAR CASE COMP.

5KM-46160-07-00

Unavailable

2

HOUSING, SHAFT DRIVE 2

5KM-46161-00-00

$224.99

3

HOUSING, BEARING 2

5KM-46162-00-00

Unavailable

4

YOKE, JOINT 2

5KM-46146-11-00

$165.99

5

PINION, DRIVE 2

5KM-46141-13-00

Unavailable

6

NUT 1

4WV-46145-11-00

$11.99

7

O-RING (2H7)

93210-14359-00

$9.49

8

OIL SEAL

93105-46001-00

$21.99

9

SEAL,OIL 1

3B4-46163-00-00

$18.49

10

SHIM, THRUST

4WV-46119-01-00

$6.99

10

SHIM, THRUST

4WV-46119-11-00

$13.49

10

SHIM, THRUST

4WV-46119-21-00

$6.99

10

SHIM, THRUST

4WV-46119-31-00

$6.99

10

SHIM, THRUST

4WV-46119-41-00

$6.99

10

SHIM, THRUST

4WV-46119-51-00

Unavailable

11

BOLT 1

5KM-46155-00-00

Unavailable

12

LIMITED SLIP DIFF. ASSY

5KM-46470-13-00

Unavailable

13

BOLT, SOCKET

91317-08020-00

Unavailable

14

BOLT, SET

90113-08004-00

Unavailable

15

BOLT 3

4WV-46159-00-00

Unavailable

16

RING,HOLE SNAP 2

5KM-46143-00-00

Unavailable

17

SHAFT

5KM-42752-00-00

Unavailable

18

SERVO MOTOR COMP

5KM-4616A-02-00

Unavailable

19

CLUTCH,DRIVEN

5KM-46441-00-00

Unavailable

20

. SHAFT 2

5KM-18319-00-00

Unavailable

21

FORK, SHIFT 4

5KM-18514-00-00

Unavailable

22

O-RING

93210-82001-00

Unavailable

23

O-RING

93211-40040-00

Unavailable

24

BEARING

93306-00709-00

Unavailable

25

BRG,R-B 6912 85MM 189G NK

93306-91201-00

Unavailable

26

BEARING

93316-00702-00

Unavailable

27

BEARING 4

4WV-46167-00-00

Unavailable

28

PLUG, STRIGHT SCREW(5GH1)

90340-10001-00

Unavailable

29

GASKET

90430-10003-00

Unavailable

30

ADAPTER

5KM-46451-00-00

Unavailable

31

SHIM, THRUST

5KM-46119-01-00

Unavailable

31

SHIM, THRUST

5KM-46119-11-00

Unavailable

31

SHIM, THRUST

5KM-46119-21-00

Unavailable

31

SHIM, THRUST

5KM-46119-31-00

Unavailable

31

SHIM, THRUST

5KM-46119-41-00

Unavailable

31

SHIM, THRUST

5KM-46119-51-00

Unavailable

31

SHIM, THRUST

5KM-46119-61-00

Unavailable

32

CROSS JOINT COMP. 2

5KM-46107-00-00

Unavailable

33

BEARING

93399-99948-00

Unavailable

34

CIRCLIP (4X7)

93440-20088-00

Unavailable

35

SPIDER

5GT-46187-00-00

Unavailable

36

BEARING

93399-99948-00

Unavailable

37

CIRCLIP (4X7)

93440-20088-00

Unavailable

38

PLUG, STRAIGHT(2E9)

90340-14029-00

Unavailable

39

GASKET

214-11198-01-00

Unavailable

40

HOSE

90445-07809-00

Unavailable

41

CLIP (1J7)

90467-07029-00

Unavailable

42

CROSS JOINT COMP. 2

5KM-46107-00-00

Unavailable

43

BEARING

93399-99948-00

Unavailable

44

CIRCLIP (4X7)

93440-20088-00

Unavailable

45

SPIDER

5GT-46187-00-00

Unavailable

46

BEARING

93399-99948-00

Unavailable

47

CIRCLIP (4X7)

93440-20088-00

Unavailable

48

SHAFT, DRIVE 2

5ND-G6173-00-00

Unavailable

49

CIRCLIP(1EY)

99009-19400-00

Unavailable

50

WASHER PLATE 132172160000

90201-20266-00

Unavailable

51

SPRING, COMPRESSION

90501-235L9-00

Unavailable

52

SEAL 1

5GT-46136-00-00

Unavailable

53

SEAL 2

5GT-46137-00-00

Unavailable
