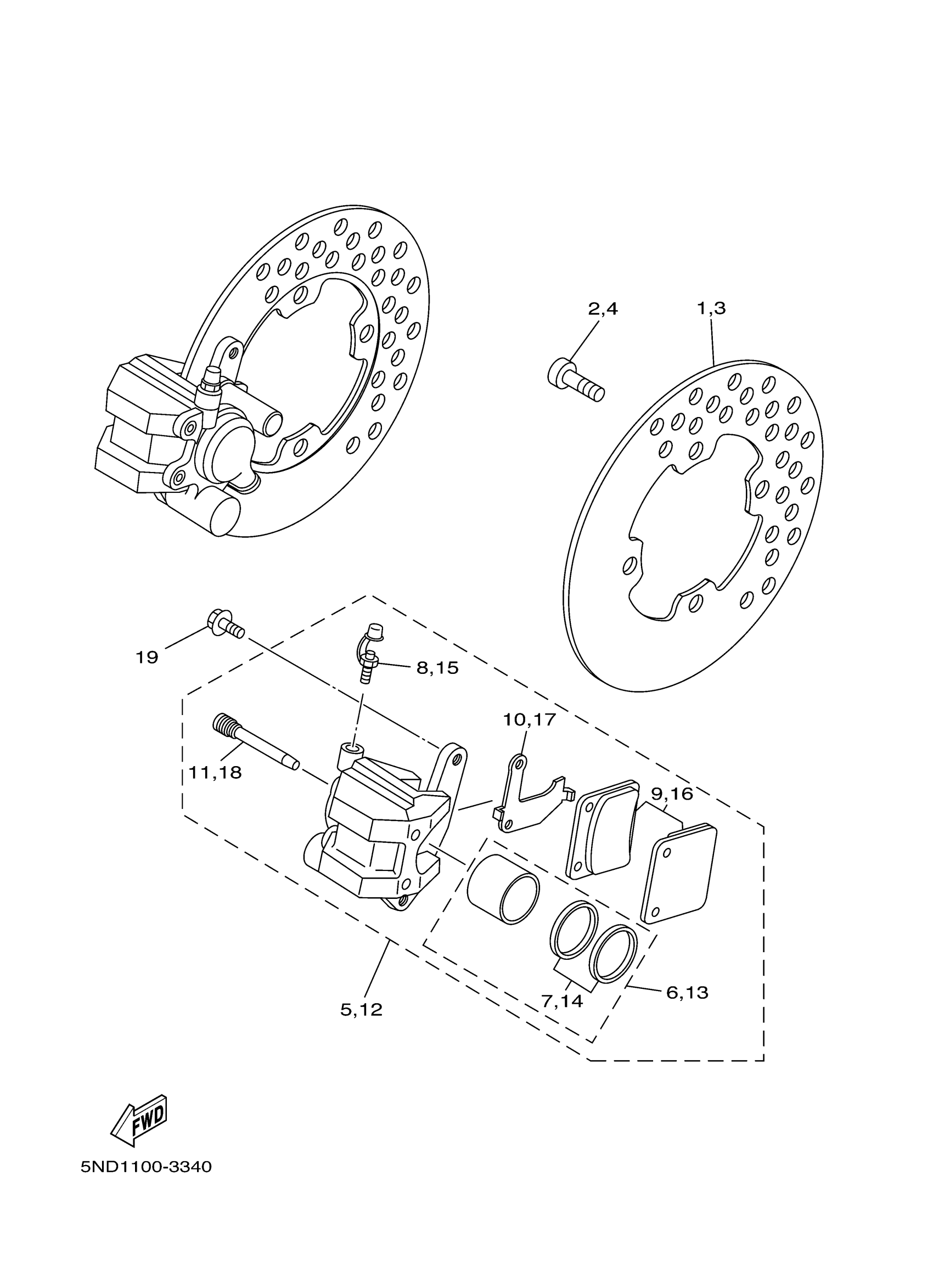

Yamaha YFM45FASEV (KODIAK 450 4WD SPECIAL EDITION) 1D9J 2006 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (FRONT)

5ND-F582T-00-00

Unavailable

BOLT

90109-08087-00

$8.49

DISC, BRAKE (FRONT)

5ND-F582T-00-00

Unavailable

BOLT

90109-08087-00

$8.49

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

SHIM, CALIPER

3GD-25827-00-00

Unavailable

PIN, PAD

3GD-25933-00-00

$28.99

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$298.99

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

SHIM, CALIPER

3GD-25828-00-00

Unavailable

PIN, PAD

3GD-25933-00-00

$28.99

BOLT, WASHER BASED(2XJ)

90105-08520-00

Unavailable
