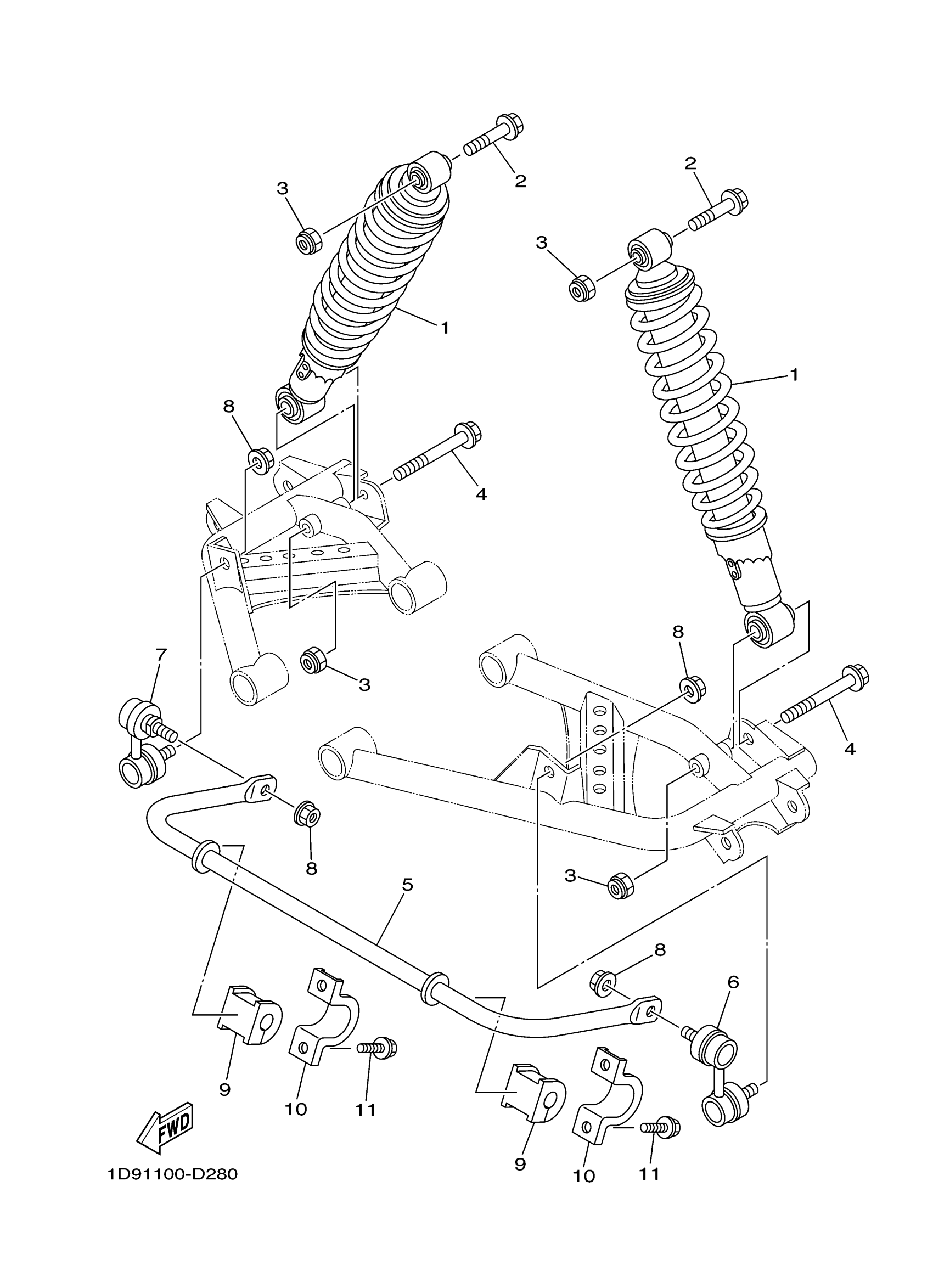

Yamaha YFM45FASET (KODIAK 450 4WD BLACK-CARBON) 1D98 2005 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY, REAR

1D9-F2210-10-00

Unavailable

BOLT, FLANGE

90105-10841-00

$4.29

NUT, SELF-LOCKING

90185-10012-00

$9.49

BOLT, FLANGE

90105-10095-00

$5.60

BAR, STABILIZER

1D9-G7491-00-00

$95.99

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

BUSH, STABILIZER F

1D9-F386G-10-00

Unavailable

COVER, STABILIZER

1D9-F386H-01-00

$9.99

BOLT, FLANGE

95817-08012-00

$5.49
