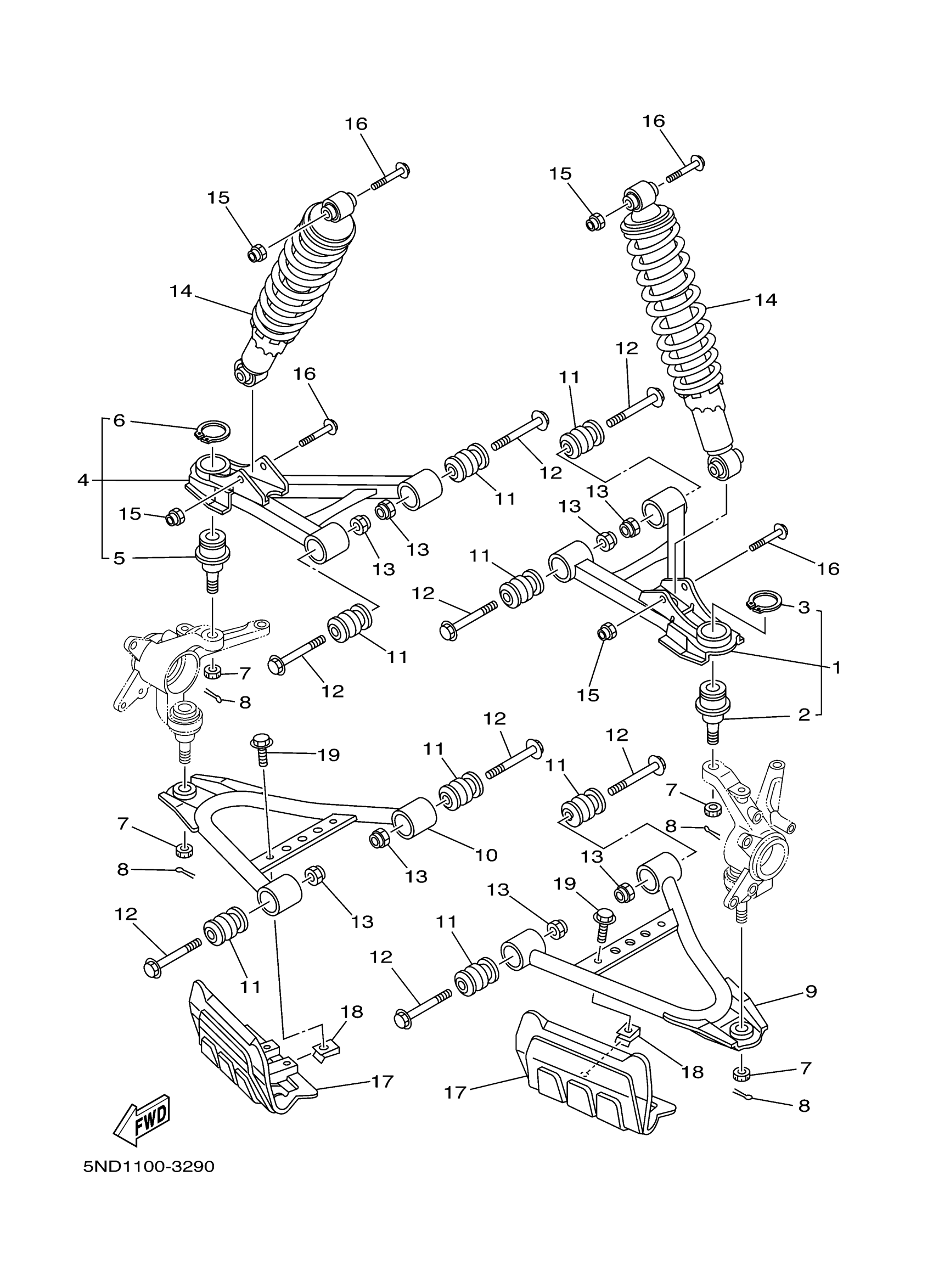

Yamaha YFM45FAS (KODIAK 450 AUTO 4X4) 5ND6 2004 FRONT SUSPENSION WHEEL Diagram

Description

Price

FRT. UPPER ARM (L)

5ND-F3540-13-00

$169.65

BALL JOINT 1

37S-23549-01-00

$64.63

CIRCLIP

93410-32075-00

$6.51

FRT. UPPER ARM (R)

5ND-F3550-13-00

$114.75

BALL JOINT 1

37S-23549-01-00

$64.63

CIRCLIP

93410-32075-00

$6.51

NUT, CASTLE

90171-12001-00

$2.66

PIN, COTTER

91490-25020-00

$2.73

ARM, FR. LWR. LH.

5ND-F357A-01-00

$79.03

ARM, FR. LWR. RH.

5ND-F358A-01-00

$79.03

BUSH

2HR-23526-00-00

$17.03

BOLT, FLANGE

90105-10267-00

$7.23

NUT, SELF-LOCKING

90185-10012-00

$2.78

SHOCK ABSORBER ASSY

5ND-F3350-01-00

Unavailable

NUT, SELF-LOCKING

90185-10012-00

$2.78

BOLT, FLANGE

90105-10841-00

Unavailable

COVER, LOWER 1

5ND-F3123-00-00

$17.03

NUT, SPRING(4ES)

90183-06069-00

$5.69

BOLT, FLANGE

95817-06012-00

Unavailable
