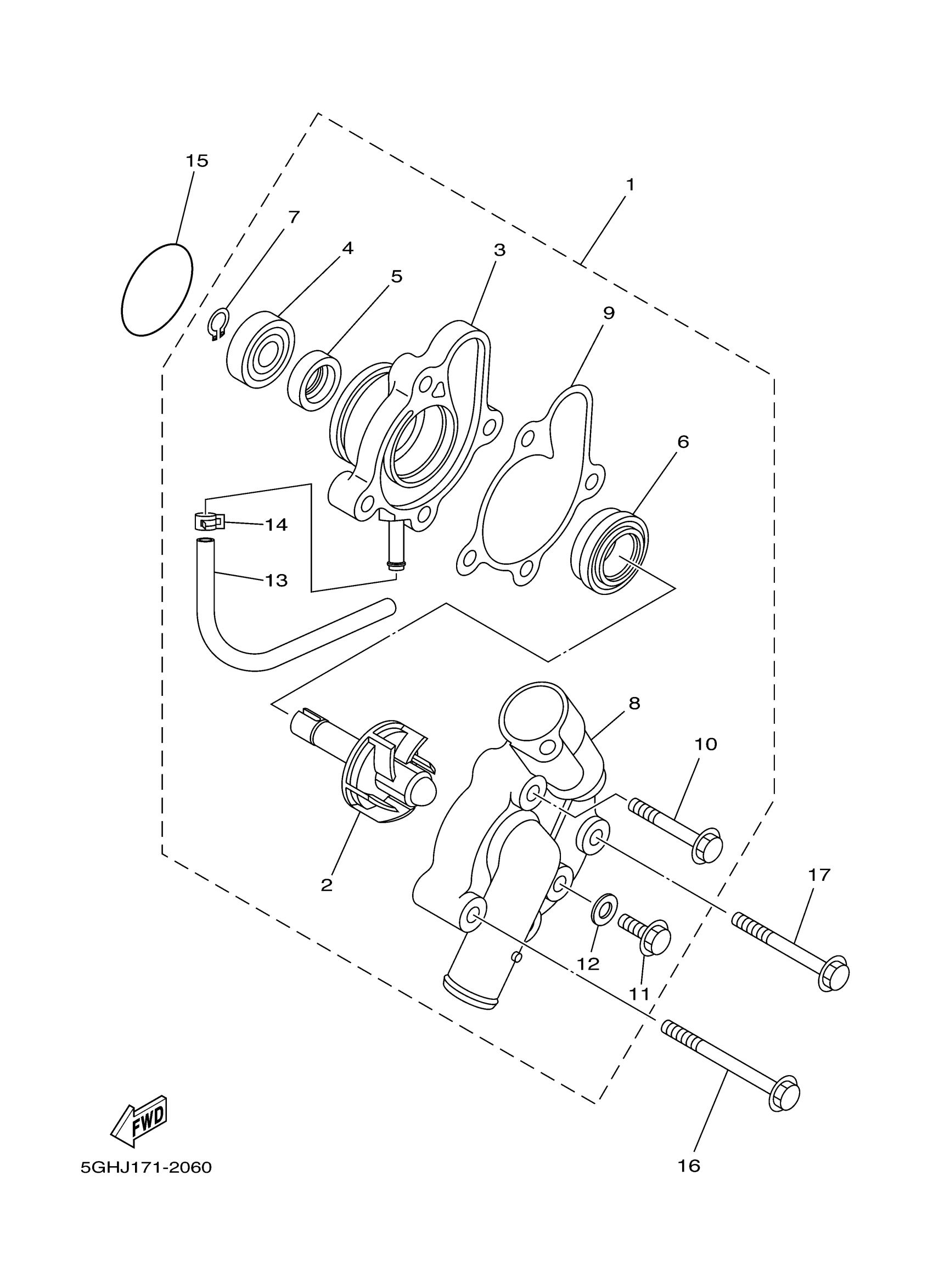

Yamaha YFM45FAHV (KODIAK 450 4WD HUNTER_OUTDOORSMAN) 1D9F 2006 WATER PUMP Diagram

WATER PUMP ASSY

5GH-Y1242-01-00

$307.99

IMPELLER SHAFT ASSY

5CG-12450-00-00

$85.99

HOUSING, WATER PUMP

5GH-12421-01-00

$114.99

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

OIL SEAL (J10)

93101-10090-00

$8.49

SEAL, MECHANICAL

11H-12438-10-00

$62.99

CIRCLIP(10W)

99009-10400-00

$4.73

COVER, HOUSING

5GH-12422-00-00

$101.99

GASKET, HOUSING COVER 2

5GH-12428-00-00

$6.99

. BOLT, FLANGE

90105-06005-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

GASKET 256113960000

90430-06014-00

Unavailable

HOSE(7FK)

90446-04254-00

$8.49

CLIP

90467-06194-00

$2.34

O-RING (626)

93210-33133-00

$2.92

BOLT, SMALL FLANGE

95027-06060-00

Unavailable

BOLT, SMALL FLANGE

95027-06050-00

Unavailable
