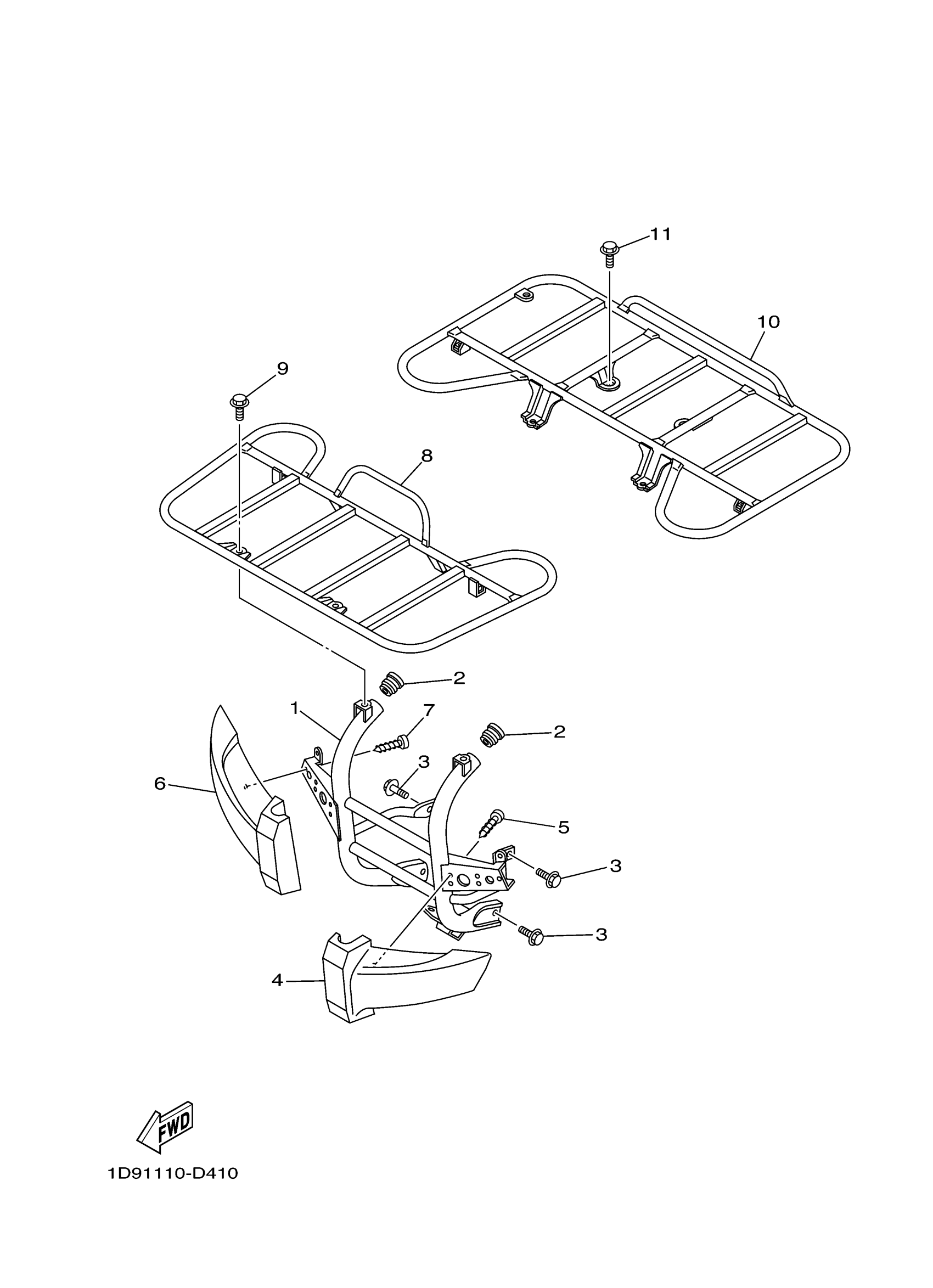

Yamaha YFM45FAHV (KODIAK 450 4WD HUNTER_OUTDOORSMAN) 1D9F 2006 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

1D9-F845N-01-00

Unavailable

2

CAP

5KM-2482H-01-00

$6.65

3

BOLT, FLANGE

95817-08012-00

$3.78

4

DAMPER 1

1D9-F8415-00-00

Unavailable

5

SCREW, TRUSS TAP.

97707-60016-00

$1.49

6

DAMPER 2

1D9-F8416-00-00

$72.99

7

SCREW, TRUSS TAP.

97707-60016-00

$1.49

8

CARRIER, FRONT

5ND-F4841-01-00

$277.39

9

BOLT, FLANGE

95817-08012-00

$3.78

10

CARRIER, REAR

5ND-F4842-00-00

$301.12

11

BOLT, FLANGE

95817-08012-00

$3.78
