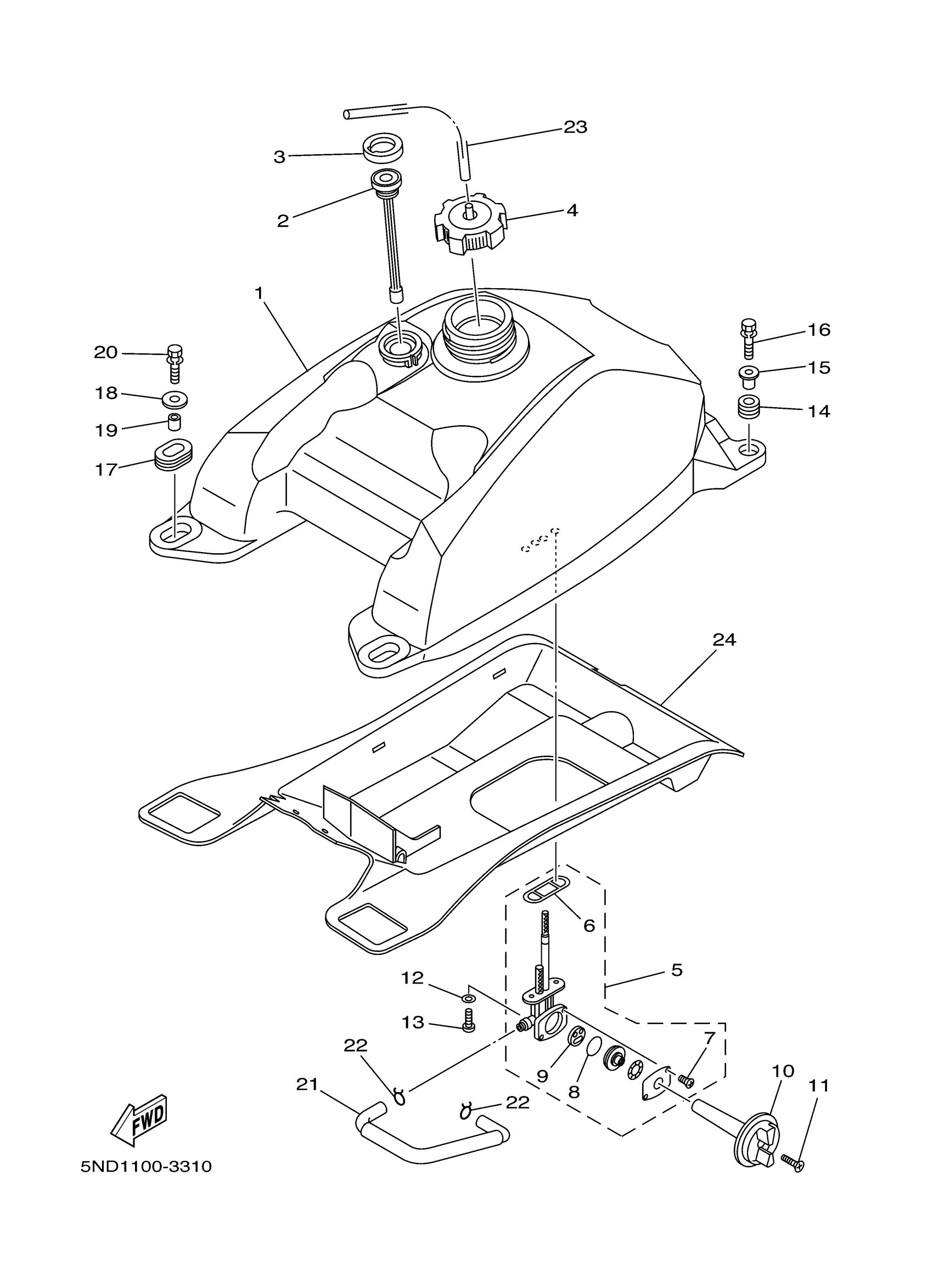

Yamaha YFM45FAHV (KODIAK 450 4WD HUNTER_OUTDOORSMAN) 1D9F 2006 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5ND-F4110-01-00

$470.99

2

FUEL METER ASSY

5GH-24260-11-00

$89.99

3

HOUSING, FUEL METER

4SH-24261-00-00

$17.49

4

CAP ASSY

5KM-24610-00-00

$61.99

5

FUEL COCK ASSY 1

5GH-24500-10-00

$60.99

6

O-RING

4X8-24512-00-00

$8.99

7

SCREW, PAN HEAD

98507-03014-00

Unavailable

8

SEAL, COCK

3AJ-24534-01-00

$10.99

9

VALVE PACKING

3AC-24523-00-00

$12.99

10

LEVER,COCK

1NS-F4524-00-00

$8.99

11

SCREW, FLAT HEAD(3HH)

98707-04018-00

$2.18

12

WASHER, PLATE(3MB)

90202-05187-00

$1.38

13

SCREW 256241430000

90149-06011-00

$5.60

14

GROMMET (4V1)

90480-18290-00

$8.49

15

COLLAR (36R)

90387-066J1-00

$8.49

16

BOLT, WITH WASHER

90119-06883-00

Unavailable

17

GROMMET(38W)

90480-01400-00

Unavailable

18

WASHER, PLATE

90201-06090-00

Unavailable

19

COLLAR (1T2)

90387-07598-00

Unavailable

20

BOLT, WITH WASHER

90119-06883-00

Unavailable

21

PIPE, FUEL 1

3C2-F4311-00-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

HOSE

90445-088C5-00

Unavailable

24

DAMPER, PLATE 1

5ND-F414H-10-00

Unavailable
