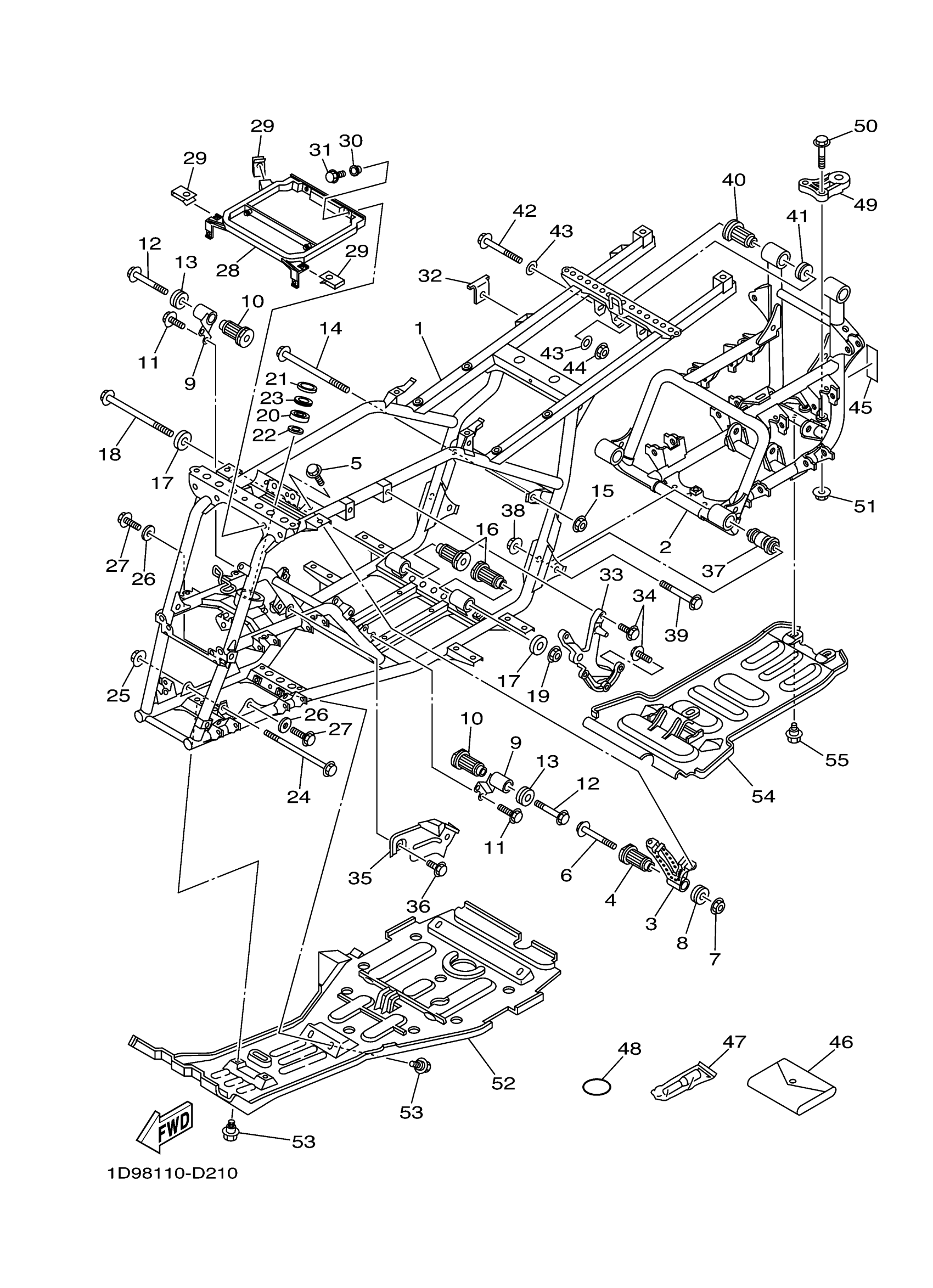

Yamaha YFM45FAHV (KODIAK 450 4WD HUNTER_OUTDOORSMAN) 1D9F 2006 FRAME Diagram
#
1
FRAME COMP.
1D9-F1110-02-00
Unavailable
2
FRAME SUB COMP.
1D9-F111B-11-00
Unavailable
3
STAY, ENGINE 2
5ND-F1315-01-00
Unavailable
4
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
9
STAY, ENGINE 3
5ND-F1316-01-00
Unavailable
10
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
14
BOLT, WASHER BASED
90105-10055-00
Unavailable
16
DAMPER, ENGINE MOUNT 3
5ND-E5336-00-00
Unavailable
17
DAMPER
5ND-F1488-00-00
Unavailable
18
BOLT, WASHER BASED
90105-10055-00
Unavailable
20
BEARING
93306-203YN-00
Unavailable
21
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
22
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
23
HOLDER, BEARING
2GU-23872-00-00
Unavailable
24
BOLT, HEXAGON BASED WASHER.
90105-10051-00
Unavailable
26
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
27
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
28
STAY, FENDER 1
5ND-F1513-00-00
Unavailable
29
NUT, SPRING(4ES)
90183-06069-00
Unavailable
30
COLLAR (8G8)
90387-06681-00
Unavailable
31
BOLT, FLANGE
95817-06012-00
Unavailable
32
STAY, MUFFLER 2
5ND-F1446-01-00
Unavailable
33
ARM
5ND-F1585-01-00
Unavailable
34
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
35
PROTECTOR 1
5ND-F2825-00-00
Unavailable
36
BOLT, FLANGE
95817-06010-00
Unavailable
37
BUSH 1
5ND-F2123-00-00
Unavailable
38
NUT, U FLANGE
95607-12200-00
Unavailable
39
BOLT, WASHER BASED(3XV)
90105-12660-00
Unavailable
40
DAMPER, ENGINE MOUNT 3
1D9-E5336-00-00
Unavailable
42
BOLT, WASHER BASED(4HM)
90105-10737-00
Unavailable
43
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
45
LABEL 7
5ND-F151K-00-00
Unavailable
46
TOOL KIT
5ND-F8100-00-00
Unavailable
47
GAUGE, AIR
1NV-2811A-01-00
Unavailable
48
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
49
HOOK
1D9-F8488-01-00
Unavailable
50
BOLT, WASHER BASED(3YR)
90105-10669-00
Unavailable
52
GUARD, ENGINE 1
5ND-F147A-03-00
Unavailable
53
BOLT(3KJ)
90109-063F1-00
Unavailable
54
GUARD COMP.
1D9-F840K-01-00
Unavailable
55
BOLT(3KJ)
90109-063F1-00
Unavailable
