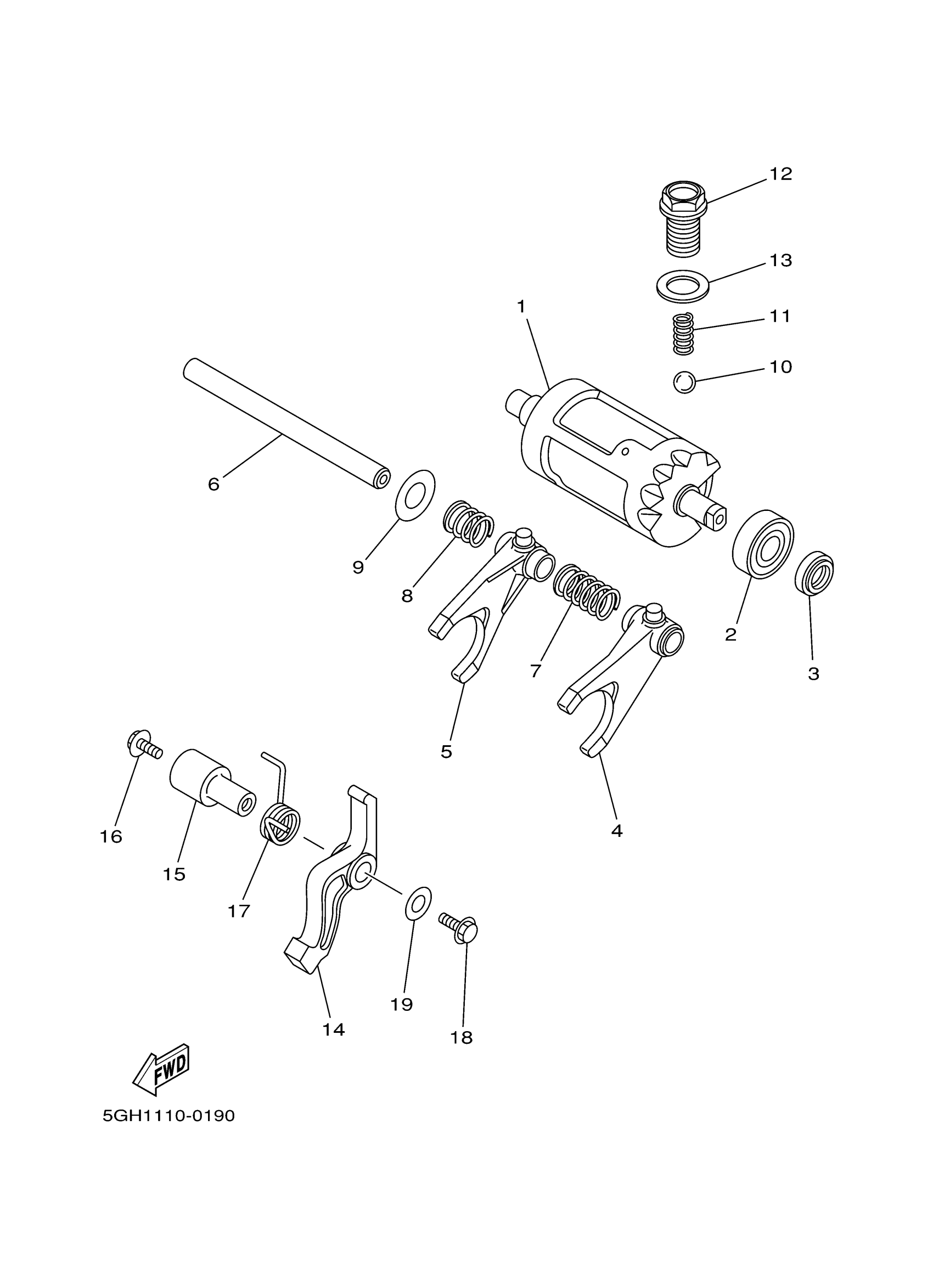

Yamaha YFM45FAHS (KODIAK 450 4X4 HARDWOODS) 5NDC 2004 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

5ND-18540-00-00

Unavailable

2

BEARING(36F)

93306-00208-00

Unavailable

3

OIL SEAL (3X3)

93102-15212-00

$9.49

4

FORK, SHIFT 1

5GH-18511-00-00

Unavailable

5

FORK, SHIFT 2

5GH-18512-00-00

Unavailable

6

BAR, SHIFT FORK GUIDE 1

4KB-18531-01-00

Unavailable

7

SPRING, COMPRESSION

90501-13001-00

Unavailable

8

SPRING, COMPRESSION

90501-166L4-00

Unavailable

9

WASHER PLATE 278156130000

90201-15234-00

$8.49

10

BALL

93503-08007-00

$4.15

11

SPRING, COMPRESSION (465)

90501-10353-00

$9.49

12

BOLT, WASHER BASED(59V)

90105-14367-00

$11.49

13

GASKET 256131670000

90430-14043-00

$8.49

14

LEVER, STOPPER

5GH-18148-00-00

Unavailable

15

SHAFT, STOPPER

5GH-1812E-00-00

Unavailable

16

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

17

SPRING, TORSION

90508-235B7-00

Unavailable

18

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

19

WASHER, PLATE

90201-06020-00

Unavailable
