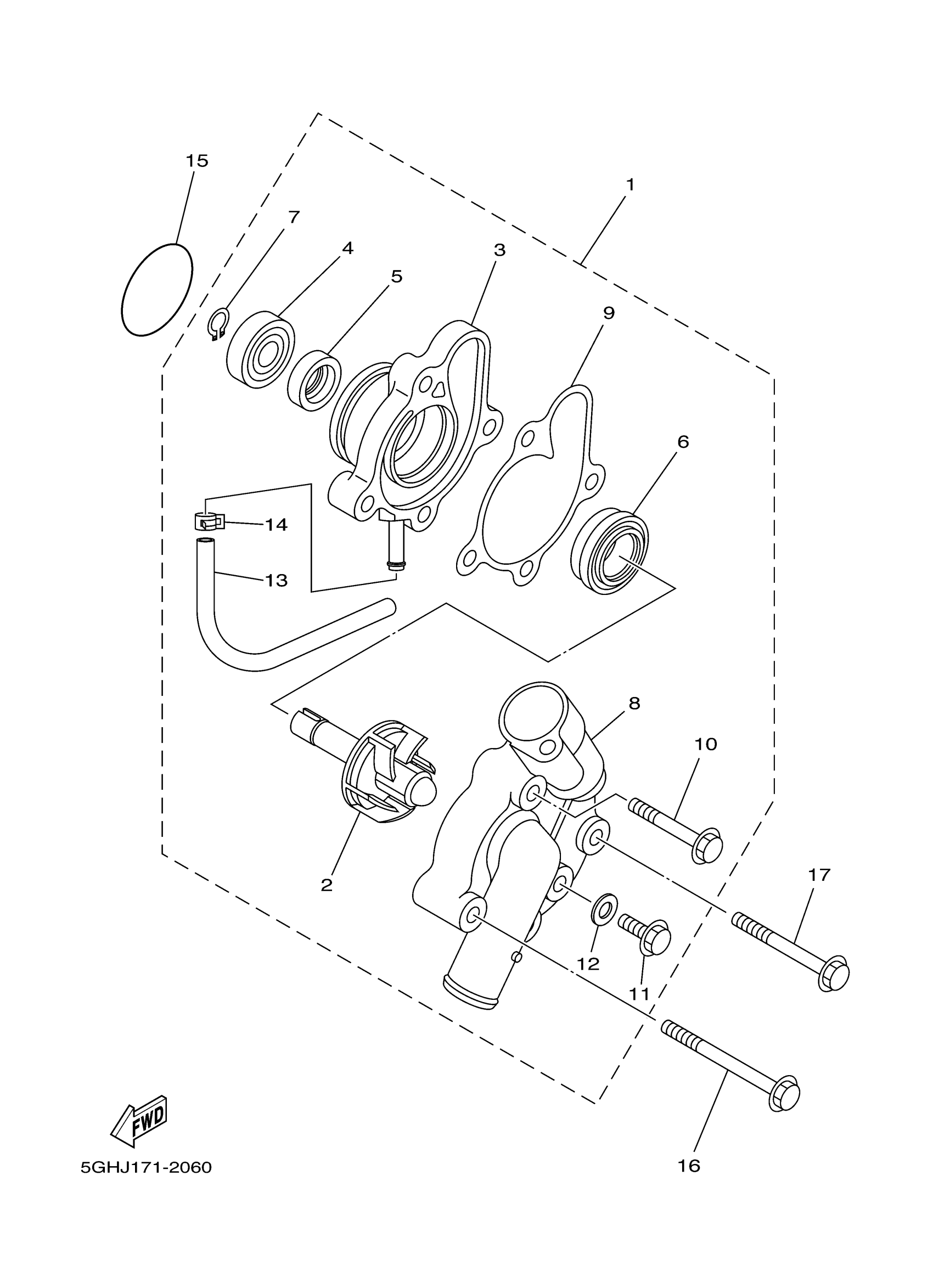

Yamaha YFM450PHEH (GRIZZLY 450 EPS HUNTING) 2LC5 2014 WATER PUMP Diagram

Description

Price

WATER PUMP ASSY

5GH-Y1242-01-00

$249.91

IMPELLER SHAFT ASSY

5CG-12450-00-00

$78.61

HOUSING, WATER PUMP

5GH-12421-01-00

$94.99

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$30.52

OIL SEAL (J10)

93101-10090-00

$5.75

SEAL, MECHANICAL

11H-12438-10-00

$48.82

CIRCLIP(10W)

99009-10400-00

$3.65

COVER, HOUSING

5GH-12422-00-00

$94.59

GASKET, HOUSING COVER 2

5GH-12428-00-00

$5.25

. BOLT, FLANGE

90105-06086-00

$3.52

BOLT, FLANGE

95022-06012-00

$2.80

GASKET 256113960000

90430-06014-00

Unavailable

HOSE(7FK)

90446-04254-00

$6.39

CLIP

90467-06194-00

$1.24

O-RING (626)

93210-33133-00

$2.81

BOLT, FLANGE

95022-06060-00

Unavailable

BOLT, FLANGE

95022-06050-00

Unavailable
