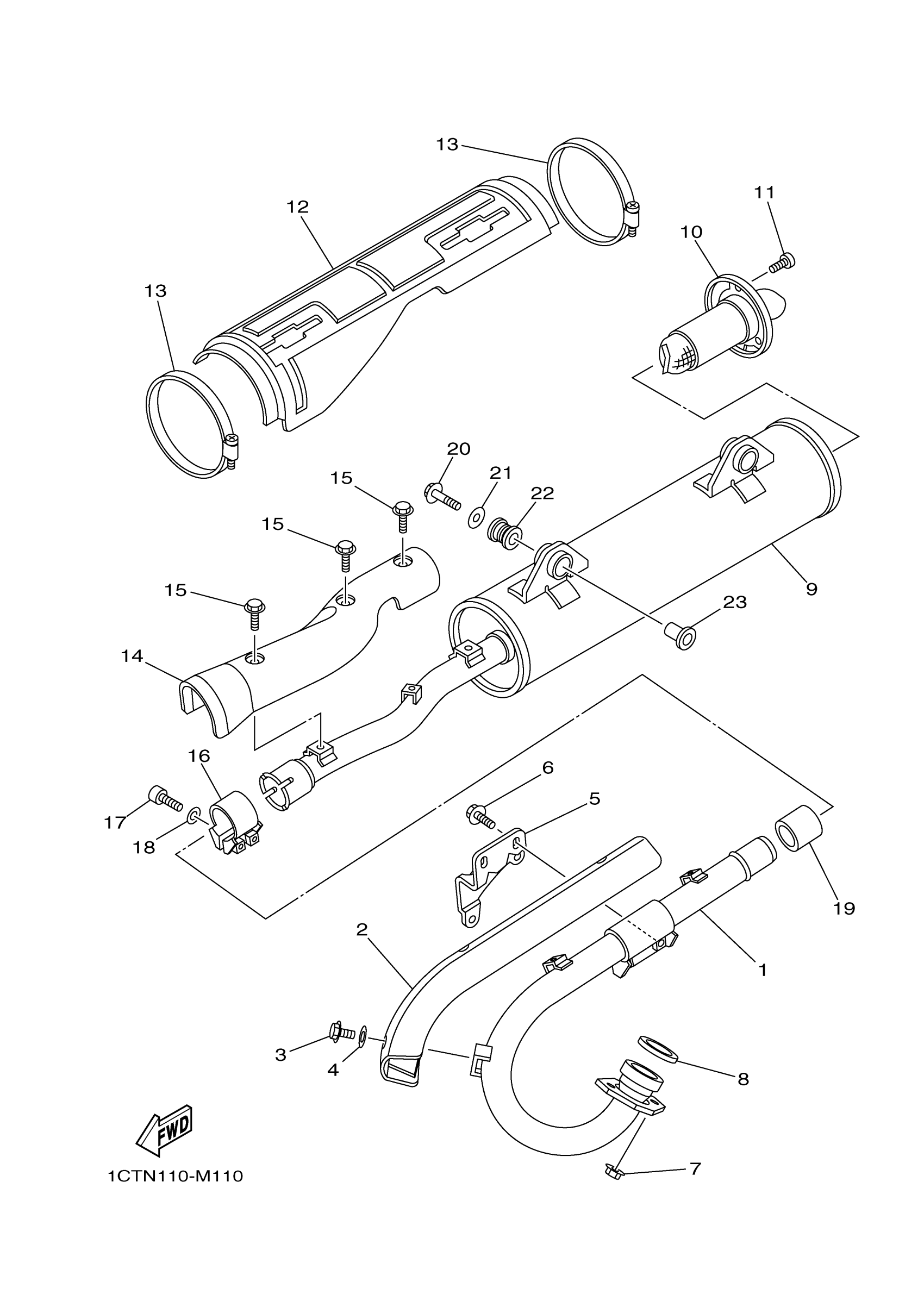

Yamaha YFM450PER (GRIZZLY 450 EPS) 2LC11 2014 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5ND-E4611-00-00

Unavailable

2

PROTECTOR, EXHAUST

5ND-E4628-00-00

$70.99

3

BOLT, FLANGE

95817-06010-00

$4.73

4

WASHER, PLATE

90201-06M02-00

Unavailable

5

PLATE 1

5ND-E477K-02-00

$15.49

6

BOLT, FLANGE

95817-06016-00

$2.75

7

NUT (22U)

90179-08410-00

$9.49

8

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

9

MUFFLER 1

5ND-E4711-00-00

Unavailable

10

PIPE, OUTLET

5ND-E4752-00-00

$119.99

11

BOLT,SOCKET

91380-06010-00

$8.49

12

PROTECTOR, MUFFLER 1

5ND-E4718-00-00

Unavailable

13

BAND, SILENCER

5ND-E4788-00-00

Unavailable

14

PROTECTOR, MUFFLER

5ND-E4728-00-00

$57.99

15

BOLT, FLANGE

95817-06008-00

$8.49

16

BAND, MUFFLER

5ND-E4715-00-00

Unavailable

17

BOLT

5ND-E4777-00-00

Unavailable

18

WASHER

5ND-E4759-00-00

Unavailable

19

GASKET, MUFFLER

3YF-14714-00-00

Unavailable

20

BOLT, FLANGE

95814-10040-00

Unavailable

21

WASHER, PLATE

90201-10056-00

Unavailable

22

DAMPER, MUFFLER

5ND-E4737-00-00

Unavailable

23

COLLAR (2H7)

90387-10636-00

Unavailable
