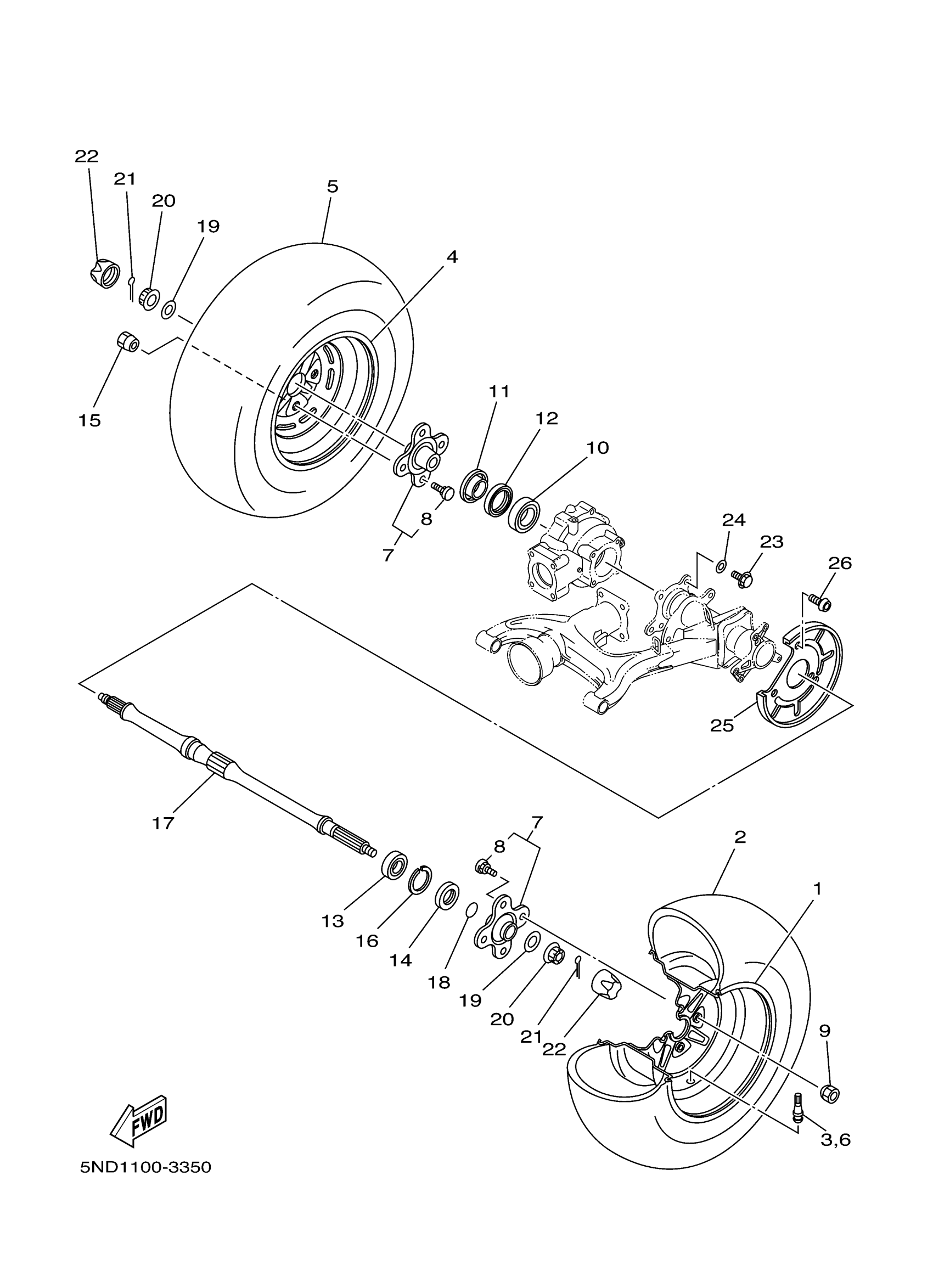

Yamaha YFM450FAR (KODIAK 450 4WD) 5ND1 2003 REAR WHEEL Diagram
#
Description
Price
1
RIM REAR(DARK SILVER 12 X 7.5)
5ND-F5390-01-00
Unavailable
2
AT25X10-12 M912Y
94110-12810-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
RIM REAR(DARK SILVER 12 X 7.5)
5ND-F5390-01-00
Unavailable
5
AT25X10-12 M912Y
94110-12810-00
Unavailable
6
VALVE, RIM
93900-00812-00
Unavailable
8
BOLT
1P0-F5411-00-00
Unavailable
10
BEARING
93306-008Y1-00
Unavailable
16
CIRCLIP
99009-55500-00
Unavailable
17
AXLE, WHEEL
5ND-F5381-01-00
Unavailable
18
O-RING(47X)
93210-27666-00
Unavailable
19
WASHER, PLATE
90201-16804-00
Unavailable
20
NUT, CASTLE
90171-16001-00
Unavailable
21
PIN, COTTER
91490-30030-00
Unavailable
22
CAP, WHEEL
5GT-2512A-00-00
Unavailable
23
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
24
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
25
PROTECTOR, DISK BRAKE
5ND-F5718-00-00
Unavailable
26
BOLT, BUTTON HEAD
92017-06012-00
Unavailable
