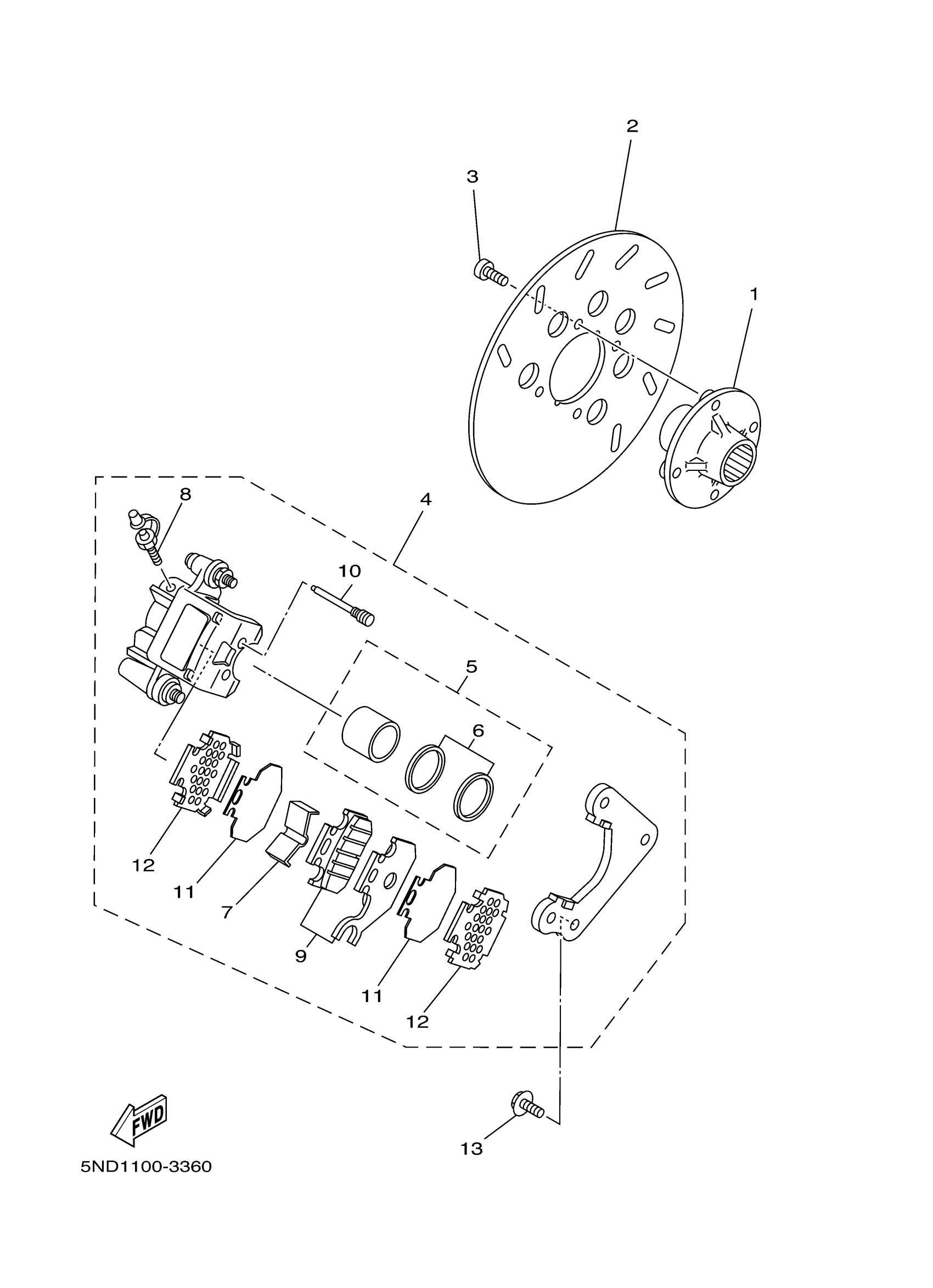

Yamaha YFM450FAR (KODIAK 450 4WD) 5ND1 2003 REAR BRAKE CALIPER Diagram

BRACKET,DISC

5ND-F5712-11-00

Unavailable

DISC, BRAKE (LEFT)

5ND-F5831-10-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

CALIPER ASSY, REAR 1

5GH-2580V-11-00

$470.99

PISTON ASSY, CALIPER

3TB-W0057-00-00

$64.99

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

SUPPORT, PAD

4GY-25919-50-00

Unavailable

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT 2

5GH-W0046-10-00

$42.99

PIN, PAD

5GH-25924-00-00

Unavailable

INSULATOR, HEAT

4GY-22898-50-00

$19.49

SHIM, CALIPER

5GH-25828-00-00

$16.49

BOLT, FLANGE

95817-08014-00

$5.60
